NSN 4210-01-076-8203 A31170016 ITEM 37, A31170016ITEM37, MILH24580
Product Details | FIRE FIGHTING NONMETALLIC HOSE ASSEMBLY
4210-01-076-8203 A length of nonmetallic hose with fire fighting fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC.
Part Alternates: A31170016 ITEM 37, A31170016ITEM37, MILH24580, MIL-H-24580, MIL-H-24580TYBS Z.75XX0FT, MILH24580TYBSZ75XX0FT, T000224305001, 2243051, 224305-1, 4210-01-076-8203, 01-076-8203, 4210010768203, 010768203
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 12 MAY 1979 | 01-076-8203 | 51354 ( HOSE ASSEMBLY, NONMETALLIC, FIRE FIGHTING ) |

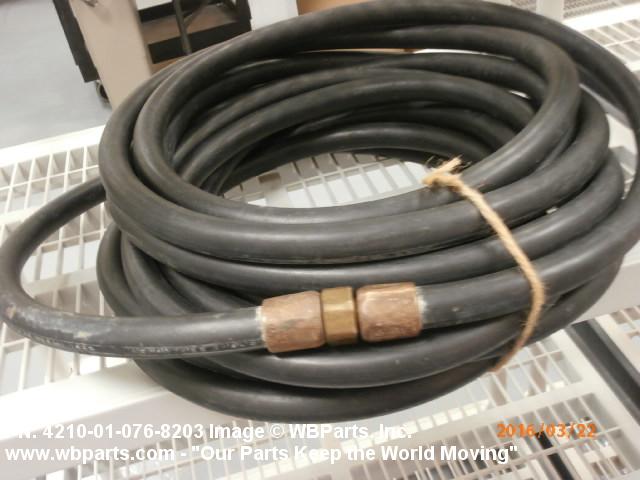

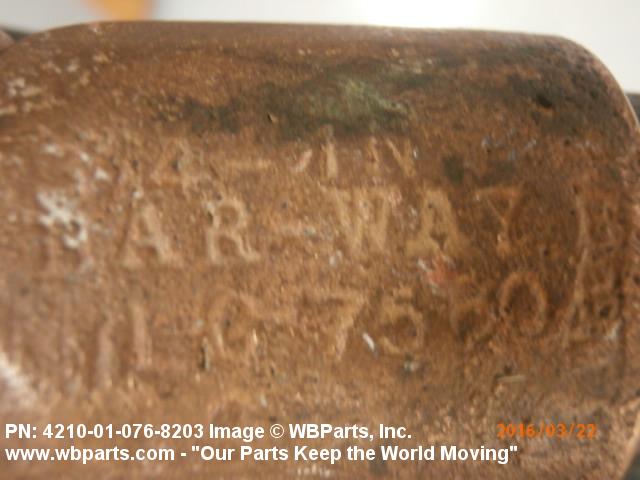

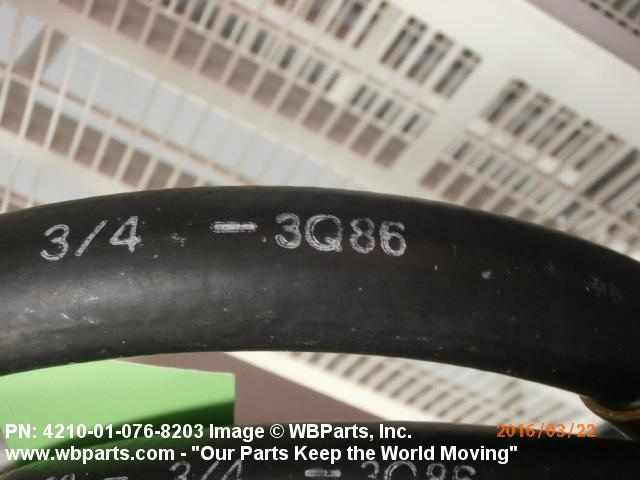

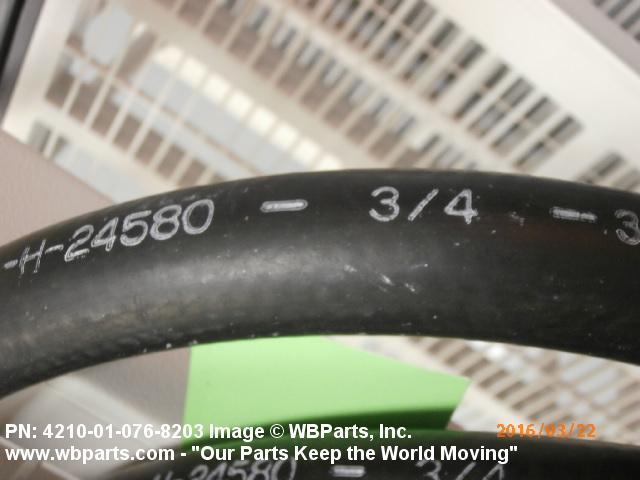

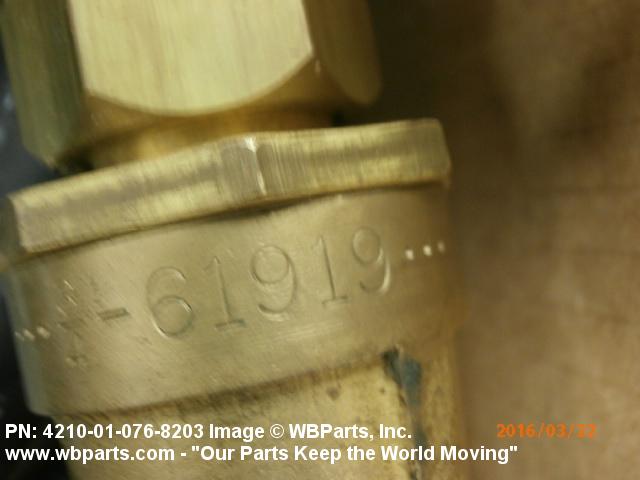

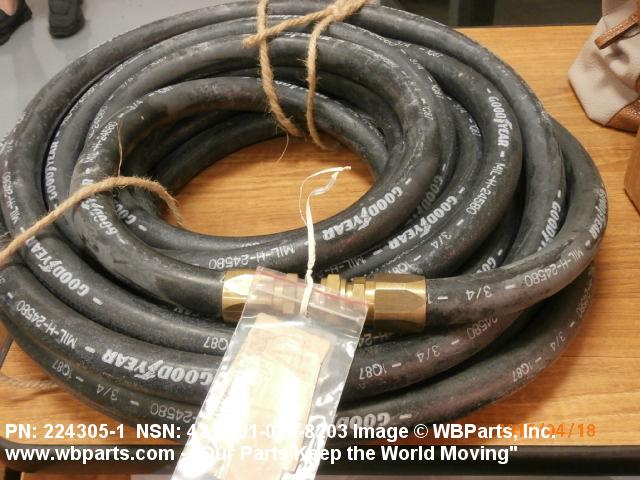

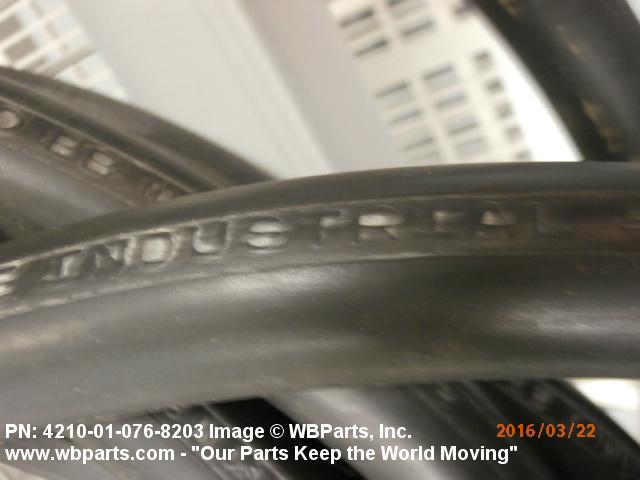

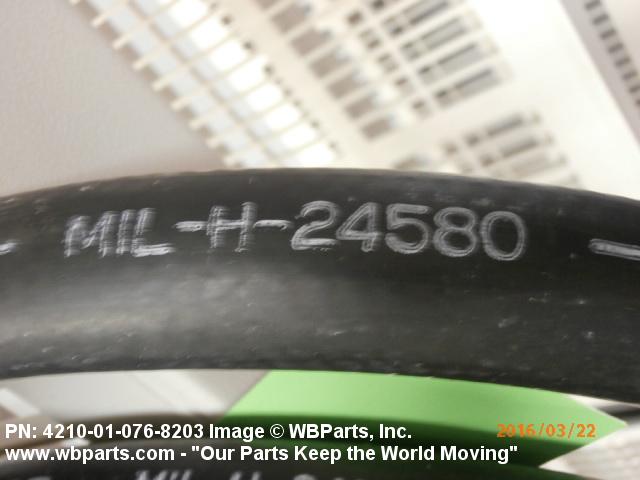

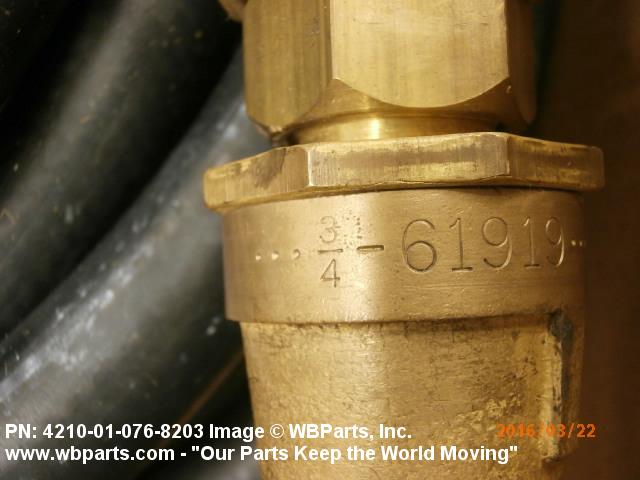

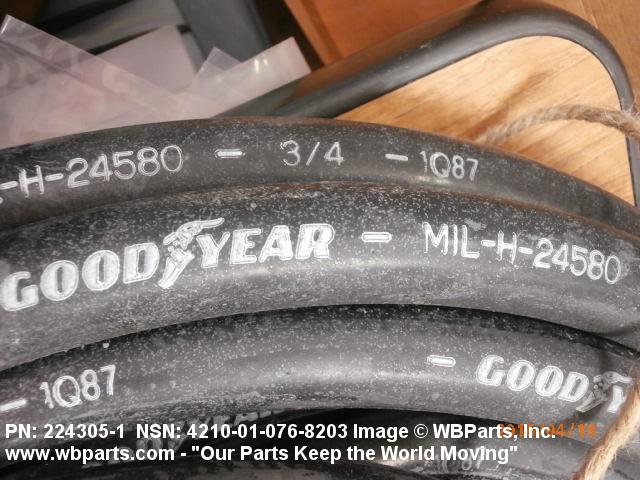

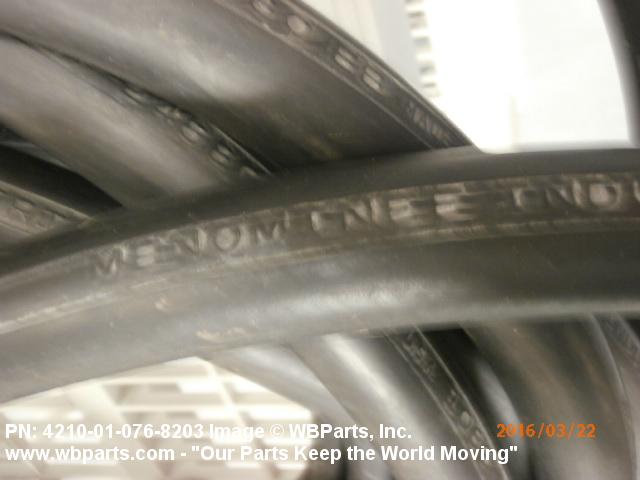

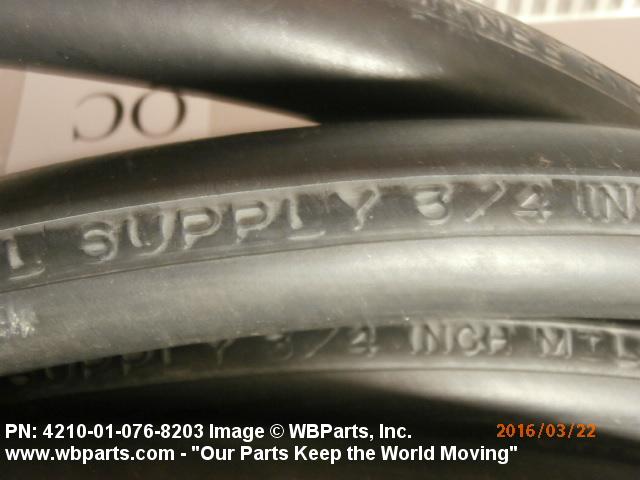

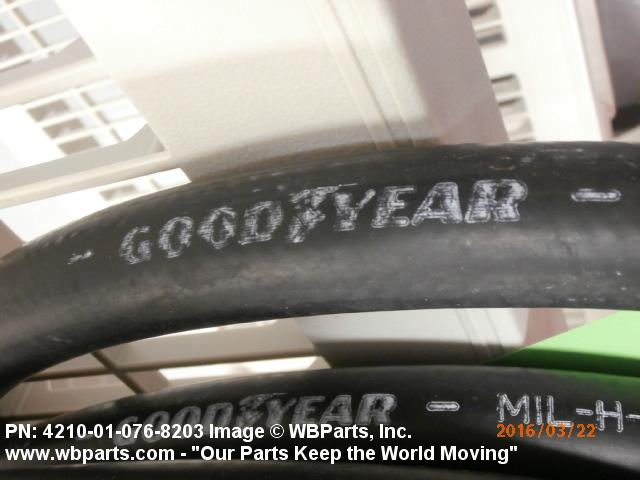

Drawings & Photos | NSN 4210-01-076-8203
Demand History | NSN 4210-01-076-8203
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4210-01-076-8203 | 2024-10-290 | 67 | DIBBS |
| 4210-01-076-8203 | 2024-06-154 | 103 | DIBBS |
| 4210-01-076-8203 | 2023-12-347 | 241 | DIBBS |
| 4210-01-076-8203 | 2023-09-263 | 86 | DIBBS |
| 4210-01-076-8203 | 2023-08-234 | 57 | DIBBS |
| 4210-01-076-8203 | 2022-12-335 | 90 | DIBBS |
| 4210-01-076-8203 | 2022-11-310 | 29 | DIBBS |
| MILH24580TYBSZ75XX0FT | 2022-07-196 | 12 | GU |
| 4210-01-076-8203 | 2021-10-298 | 35 | DIBBS |
| 4210-01-076-8203 | 2021-04-104 | 34 | DIBBS |
| 4210-01-076-8203 | 2021-03-81 | 22 | DIBBS |
| 4210-01-076-8203 | 2021-01-14 | 83 | DIBBS |
| 4210-01-076-8203 | 2020-08-238 | 15 | DIBBS |
| 4210-01-076-8203 | 2020-06-159 | 16 | DIBBS |
| 4210-01-076-8203 | 2020-05-135 | 33 | DIBBS |
| 4210-01-076-8203 | 2020-02-59 | 5 | US |
| 4210-01-076-8203 | 2016-11-318 | 116 | DIBBS |
| 4210-01-076-8203 | 2016-06-167 | 221 | DIBBS |
| 4210-01-076-8203 | 2016-05-123 | 89 | DIBBS |
| 4210-01-076-8203 | 2016-03-91 | 1 | us |
| 4210-01-076-8203 | 2016-03-75 | 1 | DIBBS-RFPs |
| 4210-01-076-8203 | 2016-03-68 | 1 | us |
| 4210-01-076-8203 | 2016-03-68 | 5 | us |
| 4210-01-076-8203 | 2015-10-287 | 419 | DIBBS |
| 4210-01-076-8203 | 2015-09-273 | 342 | DIBBS |
| 4210-01-076-8203 | 2015-08-214 | 201 | DIBBS |
| 4210-01-076-8203 | 2014-10-280 | 451 | DIBBS |
| 4210-01-076-8203 | 2014-07-195 | 160 | DIBBS |
| 4210-01-076-8203 | 2013-06-161 | 50 | DIBBS |
| 4210-01-076-8203 | 2013-03-84 | 22 | DIBBS |
| 4210-01-076-8203 | 2012-10-286 | 23 | DIBBS |
| 4210-01-076-8203 | 2012-10-286 | 41 | DIBBS |
Cross Reference | NSN 4210-01-076-8203
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 224305-1 | 82366 | AERO-MOTIVE COMPANY |
| A31170016 ITEM 37 | 82366 | AERO-MOTIVE COMPANY |
| MIL-H-24580 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-24580TYBS Z.75XX0FT | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| T000224305001 | 82366 | AERO-MOTIVE COMPANY |
| T000224305001 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-01-076-8203
Related Products | NSN 4210-01-076-8203
Technical Data | NSN 4210-01-076-8203
| Characteristic | Specifications |
|---|---|
| HOSE OR TUBING SPEC/STD DATA | MIL-H-24580,TYPE B SPECIFICATION |
| INNER CONVEYING TUBE MATERIAL | RUBBER,ETHYLENE PROPYLENE DIENE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER BRAIDED POLYESTER CORD OR 1ST LAYER ARAMID FIBERS 2ND LAYER BRAIDED POLYESTER CORD OR 2ND LAYER ARAMID FIBERS OUTER LAYER MOLDED RUBBER,ETHYLENE PROPYLENE DIENE |
| OUTER COVERING ENVIRONMENTAL PROTECTION | HEAT RESISTANT |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OUTSIDE DIAMETER | ANY ACCEPTABLE |
| MEASURING METHOD AND LENGTH | 600.000 INCHES NOMINAL WORKING |
| MINIMUM INSIDE BENDING RADIUS | 7.500 INCHES |
| FIRST END CONNECTION TYPE | THREADED INTERNAL HOSE |
| FIRST END STYLE DESIGNATOR | C5 SWIVEL NUT, GASKET SEAL |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING COPPER ALLOY |
| FIRST END THREAD SERIES DESIGNATOR | NH |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 11-1/2 |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL HOSE |
| SECOND END STYLE DESIGNATOR | D5 PLAIN |
| SECOND END CONNECTION DESIGN | STRAIGHT |
| SECOND END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| SECOND END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING COPPER ALLOY |
| SECOND END THREAD SERIES DESIGNATOR | NH |
| SECOND END NOMINAL THREAD SIZE | 0.750 INCHES |
| SECOND END THREAD QUANTITY PER INCH | 11-1/2 |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | 250.0 POUNDS PER SQUARE INCH |
| HYDROSTATIC TEST PRESSURE | 500.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 1000.0 POUNDS PER SQUARE INCH |
| FEATURES PROVIDED | PERFORATED OUTER COVER |
| SPECIAL FEATURES | NONCOLLAPSIBLE |
| SPECIFICATION/STANDARD DATA | 81349-MIL-H-24580/SH/ GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | B TYPE AND 3/4 IN. SIZE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY SIZE,WORKING,PROOF,AND BURST PRESSURES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-24580 |
Restrictions/Controls & Freight Information | NSN 4210-01-076-8203
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 634 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
