NSN 4210-00-372-0854 CS42100021, CS4210-0021, MILE24269
Product Details | FIRE FIGHTING NONMETALLIC HOSE ASSEMBLY
4210-00-372-0854 A length of nonmetallic hose with fire fighting fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC.
Part Alternates: CS42100021, CS4210-0021, MILE24269, MIL-E-24269, MILH16236, MILH24269, MIL-H-24269, MILW16236, 02114, 4210-00-372-0854, 00-372-0854, 4210003720854, 003720854
Fire Fighting, Rescue, and Safety Equipment; and Environmental Protection Equipment and Materials | Fire Fighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | 01 JAN 1961 | 00-372-0854 | 51354 ( HOSE ASSEMBLY, NONMETALLIC, FIRE FIGHTING ) |

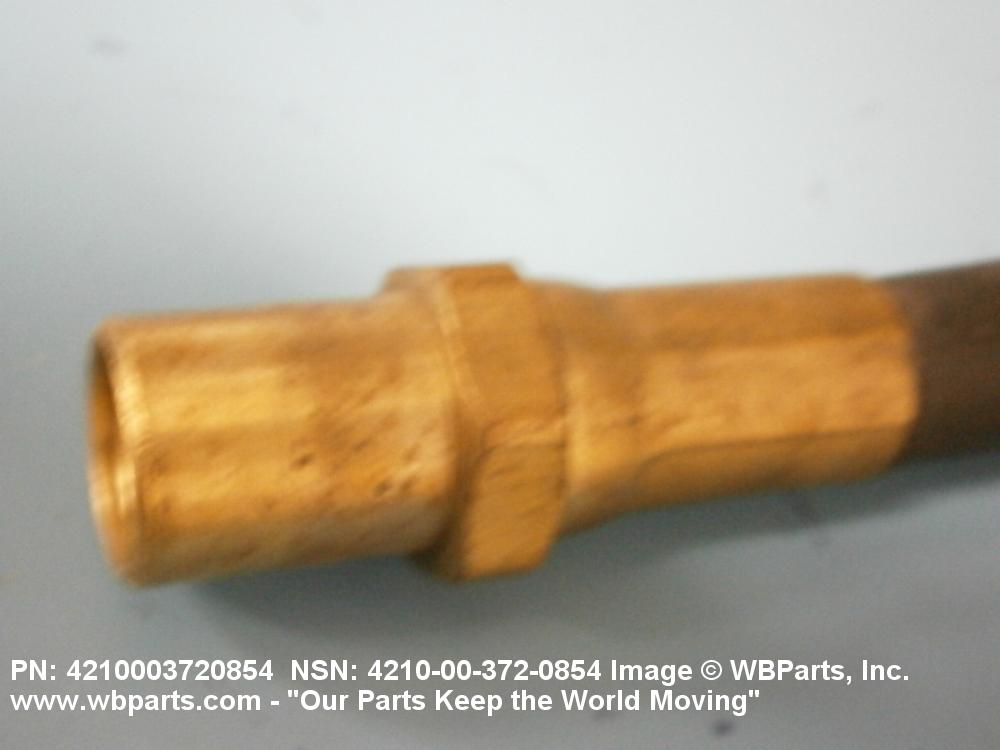

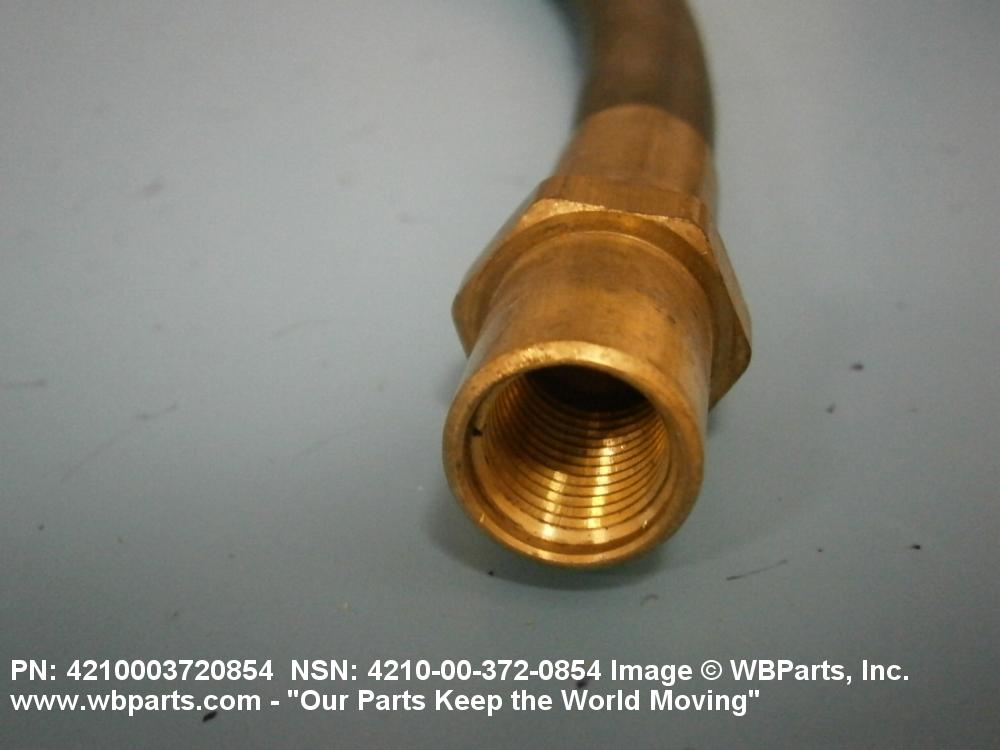

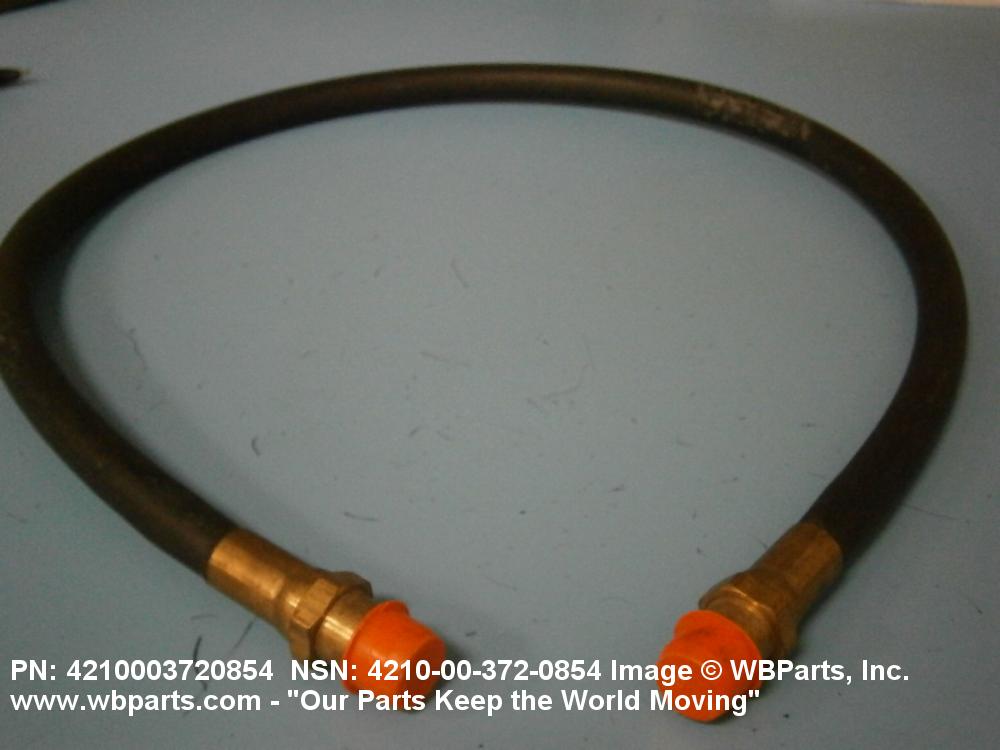

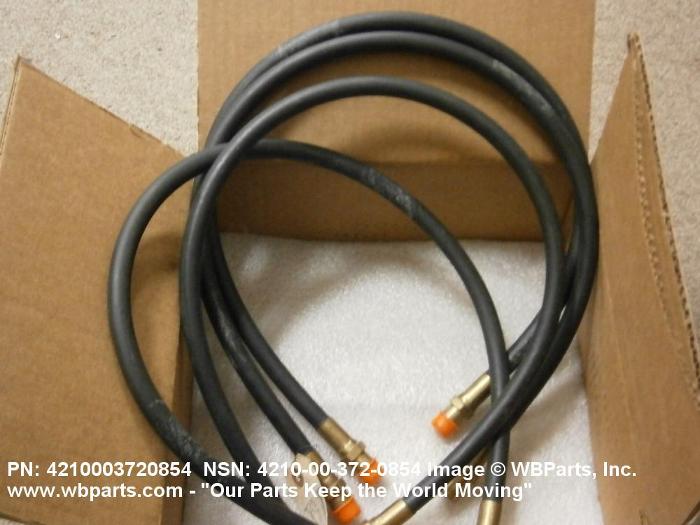

Drawings & Photos | NSN 4210-00-372-0854
Demand History | NSN 4210-00-372-0854
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4210-00-372-0854 | 2022-10-298 | 6 | US |
| MILE24269 | 2021-05-138 | 6 | GE |
| 4210-00-372-0854 | 2014-05-128 | 1 | DIBBS-RFPs |
| 4210-00-372-0854 | 2014-02-56 | 1534 | DIBBS |
| 4210-00-372-0854 | 2013-02-53 | 1330 | DIBBS |
| 4210-00-372-0854 | 2012-05-137 | 2 | United States |
| 4210-00-372-0854 | 2012-05-122 | 1400 | United States |
| 4210-00-372-0854 | 2012-02-48 | 1349 | DIBBS |
| 4210-00-372-0854 | 2011-09-263 | 1322 | DIBBS |
| 4210-00-372-0854 | 2011-02-56 | 1322 | DIBBS |
| 4210-00-372-0854 | 2010-09-267 | 392 | DIBBS |
| 4210-00-372-0854 | 2010-02-36 | 1264 | DIBBS |
Cross Reference | NSN 4210-00-372-0854
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02114 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| CS4210-0021 | 16236 | DLA LAND AND MARITIME |
| MIL-E-24269 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-24269 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILH16236 | 15182 | JARVIS ENGINEERING CO |
| MILH16236 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILW16236 | 15182 | JARVIS ENGINEERING CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4210-00-372-0854
Related Products | NSN 4210-00-372-0854
Technical Data | NSN 4210-00-372-0854
| Characteristic | Specifications |
|---|---|
| INNER CONVEYING TUBE MATERIAL | RUBBER, CHLOROPRENE |
| MEDIA FOR WHICH DESIGNED | CARBON DIOXIDE |
| INSIDE SURFACE CONDITION | SMOOTH |
| LAYER COMPOSITION AND LOCATION | 1ST LAYER RUBBER IMPREGNATED FABRIC 2ND LAYER BRAIDED STEEL WIRE OUTER LAYER MOLDED RUBBER, CHLOROPRENE |
| EXTERIOR COLOR | ANY ACCEPTABLE |
| CROSS-SECTIONAL SHAPE STYLE | 1 ROUND |
| INSIDE DIAMETER | 0.312 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 34.000 INCHES NOMINAL EXCLUDING END FITTINGS |
| MINIMUM INSIDE BENDING RADIUS | NOT RATED |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | C16 PLAIN |
| FIRST END CONNECTION DESIGN | STRAIGHT |
| FIRST END SWIVEL ACTION CAPABILITY | NOT INCLUDED |
| FIRST END FITTING/COMPONENT AND MATERIAL | COMPLETE FITTING COPPER ALLOY |
| FIRST END THREAD SERIES DESIGNATOR | NPS |
| FIRST END NOMINAL THREAD SIZE | 0.250 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 18 |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP RATING | NOT RATED |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| HYDROSTATIC TEST PRESSURE | 1700.0 POUNDS PER SQUARE INCH |
| BURST TEST PRESSURE | 2500.0 POUNDS PER SQUARE INCH |
| III FSC APPLICATION DATA | EXTINGUISHER FIRE,CARBON DIOXIDE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-24269 |
Restrictions/Controls & Freight Information | NSN 4210-00-372-0854
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 195040 | WASTE:HOSE FABRIC RUBR COMB |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 796 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4210-00-372-0854
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
