NSN 4030-00-833-0480 00-833-0480, 008330480
Product Details | SHACKLE
4030-00-833-0480 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: 4030-00-833-0480, 00-833-0480, 4030008330480, 008330480
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 00-833-0480 | 11074 ( SHACKLE ) |

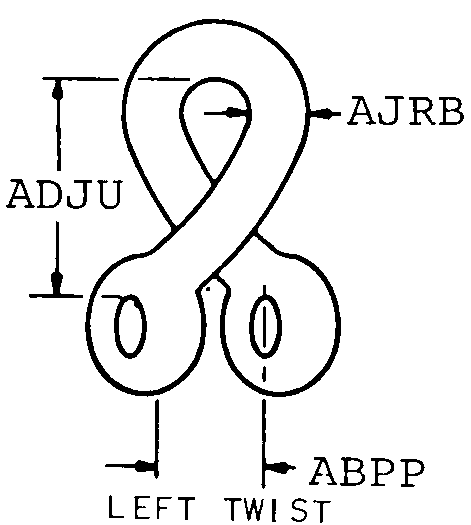

Drawings & Photos | NSN 4030-00-833-0480
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-833-0480
Technical Data | NSN 4030-00-833-0480
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | 123 LEFT TWIST |
| OPENING WIDTH | 0.750 INCHES NOMINAL |
| INSIDE LENGTH | 2.250 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.500 INCHES NOMINAL |
| BREAKING STRENGTH | 25000.0 POUNDS MINIMUM |
| CLOSURE HEAD STYLE | 4 OVAL |
| END CONDITION | PLAIN |
| LOCKING DEVICE TYPE | COTTER PIN |
Restrictions/Controls & Freight Information | NSN 4030-00-833-0480
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
