NSN 4030-01-482-7957 G-209, G-209 1-1/4 IN, G2091018570

Product Details | SHACKLE

4030-01-482-7957 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).

Part Alternates: G-209, G-209 1-1/4 IN, G2091018570, G-209-1018570, G209114IN, RRC271, RR-C-271, 1018570, 10638479, 12378642, 12378642005, 12378642-005, G209, 4030-01-482-7957, 01-482-7957, 4030014827957, 014827957

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
40	05 MAR 2001	01-482-7957	11074 ( SHACKLE )

Drawings & Photos | NSN 4030-01-482-7957

Part Number	Request Date	QTY	Origin
RR-C-271	2022-10-301	2	Malaysia
RRC271	2021-07-190	1	US
RRC271	2020-10-296	50	US
RRC271	2020-01-29	1	GR
RR-C-271	2019-01-07	6
RR-C-271	2019-01-07	6
RRC271	2018-04-106	1	US
RRC271	2018-02-50	2	United States
4030-01-482-7957	2017-06-167	365	DIBBS
4030-01-482-7957	2017-04-117	423	DIBBS
4030-01-482-7957	2017-02-58	163	DIBBS
4030-01-482-7957	2017-02-38	202	DIBBS
4030-01-482-7957	2017-01-31	1	DIBBS-RFPs
4030-01-482-7957	2016-11-325	310	DIBBS
4030-01-482-7957	2016-11-320	30	Japan
4030-01-482-7957	2016-07-196	142	DIBBS
4030-01-482-7957	2016-02-59	139	DIBBS
RRC271	2014-09-265	3	US
4030-01-482-7957	2014-01-01	192	DIBBS
RRC271	2013-01-11	522	US
4030-01-482-7957	2013-01-07	573	DIBBS
4030-01-482-7957	2012-12-341	4	United States
4030-01-482-7957	2011-09-269	579	DIBBS
RRC271	2010-11-322	300	US
RRC271	2010-08-242	4	United States
RRC271	2010-05-139	2	United States
RRC271	2008-09-267	8000	US
RRC271	2008-02-42	50	United States
RRC271	2007-06-173	1000	US

Cross Reference | NSN 4030-01-482-7957

Part Number	Cage Code	Manufacturer
1018570	75535	CROSBY GROUP INC DBA NATIONAL SWAGE
1018570	K6F29	CROSBY EUROPE UK
10638479	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
12378642	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12378642-005	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
G-209	75535	CROSBY GROUP INC DBA NATIONAL SWAGE
G-209 1-1/4 IN	75535	CROSBY GROUP INC DBA NATIONAL SWAGE
G-209-1018570	75535	CROSBY GROUP INC DBA NATIONAL SWAGE
RR-C-271	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4030-01-482-7957

Compare

Related Products | NSN 4030-01-482-7957

4030-01-483-1519, 4030-01-483-1760, 4030-01-483-1761, 4030-01-483-1762, 4030-01-483-1763

Technical Data | NSN 4030-01-482-7957

Characteristic	Specifications
MATERIAL	STEEL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A576 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A322 ASSN STD SINGLE MATERIAL RESPONSE
SURFACE TREATMENT	ZINC
STYLE DESIGNATOR	110 ANCHOR
OPENING WIDTH	2.030 INCHES NOMINAL

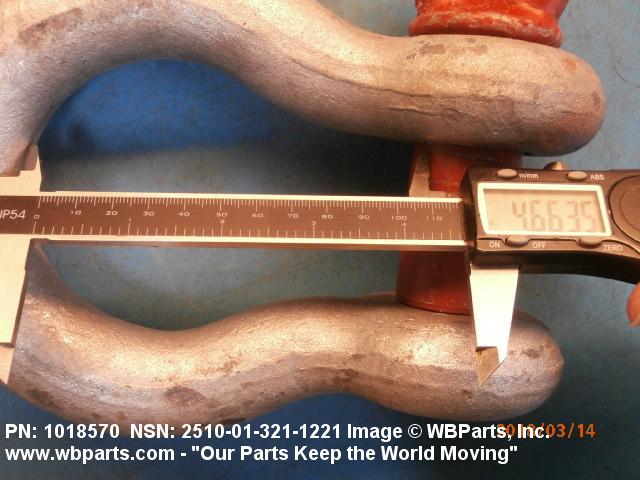

INSIDE LENGTH	4.690 INCHES NOMINAL
MATERIAL DIAMETER	1.250 INCHES NOMINAL
SAFE OPERATING LOAD RATING	24000.000 POUNDS NOMINAL
CLOSURE HEAD STYLE	5 SHOULDER EYE
END CONDITION	THREADED
EYELET STYLE	3 ROUND PLAIN

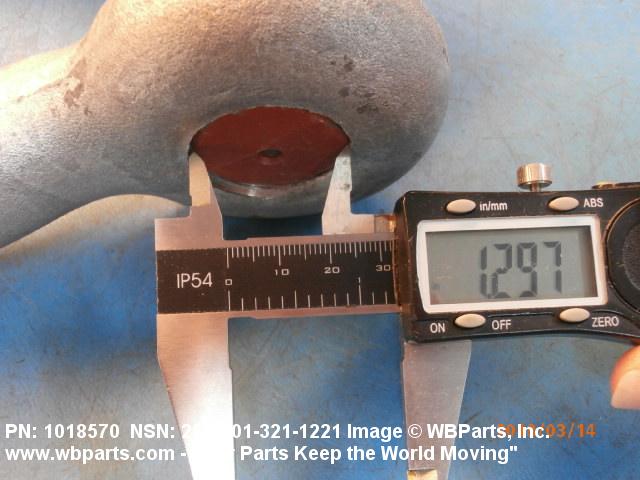

EYE INSIDE DIAMETER	1.380 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	81348-RR-C-271 GOVERNMENT SPECIFICATION
NONDEFINITIVE SPEC/STD DATA	4A TYPE AND 2 CLASS AND A GRADE AND 1-1/4 SIZE
III END ITEM IDENTIFICATION	FAMILY OF MEDIUM TACTICAL VEHICLES - LIGHT; NSN 2320-01-354-3384 TRUCK,VAN

Restrictions/Controls & Freight Information | NSN 4030-01-482-7957

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	105200	FITTINGS CABLE/CHAIN/ROPE I/S
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	793	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4030-01-482-7957

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
