Product Details | LINK AND JAW SWIVEL

4030-01-483-1763 A D-shaped part and a U-shaped part mounted on a common axis so as to permit relative rotation between the parts. The U-shaped part has a pin or a bolt across the open legs.

Part Alternates: S322CN5TON, S-322CN-5TON, 4030-01-483-1763, 01-483-1763, 4030014831763, 014831763

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG) NSN Assign. NIIN
40 19 MAR 2001 01-483-1763

Drawings & Photos | NSN 4030-01-483-1763


Cross Reference | NSN 4030-01-483-1763

Part Number Cage Code Manufacturer
S-322CN-5TON 75535 CROSBY GROUP INC DBA NATIONAL SWAGE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-01-483-1763

Technical Data | NSN 4030-01-483-1763

Characteristic Specifications
MATERIAL STEEL

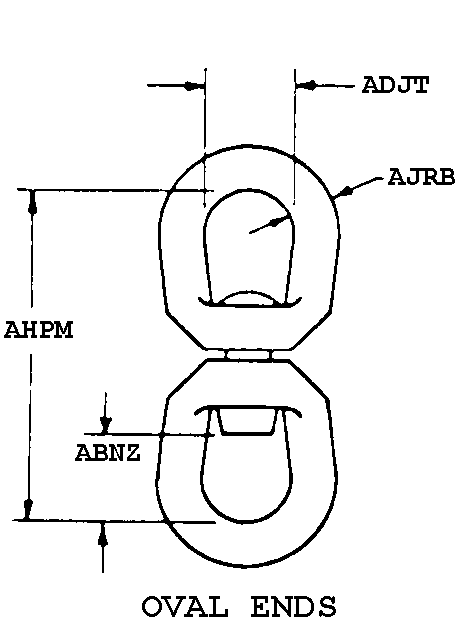

STYLE DESIGNATOR 181 OVAL ENDS
INSIDE WIDTH 63.5 MILLIMETERS NOMINAL
REACH LENGTH 245.0 MILLIMETERS NOMINAL
MATERIAL DIAMETER 25.4 MILLIMETERS NOMINAL
SPECIAL FEATURES FORGED, QUENCHED AND TEMPERED

Restrictions/Controls & Freight Information | NSN 4030-01-483-1763

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
