NSN 4030-00-833-6916 11167142, 11167-14-2, 69A181A
Product Details | WIRE ROPE SOCKET WEDGE
4030-00-833-6916 A solid metallic, pear-shaped item with a grooved or flat outer edge, around which an item is shaped and inserted into the receptacle of another item.
Part Alternates: 11167142, 11167-14-2, 69A181A, 4030-00-833-6916, 00-833-6916, 4030008336916, 008336916
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1962 | 00-833-6916 | 19942 ( WEDGE, WIRE ROPE SOCKET ) |

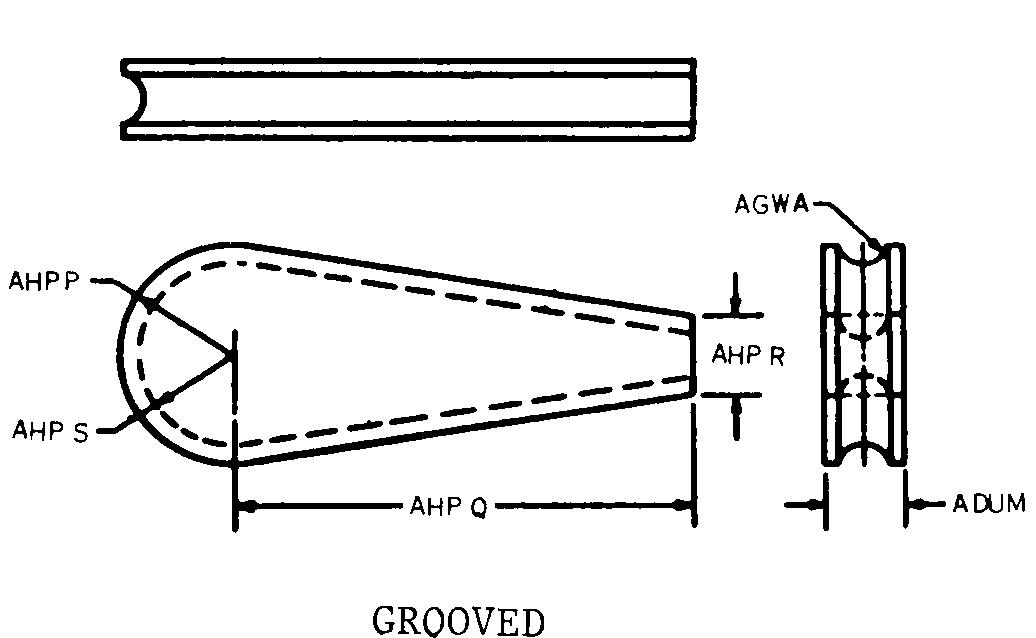

Drawings & Photos | NSN 4030-00-833-6916
Cross Reference | NSN 4030-00-833-6916
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11167-14-2 | 34161 | KOEHRING CO |
| 11167-14-2 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| 11167-14-2 | 8E499 | KOEHRING CRANES AND EXCAVATORS INC SUB OF NORTHWEST ENGINEERING CO |
| 69A181A | 34161 | KOEHRING CO |
| 69A181A | 8E499 | KOEHRING CRANES AND EXCAVATORS INC SUB OF NORTHWEST ENGINEERING CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-833-6916
Technical Data | NSN 4030-00-833-6916
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE |
| STYLE DESIGNATOR | 228 GROOVED |
| OVERALL THICKNESS | 0.562 INCHES NOMINAL |
| GROOVE RADIUS | 0.812 INCHES NOMINAL |
| OUTER RADIUS | 0.562 INCHES NOMINAL |
| DISTANCE FROM HOLE CENTER TO TAPERED END | 2.688 INCHES NOMINAL |
| TAPERED END HEIGHT | 0.312 INCHES NOMINAL |
| INNER RADIUS | 0.281 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.375 INCHES NOMINAL |
| SPECIAL FEATURES | 0.500 IN. DIA HOLE |
Restrictions/Controls & Freight Information | NSN 4030-00-833-6916
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
