NSN 4030-00-542-3178 NAS10424, NAS1042-4, RR271T4C4.250

Product Details | SHACKLE

4030-00-542-3178 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).

Part Alternates: NAS10424, NAS1042-4, RR271T4C4.250, RR271T4C4250, RRC271, G-213-1/4 IN, G21314IN, 6508300, 65083-00, 8019902, 4030-00-542-3178, 00-542-3178, 4030005423178, 005423178

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
40	01 JAN 1963	00-542-3178	11074 ( SHACKLE )

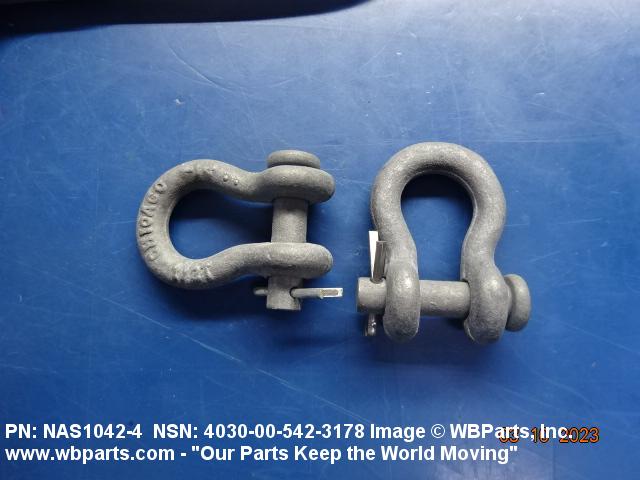

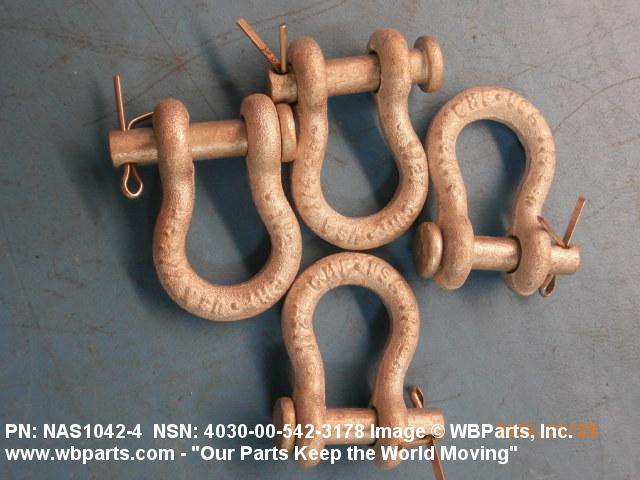

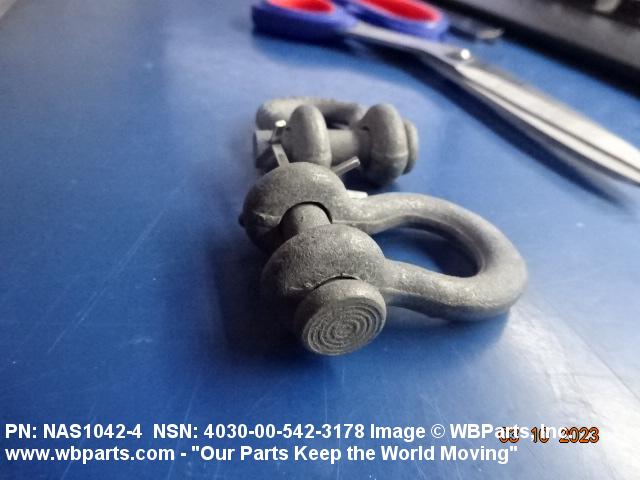

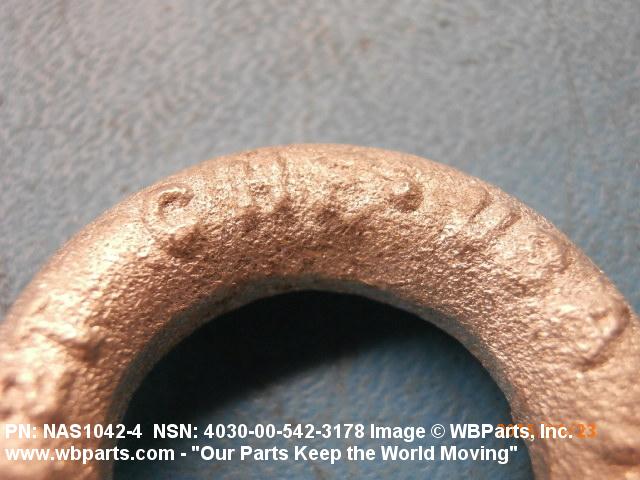

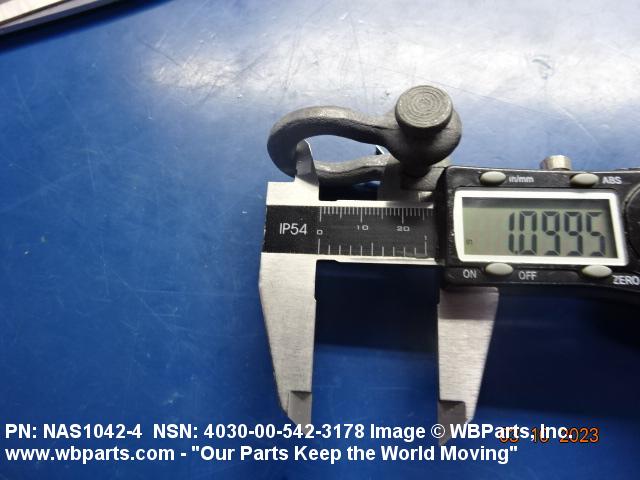

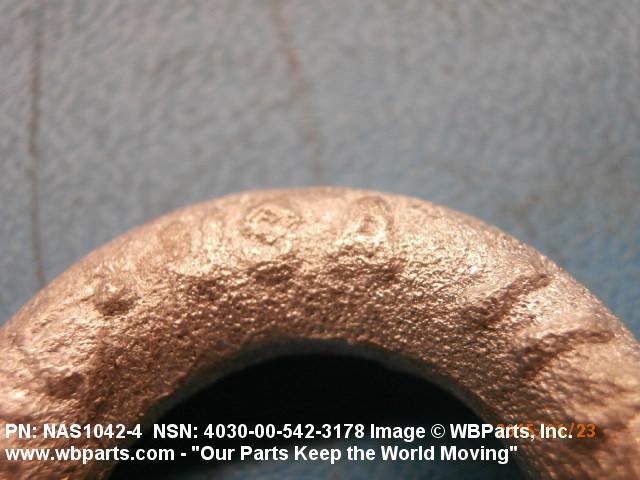

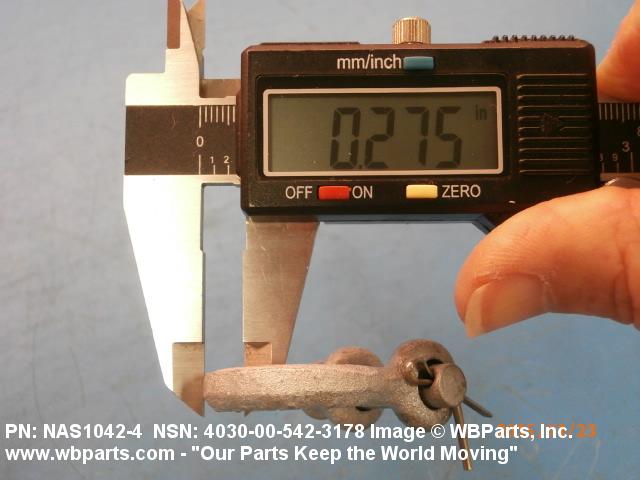

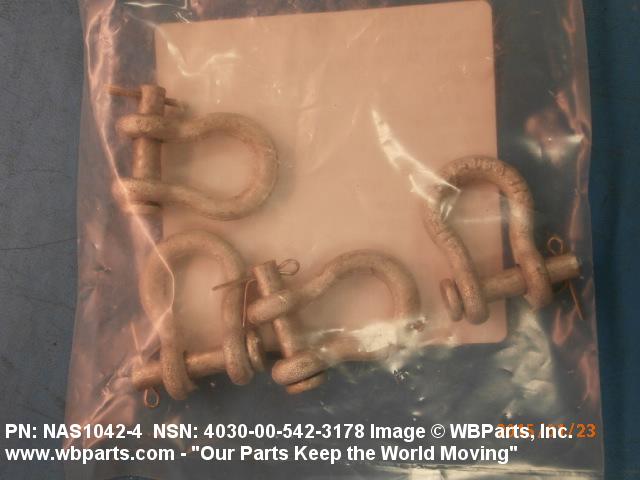

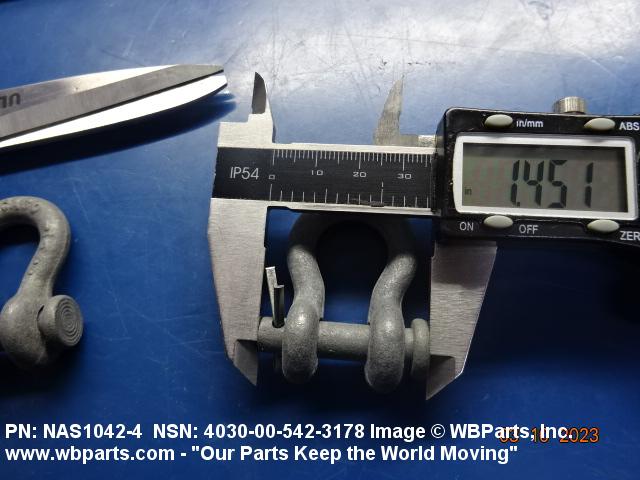

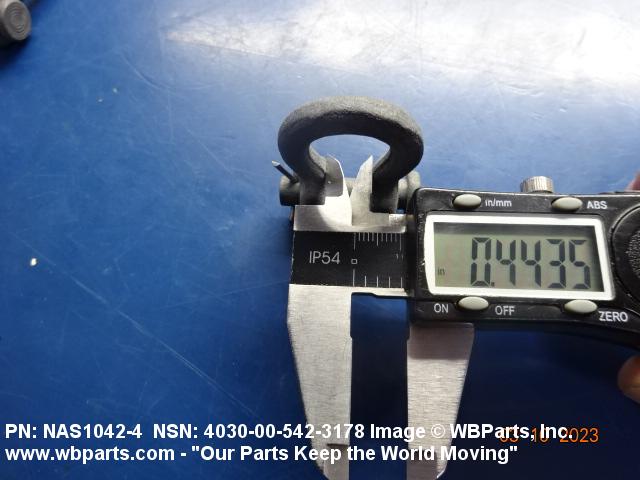

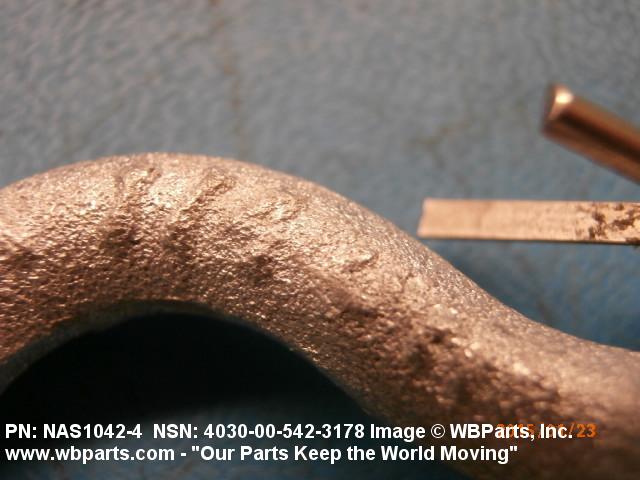

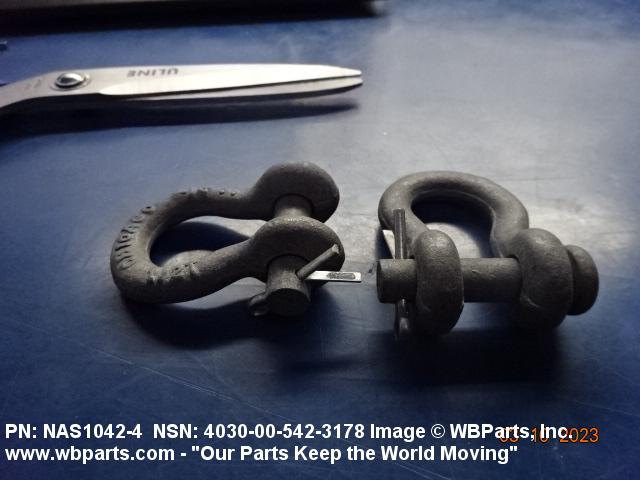

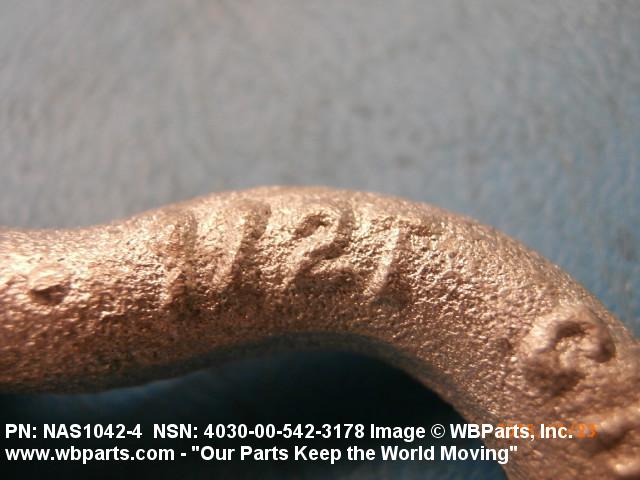

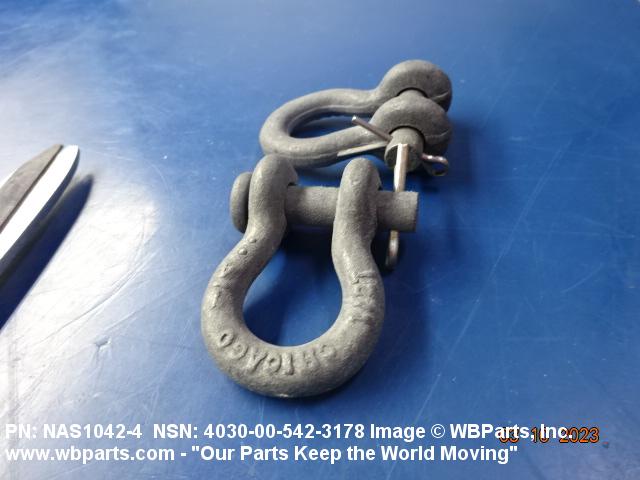

Drawings & Photos | NSN 4030-00-542-3178

Part Number	Request Date	QTY	Origin
4030-00-542-3178	2024-11-319	22	DIBBS
NAS10424	2024-11-318	5	US
4030-00-542-3178	2024-06-155	78	DIBBS
4030-00-542-3178	2023-07-201	27	DIBBS
4030-00-542-3178	2023-02-51	2	United States
NAS10424	2022-10-292	3	US
NAS10424	2022-10-291	3	US
4030-00-542-3178	2022-04-110	598	DIBBS
4030-00-542-3178	2022-04-95	598	DIBBS
4030-00-542-3178	2022-03-79	103	DIBBS
4030-00-542-3178	2021-12-365	1	Singapore
4030-00-542-3178	2021-12-365	3	Singapore
4030-00-542-3178	2021-11-311	223	DIBBS
4030-00-542-3178	2021-09-269	212	DIBBS
4030-00-542-3178	2021-09-265	212	DIBBS
4030-00-542-3178	2021-08-236	436	DIBBS
4030-00-542-3178	2021-08-230	103	DIBBS
RRC271	2021-07-190	1	US
NAS10424	2021-06-176	2	United States
RRC271	2020-10-296	50	US
NAS10424	2020-01-29	3	MY
RRC271	2020-01-29	1	GR
4030-00-542-3178	2018-07-204	27	CA
NAS10424	2018-05-130	275	us
NAS10424	2018-04-120	275	Canada
RRC271	2018-04-106	1	US
RRC271	2018-02-50	2	United States
NAS10424	2018-01-12	1	China
NAS10424	2017-05-139	3	US
4030-00-542-3178	2017-03-66	230	DIBBS
4030-00-542-3178	2016-04-113	986	DIBBS
4030-00-542-3178	2016-04-110	211	DIBBS
4030-00-542-3178	2016-04-105	986	DIBBS
NAS10424	2015-01-08	4	United States
RRC271	2014-09-265	3	US
RRC271	2013-01-11	522	US
RRC271	2010-11-322	300	US
RRC271	2010-08-242	4	United States
RRC271	2010-05-139	2	United States
4030-00-542-3178	2010-05-124	776	DIBBS
RRC271	2008-09-267	8000	US
RRC271	2008-02-42	50	United States
RRC271	2007-06-173	1000	US

Cross Reference | NSN 4030-00-542-3178

Part Number	Cage Code	Manufacturer
65083-00	78710	TRIUMPH CONTROLS, LLC DBA TRIUMPH CONTROLS- NORTH WALES
8019902	18876	U S ARMY AVIATION AND MISSILE COMMAND
G-213-1/4 IN	75535	CROSBY GROUP INC DBA NATIONAL SWAGE
NAS1042-4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
RR271T4C4.250	03538	LOCKHEED MARTIN CORPORATION DIV MST
RRC271	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4030-00-542-3178

Compare

Related Products | NSN 4030-00-542-3178

4030-00-542-3179, 4030-00-542-3180, 4030-00-542-3181, 4030-00-542-3182, 4030-00-542-3183

Technical Data | NSN 4030-00-542-3178

Characteristic	Specifications
MATERIAL	STEEL
MATERIAL DOCUMENT AND CLASSIFICATION	RR-C-271 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT	ZINC
STYLE DESIGNATOR	110 ANCHOR

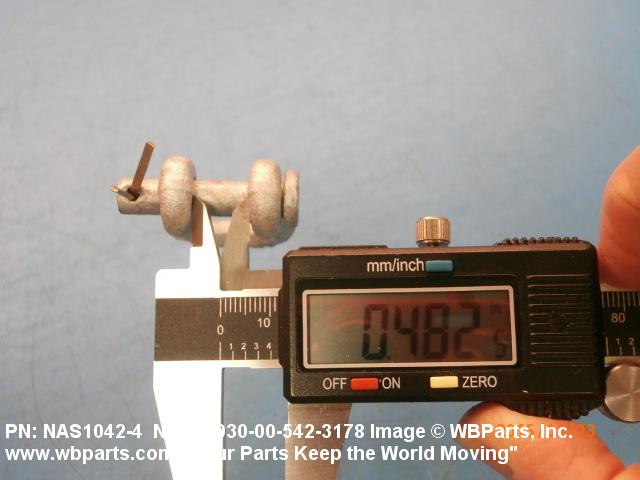

OPENING WIDTH	0.469 INCHES NOMINAL

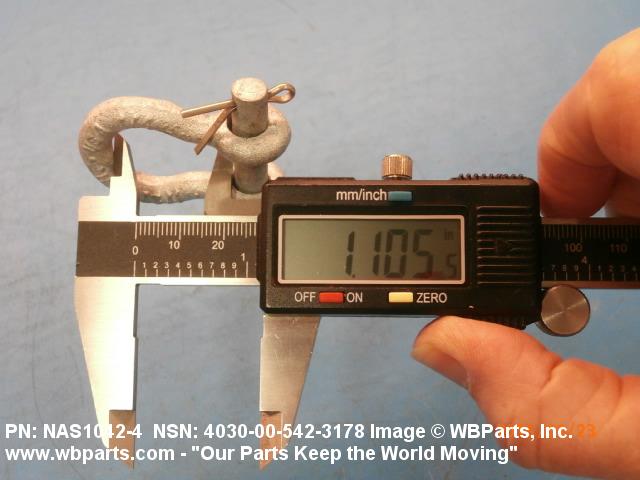

INSIDE LENGTH	1.062 INCHES NOMINAL

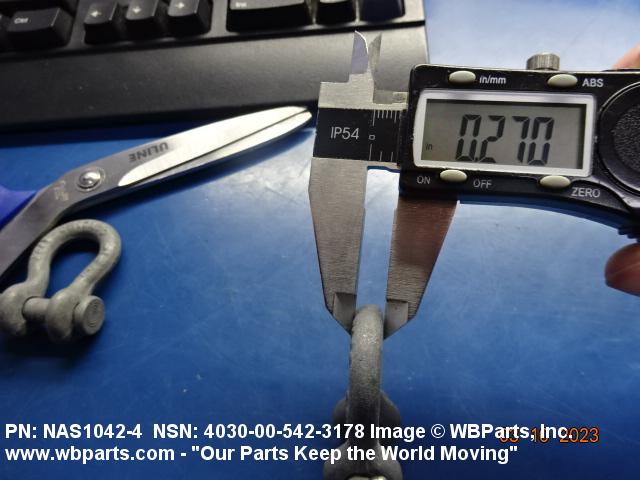

MATERIAL DIAMETER	0.250 INCHES NOMINAL
BREAKING STRENGTH	3550.0 POUNDS MINIMUM
SAFE OPERATING LOAD RATING	710.000 POUNDS MAXIMUM
CLOSURE HEAD STYLE	3 FLAT
END CONDITION	PLAIN
LOCKING DEVICE TYPE	COTTER PIN
FEATURES PROVIDED	FORELOCK PINHOLE

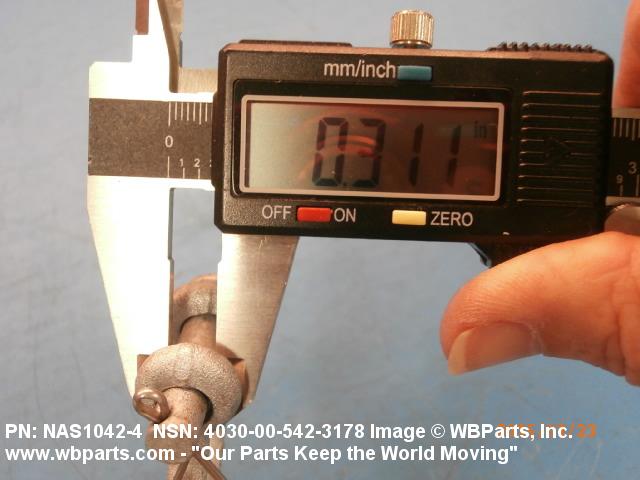

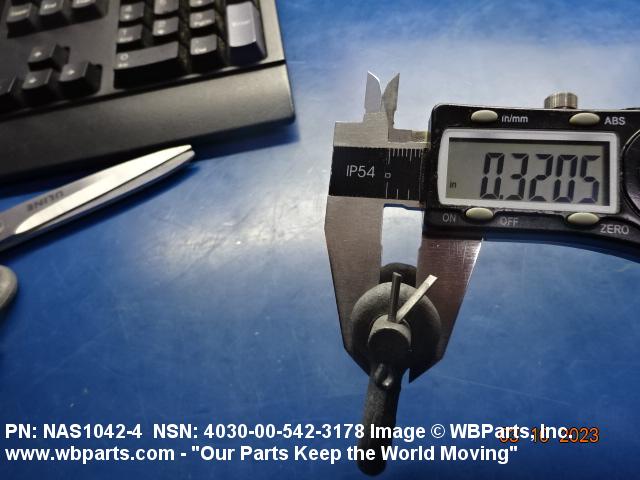

SPECIAL FEATURES	0.312 IN. DIA PIN
SPECIFICATION/STANDARD DATA	80205-NAS1042 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	4A TYPE AND A GRADE AND 1 CLASS
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	RRC271

Restrictions/Controls & Freight Information | NSN 4030-00-542-3178

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	105200	FITTINGS CABLE/CHAIN/ROPE I/S
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4030-00-542-3178

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
