NSN 4030-00-542-3179 NAS10426, NAS1042-6, SMC3892733

Product Details | SHACKLE

4030-00-542-3179 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).

Part Alternates: NAS10426, NAS1042-6, SMC3892733, SMC389273-3, RRC271, G-213-3/8 IN, G21338IN, 1176J9222, 1176J92-22, 212MT057P001, 23501222004, 2350-1222-004, 40305423179, 4030-542-3179 , 835698, 83569800, 835698-00, 8531266, 4030-00-542-3179, 00-542-3179, 4030005423179, 005423179

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
40	01 JAN 1963	00-542-3179	11074 ( SHACKLE )

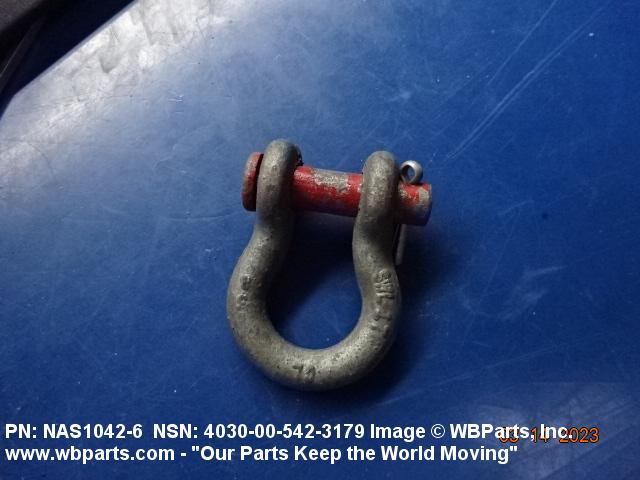

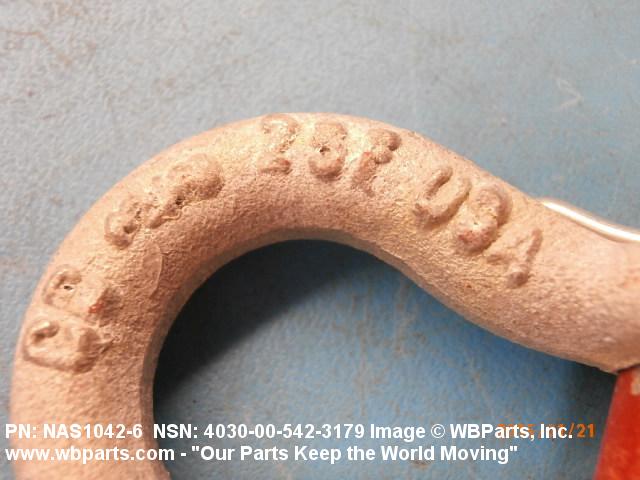

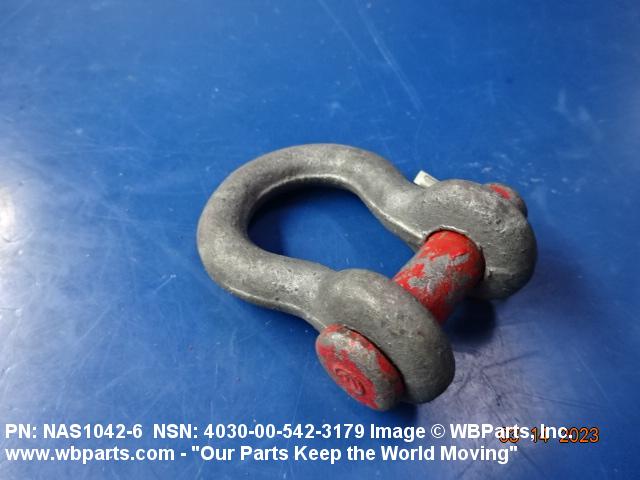

Drawings & Photos | NSN 4030-00-542-3179

Part Number	Request Date	QTY	Origin
4030-00-542-3179	2024-08-232	25	DIBBS
4030-00-542-3179	2024-08-224	25	DIBBS
NAS10426	2023-02-59	1	US
4030-00-542-3179	2023-02-51	1	United States
NAS10426	2023-02-41	9	US
4030-00-542-3179	2022-05-151	20	US
NAS10426	2022-02-39	50	United States
RRC271	2021-07-190	1	US
NAS10426	2021-06-176	1	United States
NAS10426	2020-11-330	12	United States
4030-00-542-3179	2020-11-330	12	United States
RRC271	2020-10-296	50	US
RRC271	2020-01-29	1	GR
4030-00-542-3179	2019-10-281	670	DIBBS
4030-00-542-3179	2019-07-182	91	AU
4030-00-542-3179	2018-08-232	412	US
RRC271	2018-04-106	1	US
RRC271	2018-02-50	2	United States
4030-00-542-3179	2017-09-256	1	United States
NAS10426	2017-08-241	4	Taiwan
NAS10426	2017-08-222	4	United States
NAS10426	2017-04-102	4	US
4030-00-542-3179	2015-04-96	1052	DIBBS
NAS10426	2015-01-08	2	United States
RRC271	2014-09-265	3	US
4030-00-542-3179	2014-07-202	1995	DIBBS
4030-00-542-3179	2014-07-194	1995	DIBBS
NAS1042-6	2013-11-309	5	Australia
4030-00-542-3179	2013-10-302	1	United States
4030-00-542-3179	2013-10-299	924	DIBBS
4030-00-542-3179	2013-10-290	924	DIBBS
NAS10426	2013-04-118	51	US
RRC271	2013-01-11	522	US
4030-00-542-3179	2012-05-152	980	DIBBS
4030-00-542-3179	2012-05-137	980	DIBBS
4030-00-542-3179	2011-09-244	1221	DIBBS
4030-00-542-3179	2011-03-68	100	US
RRC271	2010-11-322	300	US
RRC271	2010-08-242	4	United States
RRC271	2010-05-139	2	United States
NAS10426	2009-11-334	10	UM
RRC271	2008-09-267	8000	US
RRC271	2008-02-42	50	United States
RRC271	2007-06-173	1000	US

Cross Reference | NSN 4030-00-542-3179

Part Number	Cage Code	Manufacturer
1176J92-22	59042	CBS BROADCASTING INC. DBA CBS
212MT057P001	05452	RAYTHEON CO RAYTHEON SYSTEMS CO
2350-1222-004	06032	ANTENNA PRODUCTS CORPORATION
4030-542-3179	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
835698	19203	PICATINNY ARSENAL
835698-00	32345	DEFENSE REDUCTION AGENCY
8531266	18876	U S ARMY AVIATION AND MISSILE COMMAND
G-213-3/8 IN	75535	CROSBY GROUP INC DBA NATIONAL SWAGE
NAS1042-6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
RRC271	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
SMC389273-3	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4030-00-542-3179

Compare

Related Products | NSN 4030-00-542-3179

4030-00-542-3180, 4030-00-542-3181, 4030-00-542-3182, 4030-00-542-3183, 4030-00-542-3184

Technical Data | NSN 4030-00-542-3179

Characteristic	Specifications
MATERIAL	STEEL
MATERIAL DOCUMENT AND CLASSIFICATION	RR-C-271 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT	ZINC
STYLE DESIGNATOR	110 ANCHOR

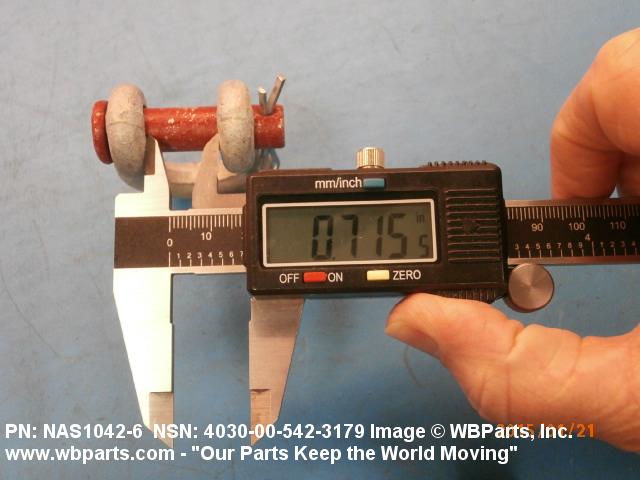

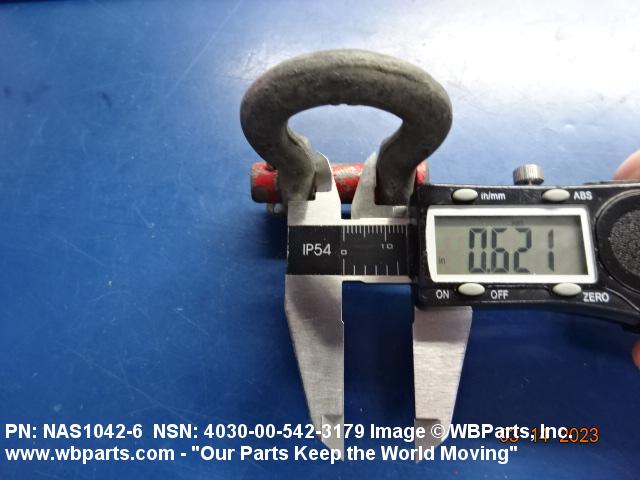

OPENING WIDTH	0.593 INCHES MINIMUM AND 0.718 INCHES MAXIMUM

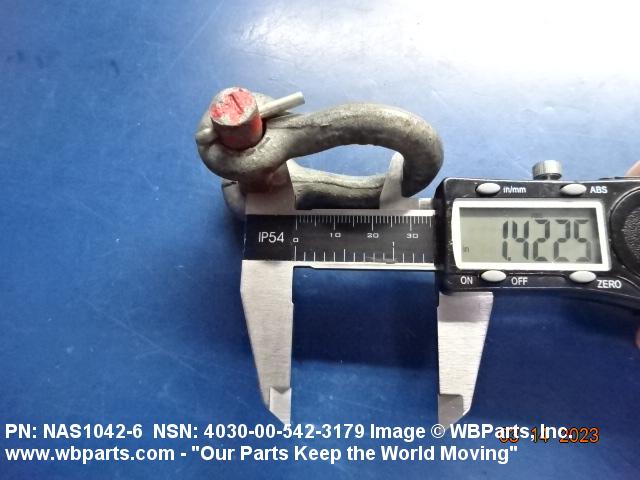

INSIDE LENGTH	1.313 INCHES MINIMUM AND 1.562 INCHES MAXIMUM

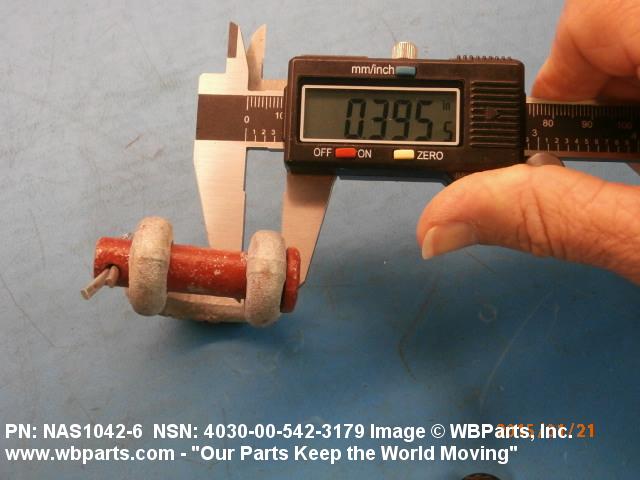

MATERIAL DIAMETER	0.375 INCHES NOMINAL
BREAKING STRENGTH	7950.0 POUNDS MINIMUM
SAFE OPERATING LOAD RATING	1590.000 POUNDS MAXIMUM
CLOSURE HEAD STYLE	3 FLAT
END CONDITION	PLAIN
LOCKING DEVICE TYPE	COTTER PIN
FEATURES PROVIDED	FORELOCK PINHOLE
SPECIFICATION/STANDARD DATA	80205-NAS1042 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA	4A TYPE AND A GRADE AND 1 CLASS
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	RRC271

Restrictions/Controls & Freight Information | NSN 4030-00-542-3179

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	105200	FITTINGS CABLE/CHAIN/ROPE I/S
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4030-00-542-3179

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
