NSN 4030-00-264-6482 300509PC1, 00-264-6482, 002646482
Product Details | SHACKLE
4030-00-264-6482 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: 300509PC1, 4030-00-264-6482, 00-264-6482, 4030002646482, 002646482
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-264-6482 | 11074 ( SHACKLE ) |
Drawings & Photos | NSN 4030-00-264-6482
Cross Reference | NSN 4030-00-264-6482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300509PC1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-264-6482
Related Products | NSN 4030-00-264-6482
Technical Data | NSN 4030-00-264-6482
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |

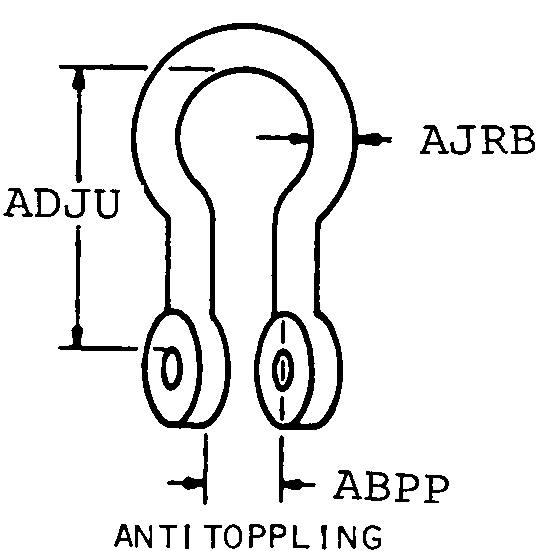

| STYLE DESIGNATOR | 119 ANTITOPPLING |
| OPENING WIDTH | 0.875 INCHES MINIMUM AND 0.878 INCHES MAXIMUM |
| INSIDE LENGTH | 2.500 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.500 INCHES NOMINAL |

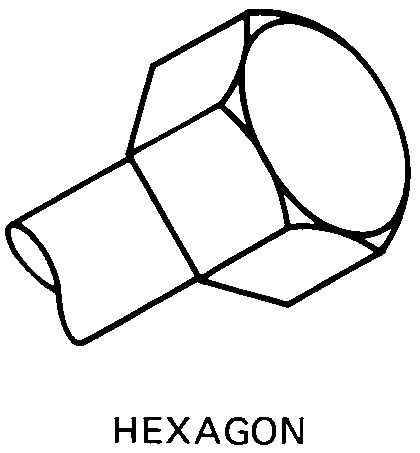

| CLOSURE HEAD STYLE | 2 HEXAGON |
| END CONDITION | THREADED |
| LOCKING DEVICE TYPE | COTTER PIN |
Restrictions/Controls & Freight Information | NSN 4030-00-264-6482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-264-6482
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 6T | Underwater mines and components Naval Ordnance Center, IMSD Mechanicsburg, PA |
| Issue Repair, or Requisition | BV | Controlled ammunition item. Submit/refer requisitions to NOC IMSD. Centralized control for issue of controlled ammunition items. |
| Source of Supply | NCB | Naval Ordnance Center P.O. Box 2011 Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
