NSN 4030-00-264-6499 ID131, MILS21433, 131
Product Details | WIRE ROPE SOCKET
4030-00-264-6499 A funnel-shaped receptacle or basket, designed to hold the end of an item when secured by molten metal or by a wedge. Extending from the upper surface of the basket is a closed loop, a stud end, or two clevis-type prongs or jaws with ends perforated to receive a pin attaching the device to another item. See also TERMINAL, WIRE ROPE (as modified).
Part Alternates: ID131, MILS21433, 131, 4030-00-264-6499, 00-264-6499, 4030002646499, 002646499
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
40 | 01 JAN 1963 | 00-264-6499 | 02645 ( SOCKET, WIRE ROPE ) |
Demand History | NSN 4030-00-264-6499
Part Number | Request Date | QTY | Origin |
---|---|---|---|
4030-00-264-6499 | 2016-10-276 | 4 | DIBBS |
4030-00-264-6499 | 2014-03-77 | 1 | DIBBS |
4030-00-264-6499 | 2014-03-69 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-264-6499
Related Products | NSN 4030-00-264-6499
Technical Data | NSN 4030-00-264-6499
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
SURFACE TREATMENT | CADMIUM OR ZINC |

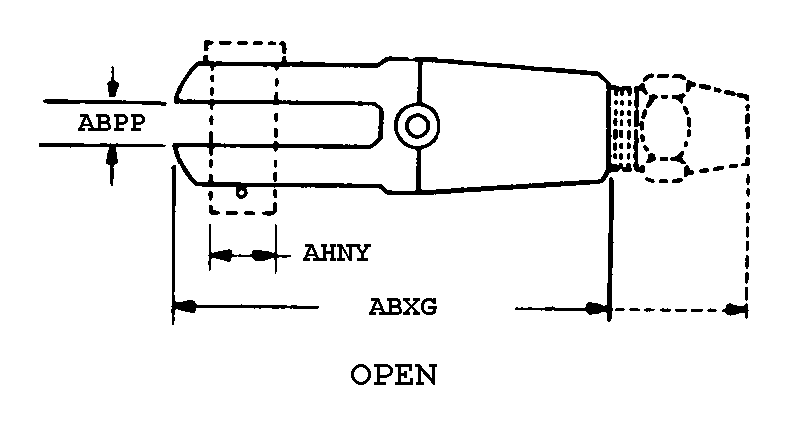

STYLE DESIGNATOR | 146 OPEN |
OPENING WIDTH | 0.375 INCHES NOMINAL |
OVERALL LENGTH | 4.250 INCHES NOMINAL |
BOLT DIAMETER | 0.438 INCHES NOMINAL |
ACCOMMODATED MATERIAL DIAMETER | 0.312 INCHES NOMINAL |
FEATURES PROVIDED | WEDGE |
SPECIAL FEATURES | WEDGE TO ACCOMMODATE FIBER WIRE ROPE |
NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND B CLASS |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS21433 |
Restrictions/Controls & Freight Information | NSN 4030-00-264-6499
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
Less than car load rating | ||
Less than truck load rating | U | 50.0 |
Water commodity Code | 576 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-264-6499
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
