NSN 4010-00-332-4990 003324990
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-332-4990 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 003324990
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-332-4990 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 1640-00-332-4990
Demand History | NSN 4010-00-332-4990
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-332-4990 | 2009-02-54 | 55 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-332-4990
Technical Data | NSN 4010-00-332-4990
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING ALL ATTACHMENTS STEEL WIRE ROPE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-83420 MIL SPEC SINGLE MATERIAL RESPONSE WIRE ROPE |
| CORE CONSTRUCTION | WIRE |
| STYLE DESIGNATOR | A120 7 X 7 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 0.656 FEET NOMINAL |
| DIAMETER | 0.094 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 920.000 POUNDS MINIMUM |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |

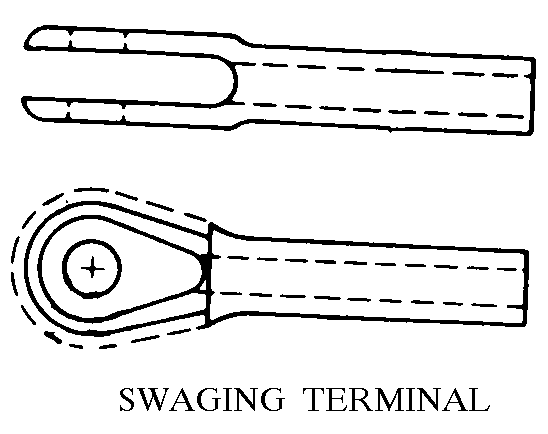

| ATTACHMENT STYLE | D184 SWAGING TERMINAL TERMINAL ATTACHMENT FIRST END D184 SWAGING TERMINAL TERMINAL ATTACHMENT SECOND END |
| SPECIFICATION/STANDARD DATA | 80205-NAS303 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4010-00-332-4990
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
