Product Details | SINGLE LEG WIRE ROPE ASSEMBLY

1640-00-337-3651 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.

Part Alternates: 003373651

Aircraft Components and Accessories | Aircraft Control Cable Products

Supply Group (FSG) NSN Assign. NIIN
16 00-337-3651

Drawings & Photos | NSN 1640-00-337-3651


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1640-00-337-3651

Technical Data | NSN 1640-00-337-3651

Characteristic Specifications
MATERIAL STEEL COMP 303SE OR STEEL COMP 305 ALL ATTACHMENTS STEEL CORROSION RESISTING WIRE ROPE
SURFACE TREATMENT PASSIVATE TERMINAL ATTACHMENT FIRST END PASSIVATE TERMINAL ATTACHMENT SECOND END
CORE CONSTRUCTION WIRE
STYLE DESIGNATOR A124 7 X 19
LAY METHOD LEFT REGULAR OR RIGHT REGULAR ALL LAYERS
PREFABRICATION FORM PREFORMED
DIAMETER 0.125 INCHES NOMINAL ROPE
BREAKING STRENGTH 1300.000 POUNDS NOMINAL
END TYPE TERMINAL ATTACHMENT BOTH ENDS

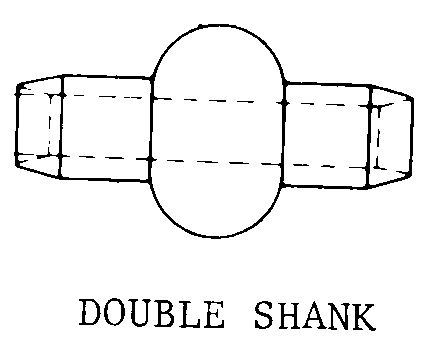

ATTACHMENT STYLE D3 DOUBLE SHANK TERMINAL ATTACHMENT FIRST END D182 STUD TERMINAL TERMINAL ATTACHMENT SECOND END
THREAD SERIES DESIGNATOR UNF TERMINAL ATTACHMENT SECOND END
NOMINAL THREAD SIZE 0.250 INCHES TERMINAL ATTACHMENT SECOND END
THREAD QUANTITY PER INCH 28 TERMINAL ATTACHMENT SECOND END
THREAD CLASS 3A TERMINAL ATTACHMENT SECOND END
THREAD DIRECTION LEFT-HAND TERMINAL ATTACHMENT SECOND END
THREAD LENGTH 0.563 INCHES NOMINAL TERMINAL ATTACHMENT SECOND END
SPECIAL FEATURES EXTERNAL KEYSLOT LENGTH OF THREADED AREA 0.027IN. DEED,0.032 IN. WIDE
MANUFACTURERS CODE 98897
DESIGN CONTROL REFERENCE 1292977-105
