NSN 3120-01-059-1165 M81935/1-05, M81935/1-5, M81935105
Product Details | ROD END PLAIN BEARING

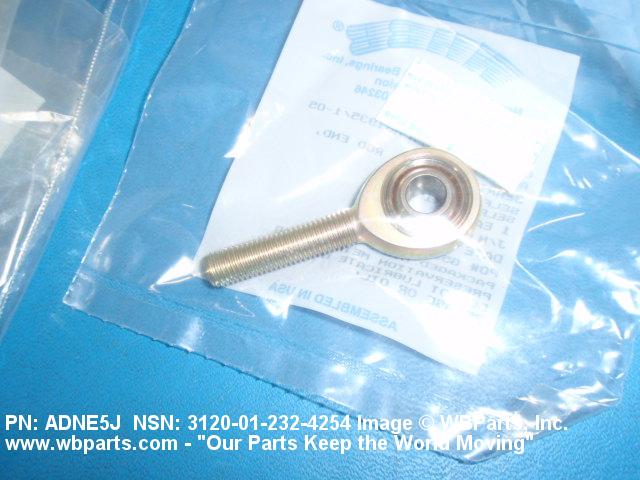

3120-01-059-1165 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: M81935/1-05, M81935/1-5, M81935105, M8193515, ANM5L1, AS81935, AS81935/1, AS819351, SWRK5500, SWRK-5-500, KBDE5351, KBDE5-351, MILB81935, MIL-B-81935, 0182405, 01-824-05, 04A0775, 04A077-5, ANM5, 3120-01-059-1165, 01-059-1165, 3120010591165, 010591165
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 APR 1978 | 01-059-1165 | 13209 ( BEARING, PLAIN, ROD END ) |
Drawings & Photos | NSN 3120-01-059-1165
Demand History | NSN 3120-01-059-1165
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M81935105 | 2021-03-77 | 1 | US |
| 3120-01-059-1165 | 2021-02-40 | 10 | US |
| 3120-01-059-1165 | 2020-08-219 | 6 | Brazil |
| M81935105 | 2020-08-219 | 6 | Brazil |
| 3120-01-059-1165 | 2020-01-23 | 40 | Canada |
| M81935105 | 2020-01-23 | 40 | Canada |
| M81935105 | 2019-07-200 | 25 | United States |
| 3120-01-059-1165 | 2019-07-189 | 4 | United States |
| 3120-01-059-1165 | 2019-02-58 | 23 | DIBBS |
| 3120-01-059-1165 | 2018-12-336 | 42 | DIBBS |
| M8193515 | 2017-12-352 | 1 | United States |
| M8193515 | 2017-12-352 | 3 | United States |
| M8193515 | 2017-12-352 | 7 | United States |
| M8193515 | 2017-12-352 | 14 | United States |
| 3120-01-059-1165 | 2015-11-306 | 24 | United States |
| 3120-01-059-1165 | 2015-07-210 | 29 | US |
| 3120-01-059-1165 | 2015-07-195 | 29 | US |
| 3120-01-059-1165 | 2015-07-183 | 29 | US |
| 3120-01-059-1165 | 2015-06-179 | 29 | DIBBS |
| M81935105 | 2015-04-111 | 1 | United States |
| 04A0775 | 2015-01-15 | 4 | US |
| M8193515 | 2014-10-282 | 1 | US |
| M8193515 | 2014-07-190 | 2 | US |
| M8193515 | 2013-08-213 | 115 | US |
| M81935/1-05 | 2012-06-166 | 12 | United States |
| 3120-01-059-1165 | 2012-04-103 | 32 | United States |
| MILB81935 | 2011-11-318 | 30 | United Kingdom |
| M8193515 | 2010-10-285 | 5 | US |
| M81935105 | 2010-05-132 | 16 | United Kingdom |
| M8193515 | 2009-06-177 | 35 | US |
| 3120-01-059-1165 | 2008-06-182 | 1 | US |
| AS81935 | 2008-02-42 | 4 | US |
| 3120-01-059-1165 | 2008-01-10 | 3 | us |
Cross Reference | NSN 3120-01-059-1165
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-824-05 | 09455 | RBC TRANSPORT DYNAMICS CORP. DIV RBC TRANSPORT DYNAMICS |
| 04A077-5 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| ANM5 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| ANM5(L1) | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| AS81935 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS81935/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| KBDE5-351 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
| M81935/1-05 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-05 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M81935/1-5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SWRK-5-500 | 81376 | RBC SOUTHWEST PRODUCTS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-059-1165
Related Products | NSN 3120-01-059-1165
Technical Data | NSN 3120-01-059-1165
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC RACE LINER STEEL COMP E4340 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE 2, CLASS2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 2.3100 INCHES MINIMUM AND 2.3400 INCHES MAXIMUM |

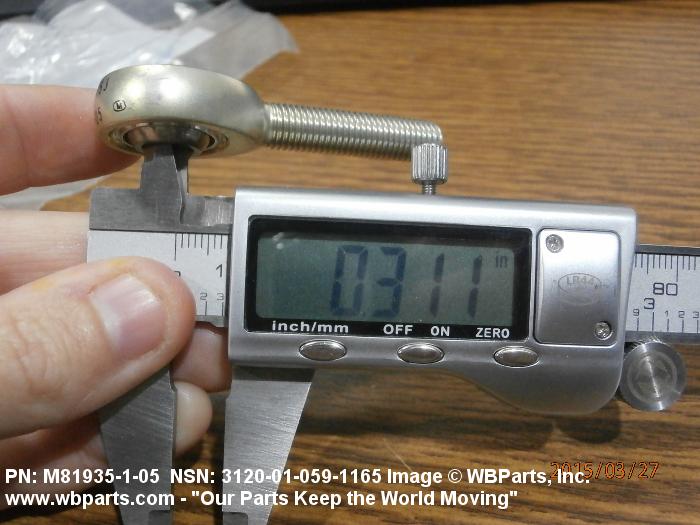

| BORE DIAMETER | 0.3120 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |
