NSN 3120-01-059-1166 M81935/1-05L, M81935/1-5L, M81935105L
Product Details | ROD END PLAIN BEARING
3120-01-059-1166 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: M81935/1-05L, M81935/1-5L, M81935105L, M8193515L, AS81935, MILB81935, MIL-B-81935, 3120-01-059-1166, 01-059-1166, 3120010591166, 010591166
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 APR 1978 | 01-059-1166 | 13209 ( BEARING, PLAIN, ROD END ) |

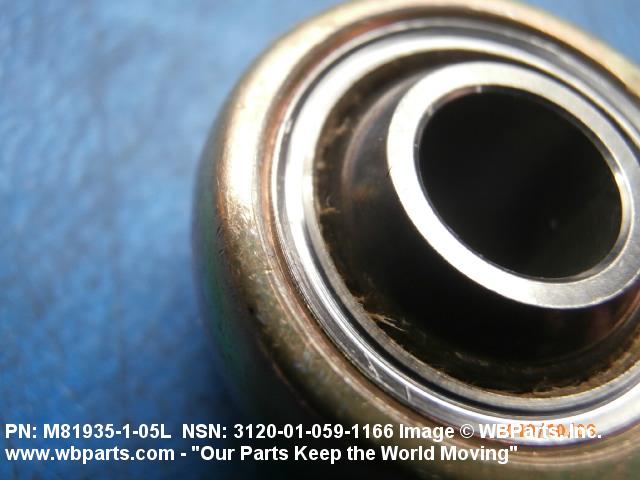

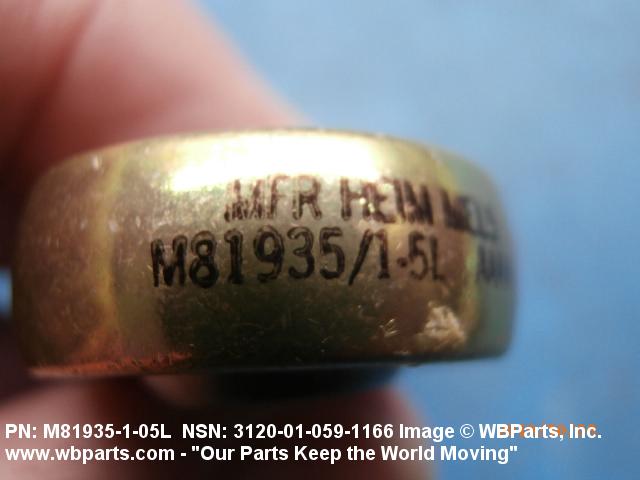

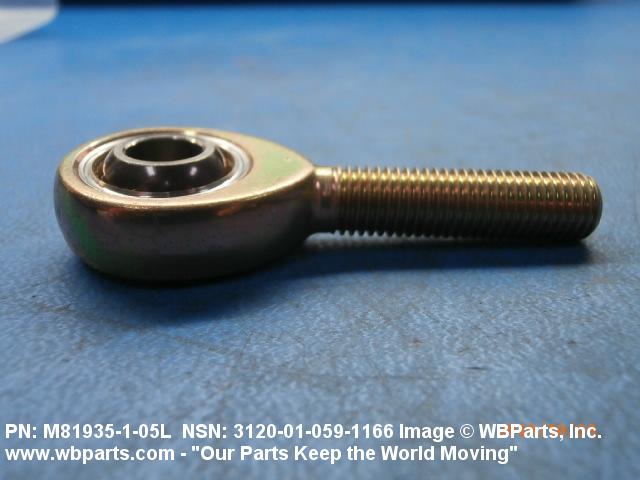

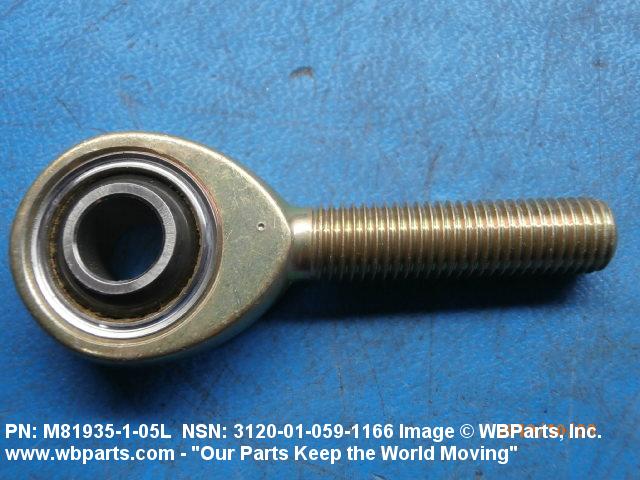

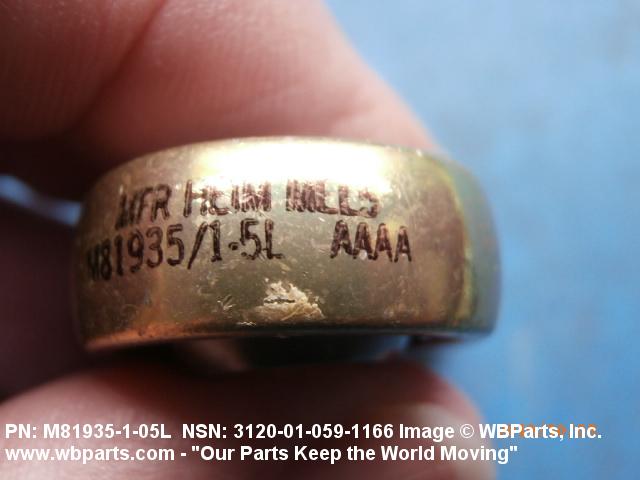

Drawings & Photos | NSN 3120-01-059-1166
Demand History | NSN 3120-01-059-1166
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3120-01-059-1166 | 2021-04-98 | 6 | United States |
| M81935105L | 2021-03-77 | 1 | US |
| M81935105L | 2019-10-276 | 20 | United States |
| M8193515L | 2019-09-269 | 30 | United States |
| 3120-01-059-1166 | 2018-06-156 | 31 | DIBBS |
| M8193515L | 2014-08-231 | 50 | United States |
| M8193515L | 2014-07-190 | 2 | US |
| M81935105L | 2013-08-213 | 115 | US |
| M81935/1-05L | 2012-06-166 | 12 | United States |
| 3120-01-059-1166 | 2012-04-103 | 32 | United States |
| MILB81935 | 2011-11-318 | 30 | United Kingdom |
| M8193515L | 2009-06-177 | 35 | US |
| AS81935 | 2008-02-42 | 4 | US |
| M8193515L | 2007-10-289 | 16 | United States |
Cross Reference | NSN 3120-01-059-1166
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS81935 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-05L | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M81935/1-05L | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M81935/1-5L | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81935 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-01-059-1166
Related Products | NSN 3120-01-059-1166
Technical Data | NSN 3120-01-059-1166
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C INNER MEMBER STEEL COMP 630 RACE INSERT PLASTIC RACE LINER STEEL COMP E4340 ROD END BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5630 ASSN STD SINGLE MATERIAL RESPONSE INNER MEMBER AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE RACE INSERT |
| SURFACE TREATMENT | CADMIUM ROD END BODY |
| STYLE DESIGNATOR | 6 BALL TYPE |

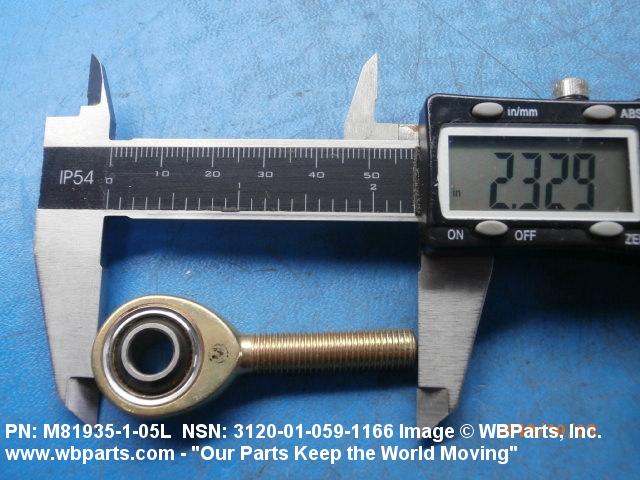

| OVERALL LENGTH | 2.3100 INCHES MINIMUM AND 2.3400 INCHES MAXIMUM |

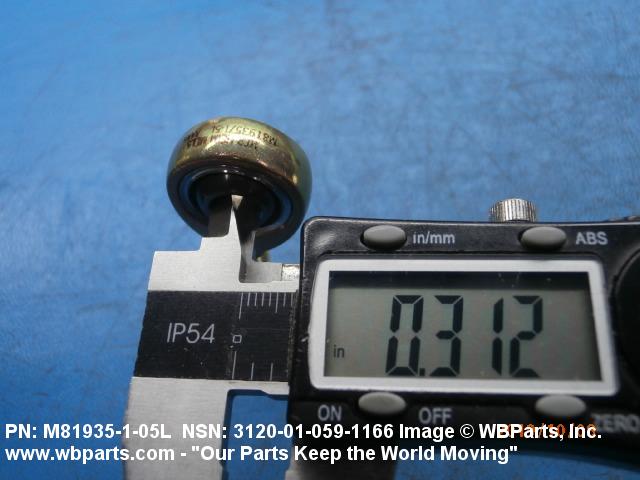

| BORE DIAMETER | 0.3120 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |

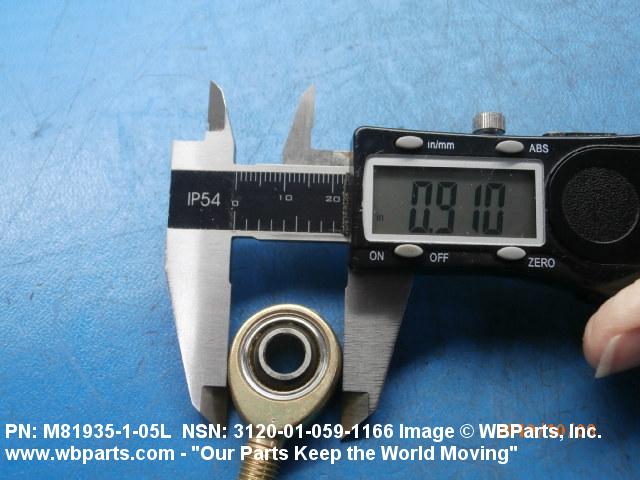

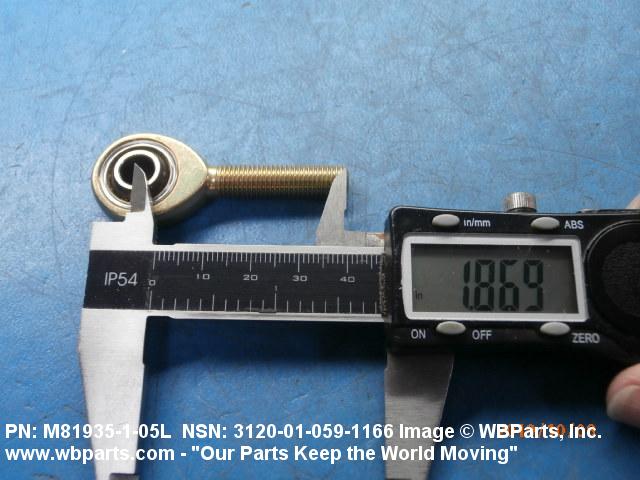

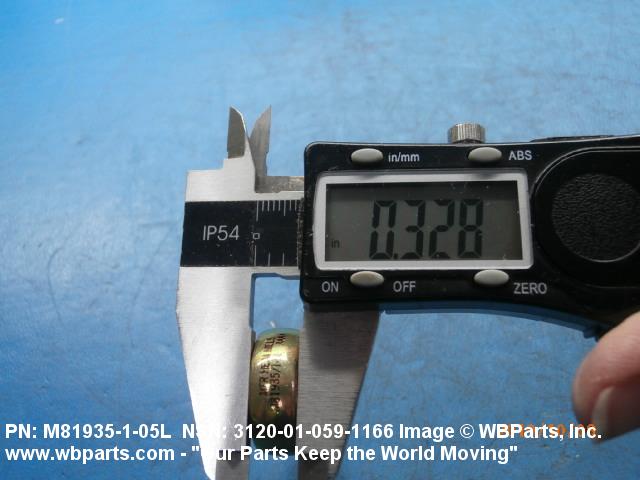

| OUTER MEMBER OUTSIDE DIAMETER | 0.8900 INCHES MINIMUM AND 0.9100 INCHES MAXIMUM |
| BORE CENTER TO SHANK END DISTANCE | 1.8650 INCHES MINIMUM AND 1.8850 INCHES MAXIMUM |
| OUTER MEMBER WIDTH | 0.3220 INCHES MINIMUM AND 0.3320 INCHES MAXIMUM |

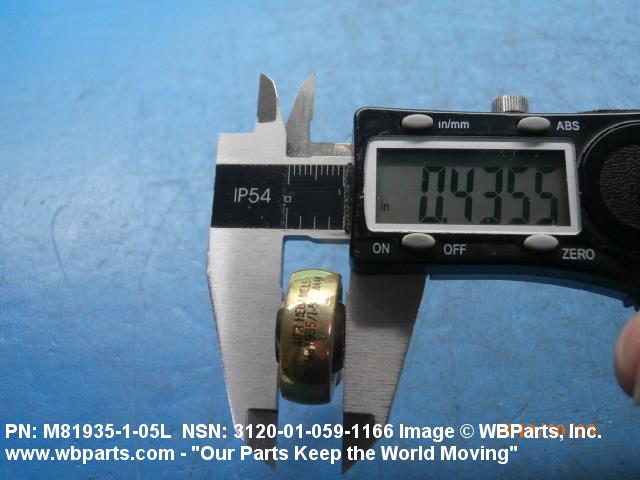

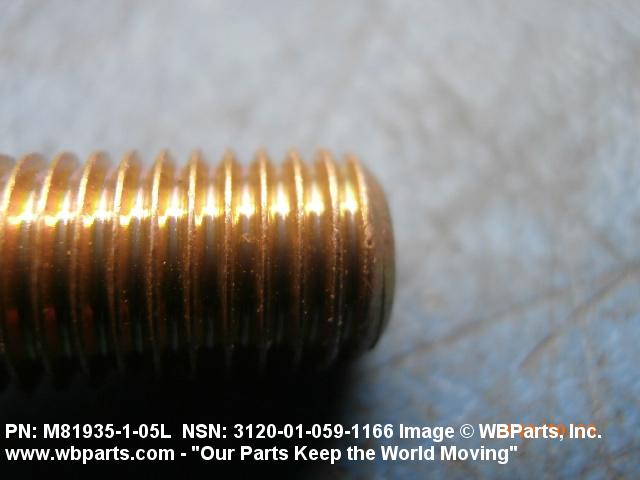

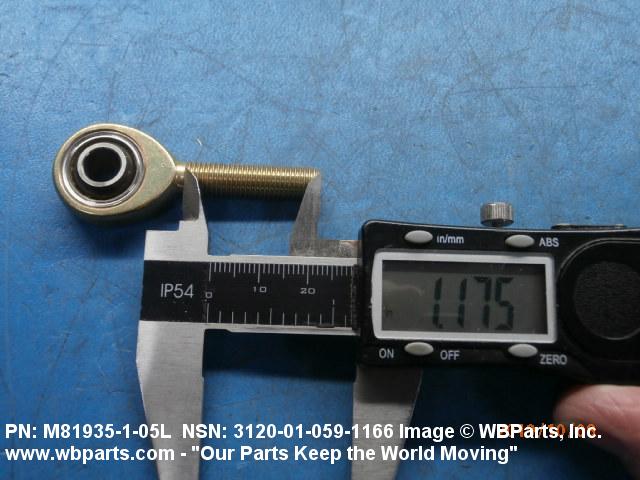

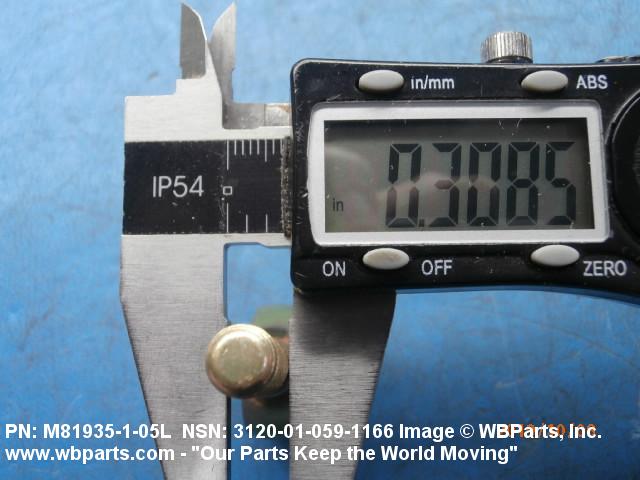

| INNER MEMBER WIDTH | 0.4350 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM |
| STATIC RADIAL LOAD RATING | 7180 POUNDS |
| SHANK STYLE | 1 EXTERNALLY THREADED |
| SHANK THREAD LENGTH | 1.1560 INCHES MINIMUM AND 1.2180 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD DIAMETER | 0.3120 INCHES NOMINAL |

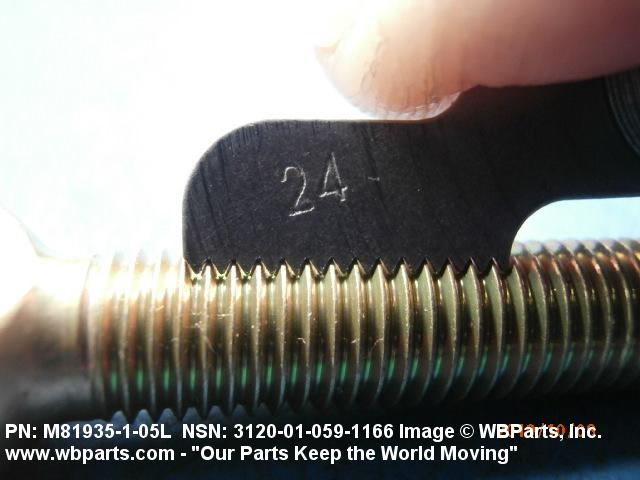

| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | LEFT-HAND |
