NSN 3120-00-541-0136 H3110, H3-110, FTM3410
Product Details | ROD END PLAIN BEARING
3120-00-541-0136 A detachable assembly in or on which a journal, gudgeon, pivot, or the like moves. It is used to carry a load and to reduce sliding friction. It does not employ rolling elements. The outer member of the assembly is modified to provide a shank. The inner member may be either a plain spherical bearing or a sleeve bearing. Excludes BEARING, PLAIN, SPHERICAL and BEARING, PLAIN, SELF-ALIGNING.
Part Alternates: H3110, H3-110, FTM3410, FTM34-10, K39, K3-9, 112133, 3120-00-541-0136, 00-541-0136, 3120005410136, 005410136
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-541-0136 | 13209 ( BEARING, PLAIN, ROD END ) |

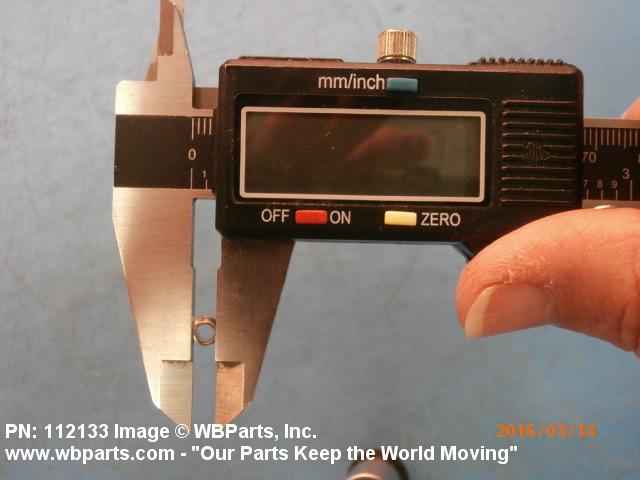

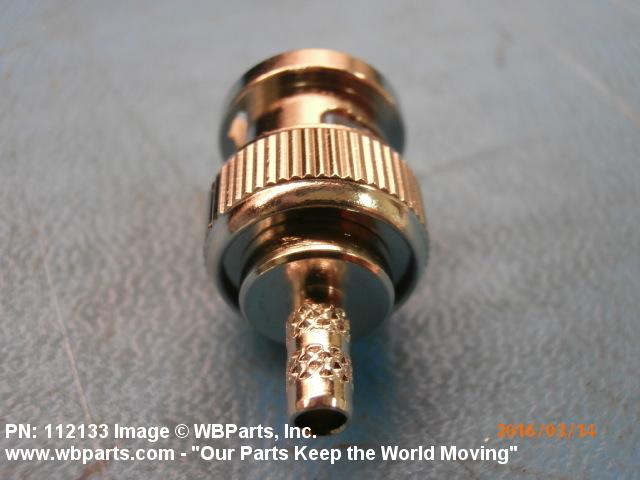

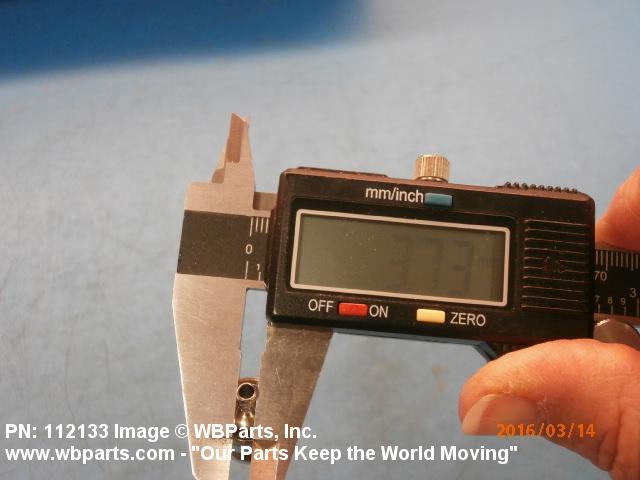

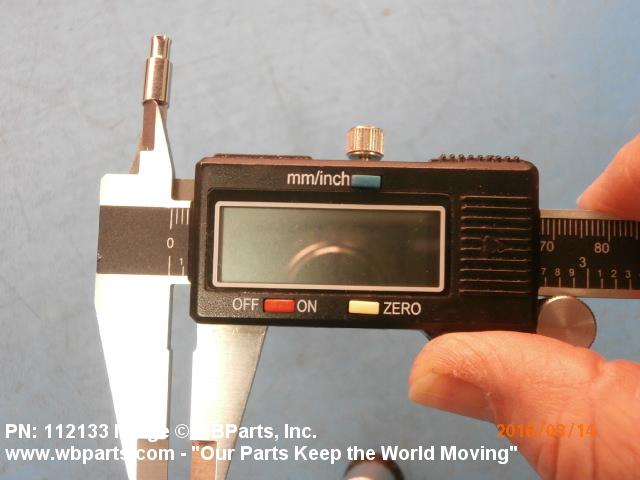

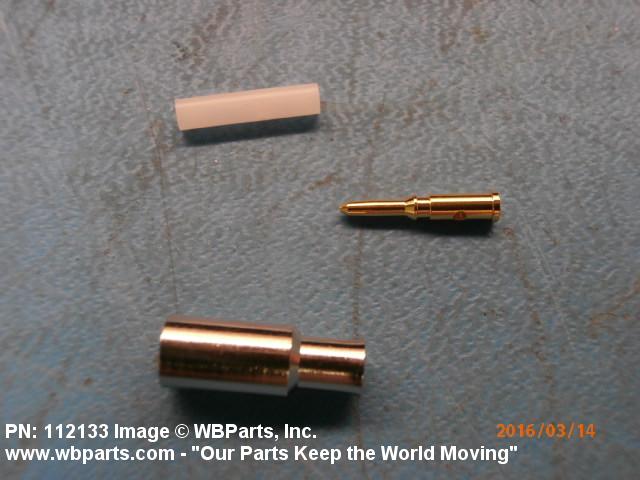

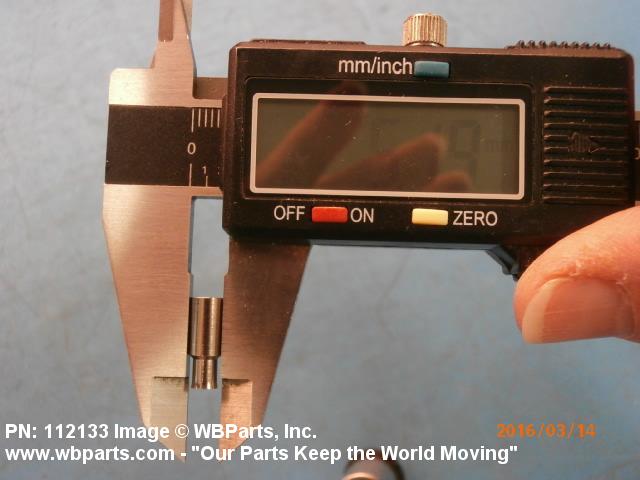

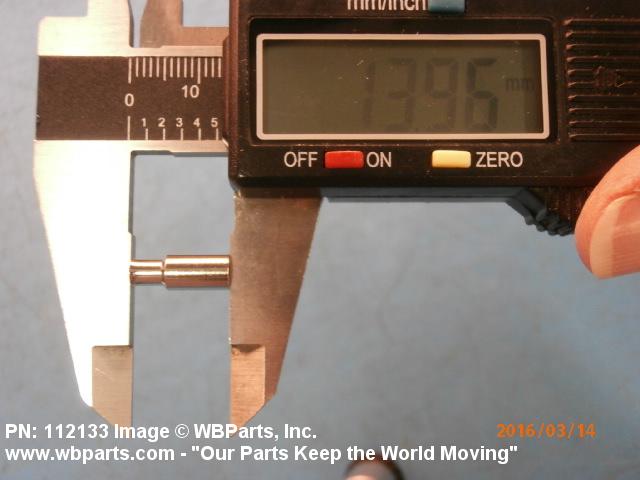

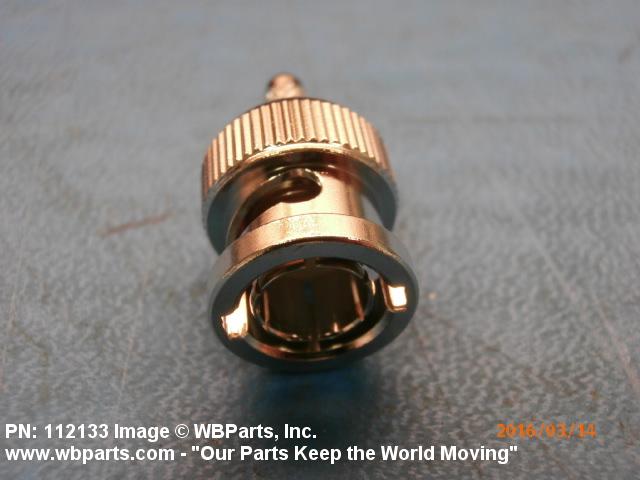

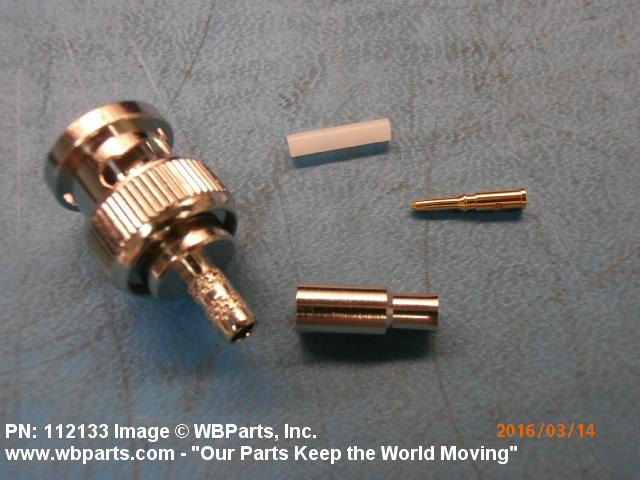

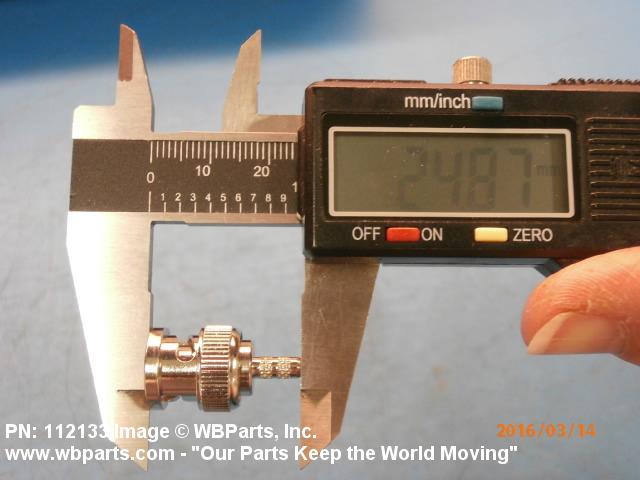

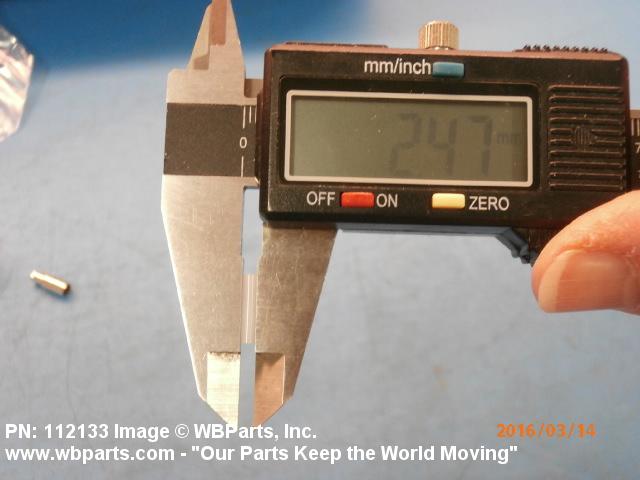

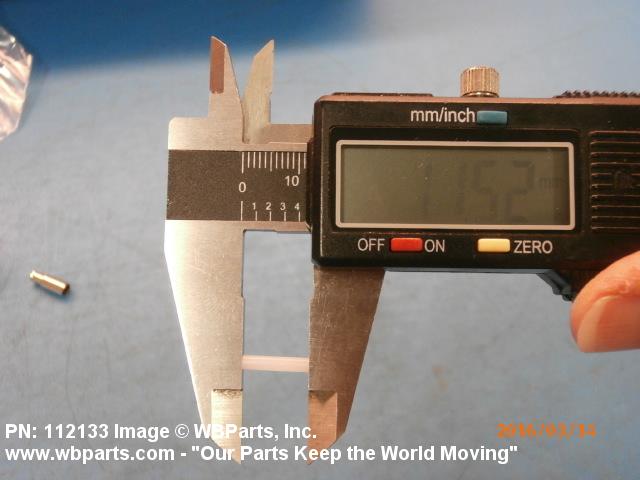

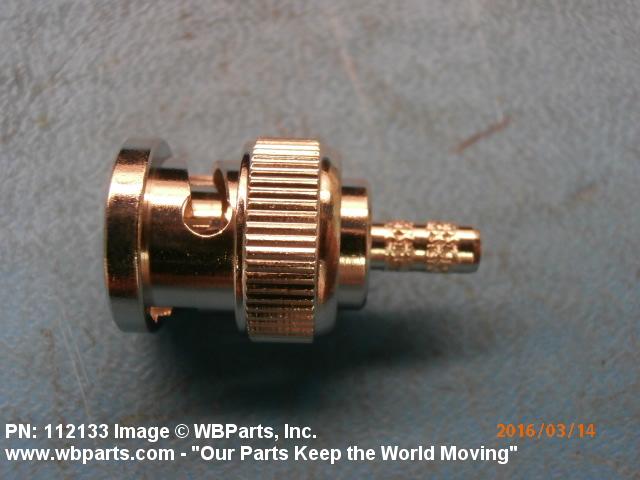

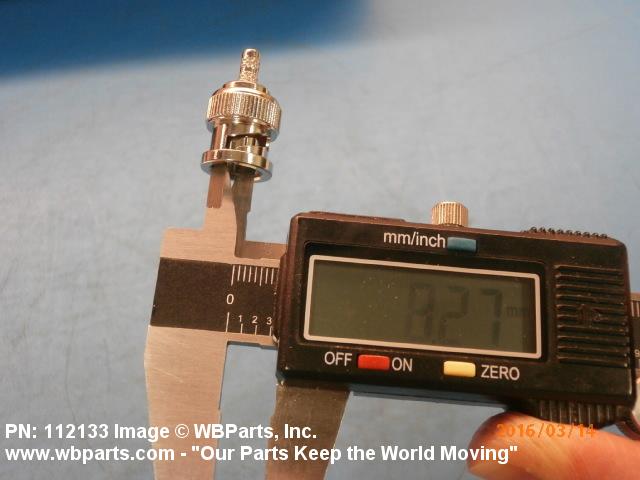

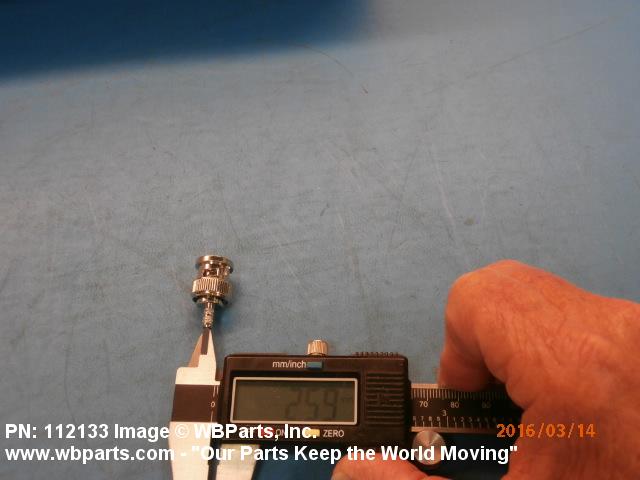

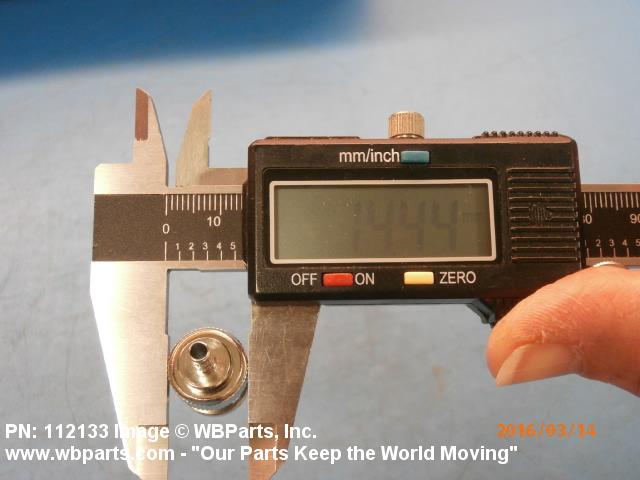

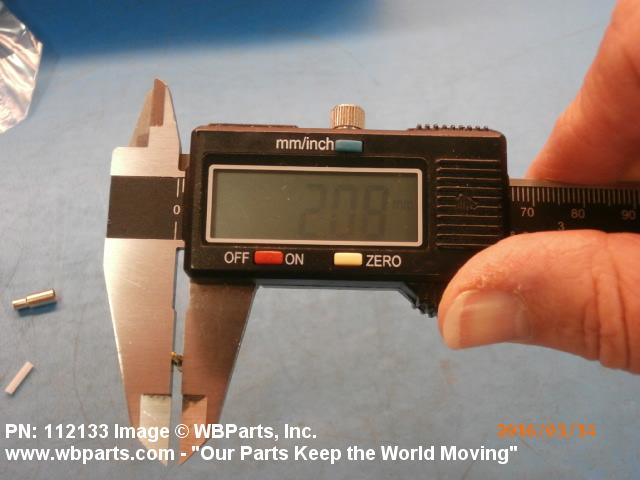

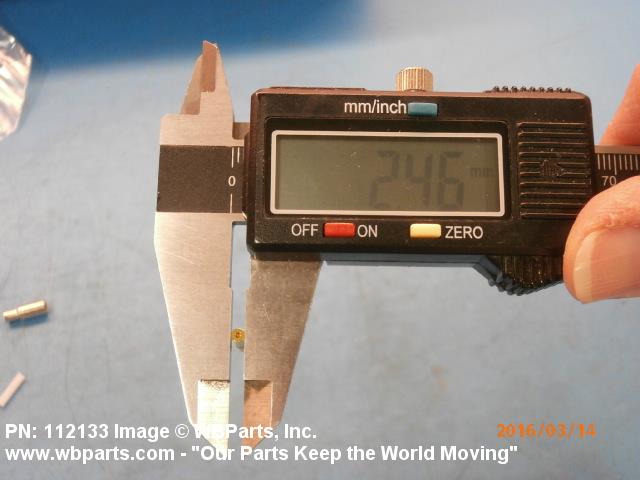

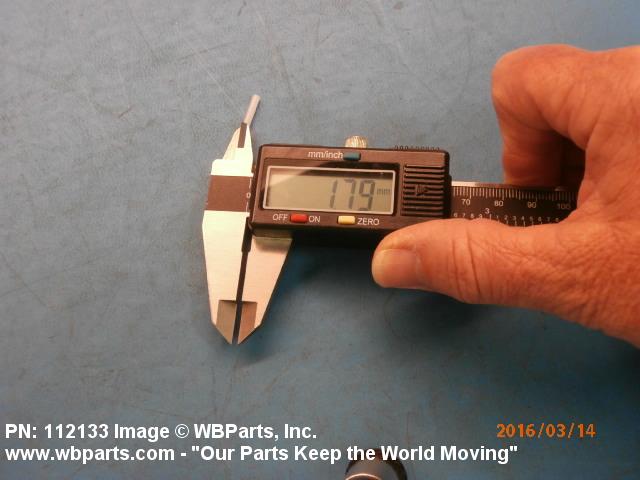

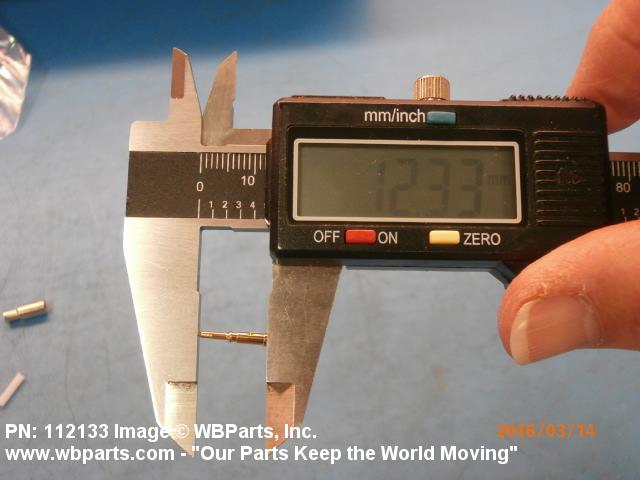

Drawings & Photos | NSN 3120-00-541-0136
Demand History | NSN 3120-00-541-0136
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 112133 | 2020-10-281 | 15 | DIBBS |
| FTM34-10 | 2020-10-281 | 15 | DIBBS |
| 112133 | 2020-06-155 | 15 | DIBBS |
| FTM34-10 | 2020-06-155 | 15 | DIBBS |
| 112133 | 2020-04-92 | 52 | DIBBS |
| FTM34-10 | 2020-04-92 | 52 | DIBBS |
| 112133 | 2016-02-54 | 10 | us |
Cross Reference | NSN 3120-00-541-0136
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 112133 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 112133 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 112133 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 112133 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| FTM34-10 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| H3-110 | 02758 | U S BEARINGS |
| K3-9 | 97613 | DOVER ENGINEERED SYSTEMS, INC. DBA KAHR BEARING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3120-00-541-0136
Related Products | NSN 3120-00-541-0136
Technical Data | NSN 3120-00-541-0136
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | 6 BALL TYPE |
| OVERALL LENGTH | 1.8970 INCHES NOMINAL |
| BORE DIAMETER | 0.1870 INCHES MINIMUM AND 0.1890 INCHES MAXIMUM |
| OUTER MEMBER OUTSIDE DIAMETER | 0.5930 INCHES NOMINAL |
| BORE CENTER TO SHANK END DISTANCE | 1.6000 INCHES NOMINAL |
| OUTER MEMBER WIDTH | 0.2380 INCHES MAXIMUM |
| INNER MEMBER WIDTH | 0.3070 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM |
| SHANK STYLE | 7 INTERNALLY THREADED W/HEXAGON END AND INSPECTION HOLE |
| SHANK THREAD LENGTH | 0.5625 INCHES NOMINAL |
| INSPECTION HOLE CENTER TO END DISTANCE | ANY ACCEPTABLE |
| SHANK WIDTH ACROSS WRENCH FLATS | 0.3650 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| THREAD DIAMETER | 0.250 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | INNER RACE MEMBER HEAT TREATED AND ELECTROLIZED,OUTER RACE MEMBER HEAT TREATED |
Restrictions/Controls & Freight Information | NSN 3120-00-541-0136
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3120-00-541-0136
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
