NSN 3110-01-353-7293 R1921EX7, 145DS6034, 145DS603-4
Product Details | CYLINDRICAL ROLLER BEARING
3110-01-353-7293 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: R1921EX7, 145DS6034, 145DS603-4, 3110-01-353-7293, 01-353-7293, 3110013537293, 013537293
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 FEB 1992 | 01-353-7293 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-01-353-7293
Demand History | NSN 3110-01-353-7293
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-353-7293 | 2018-09-248 | 34 | DIBBS |
| 3110-01-353-7293 | 2018-03-78 | 25 | DIBBS |
| 3110-01-353-7293 | 2018-03-77 | 3 | DIBBS |
| 3110-01-353-7293 | 2018-03-74 | 27 | DIBBS |
| 3110-01-353-7293 | 2018-02-46 | 2 | DIBBS |
| 3110-01-353-7293 | 2017-12-344 | 5 | DIBBS |
| 3110-01-353-7293 | 2017-08-242 | 81 | DIBBS |
| 3110-01-353-7293 | 2017-04-115 | 12 | DIBBS |
| 3110-01-353-7293 | 2017-03-87 | 9 | DIBBS |
| 3110-01-353-7293 | 2016-09-270 | 26 | DIBBS |
| 3110-01-353-7293 | 2016-06-164 | 15 | DIBBS |
| 3110-01-353-7293 | 2016-02-32 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-353-7293
Related Products | NSN 3110-01-353-7293
Technical Data | NSN 3110-01-353-7293
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP M50 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6490 (CEVM M50 STEEL) MFR REF SINGLE MATERIAL RESPONSE OVERALL |

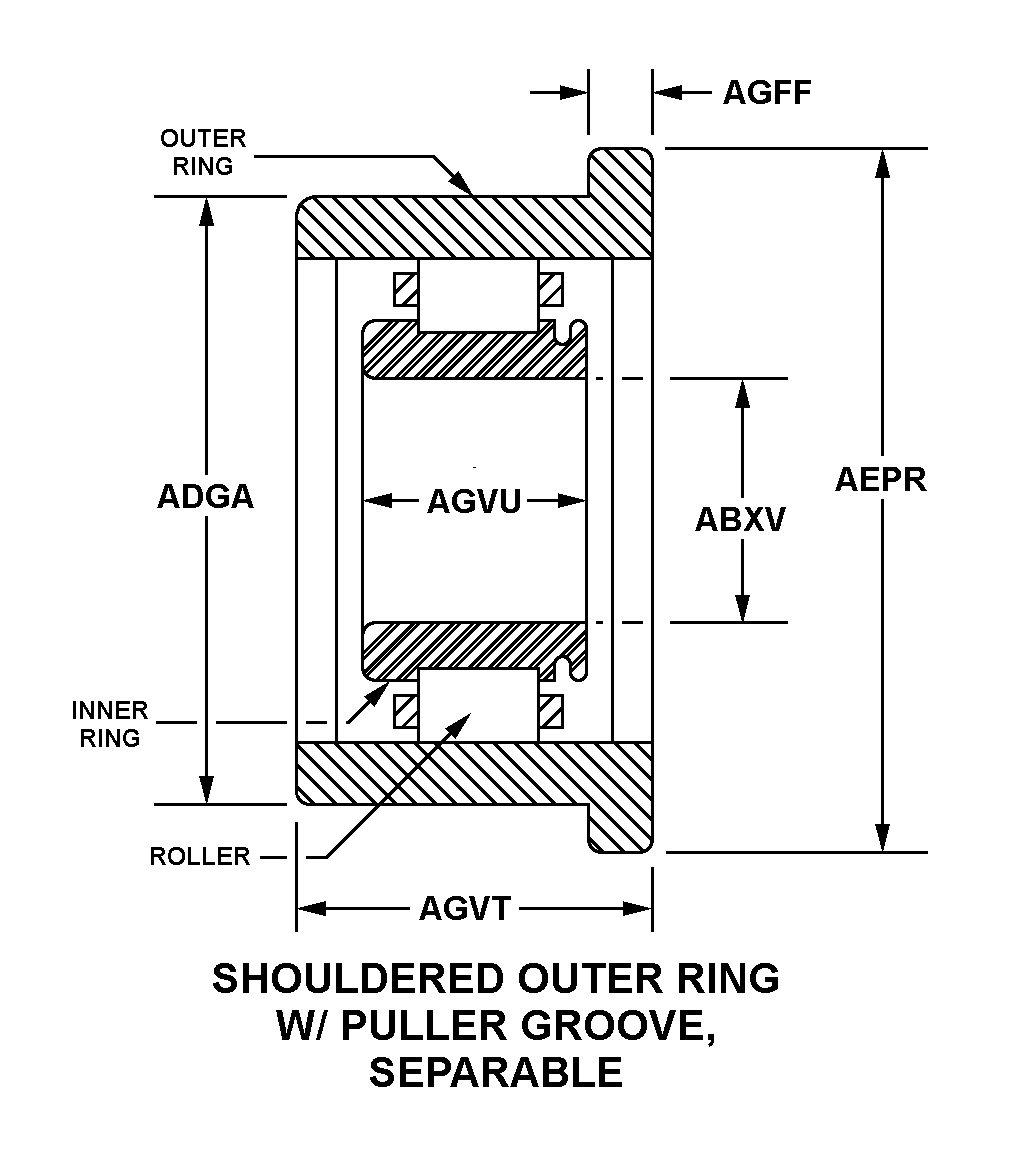

| STYLE DESIGNATOR | 283 SHOULDERED OUTER RING W/PULLER GROOVE, SEPARABLE |
| BORE DIAMETER | 4.4095 INCHES MINIMUM AND 4.4100 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 5.7083 INCHES MINIMUM AND 5.7087 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 6.5840 INCHES MINIMUM AND 6.5844 INCHES MAXIMUM |
| FLANGE WIDTH | 0.1150 INCHES MINIMUM AND 0.1350 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.7234 INCHES MINIMUM AND 0.7454 INCHES MAXIMUM |
| INNER RING WIDTH | 0.7234 INCHES MINIMUM AND 0.7454 INCHES MAXIMUM |
| BORE SHAPE | NONSTANDARD TAPER |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| SPECIAL FEATURES | FLIGHT SAFETY PART |
| III END ITEM IDENTIFICATION | CH-47D,CARGO HEL |
Restrictions/Controls & Freight Information | NSN 3110-01-353-7293
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-353-7293
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
