NSN 3110-01-314-6841 31311Y.K11.A80.120, 31311YK11A80120, 01-314-6841
Product Details | TAPERED ROLLER BEARING
3110-01-314-6841 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: 31311Y.K11.A80.120, 31311YK11A80120, 3110-01-314-6841, 01-314-6841, 3110013146841, 013146841
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 03 FEB 1990 | 01-314-6841 | 00021 ( BEARING, ROLLER, TAPERED ) |
Drawings & Photos | NSN 3110-01-314-6841
Demand History | NSN 3110-01-314-6841
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-314-6841 | 2018-01-25 | 1 | DIBBS |
| 3110-01-314-6841 | 2017-04-102 | 1 | DIBBS |
Cross Reference | NSN 3110-01-314-6841
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 31311Y.K11.A80.120 | 43991 | FAG BEARINGS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-314-6841
Related Products | NSN 3110-01-314-6841
Technical Data | NSN 3110-01-314-6841
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY CAGE STEEL CONE STEEL CUP STEEL ROLLER |

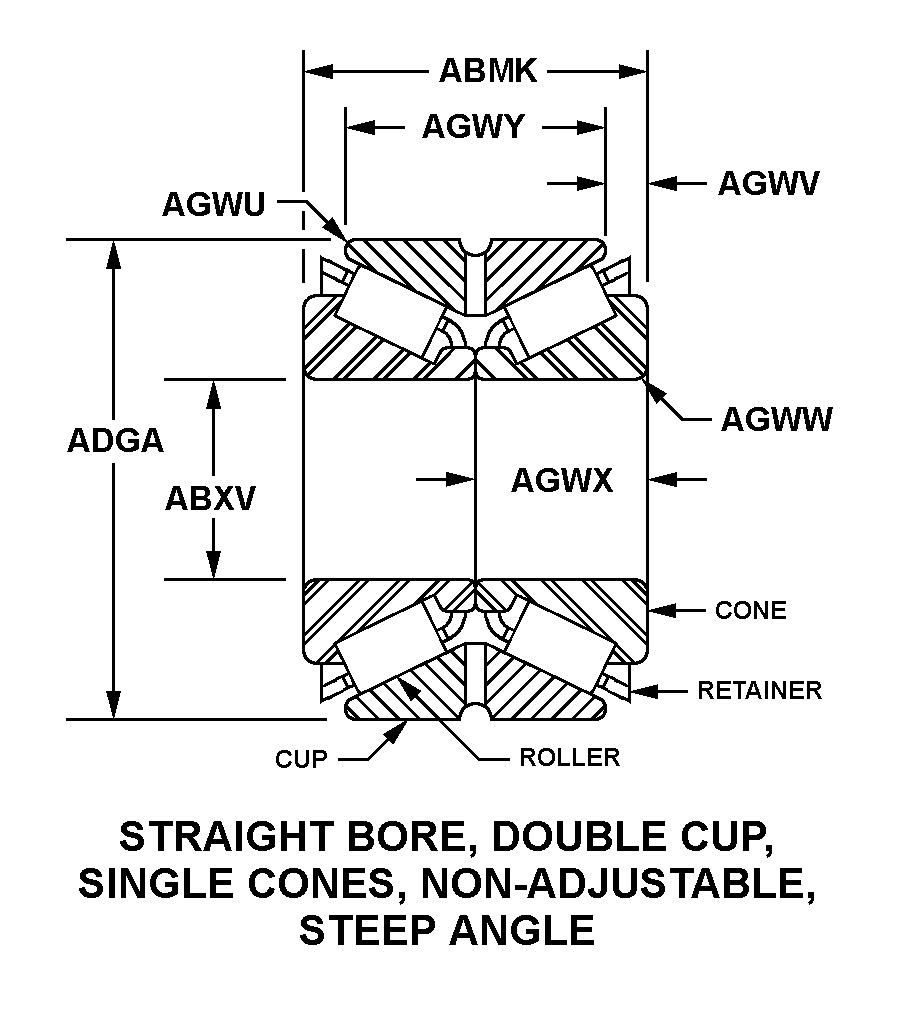

| STYLE DESIGNATOR | 382 STRAIGHT BORE, DOUBLE CUP, SINGLE CONES, NON-ADJUSTABLE, STEEP ANGLE |
| OVERALL WIDTH | 63.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 55.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 120.0 MILLIMETERS NOMINAL |
| CONE WIDTH | 29.0 MILLIMETERS NOMINAL |
| CUP WIDTH | 63.0 MILLIMETERS NOMINAL |
| ALIGNMENT TYPE | RIGID |
Restrictions/Controls & Freight Information | NSN 3110-01-314-6841
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-314-6841
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
