NSN 3110-01-314-8538 2910317, 01-314-8538, 013148538
Product Details | BEARING RETAINING PLATE
3110-01-314-8538 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 2910317, 3110-01-314-8538, 01-314-8538, 3110013148538, 013148538
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 FEB 1990 | 01-314-8538 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-314-8538
Demand History | NSN 3110-01-314-8538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-314-8538 | 2024-07-185 | 8 | DIBBS |
| 3110-01-314-8538 | 2024-06-177 | 8 | DIBBS |
| 3110-01-314-8538 | 2023-12-339 | 17 | DIBBS |
| 3110-01-314-8538 | 2022-09-258 | 17 | DIBBS |
| 3110-01-314-8538 | 2021-01-28 | 8 | DIBBS |
| 3110-01-314-8538 | 2020-09-252 | 1 | DIBBS |
| 3110-01-314-8538 | 2020-08-243 | 1 | DIBBS |
Cross Reference | NSN 3110-01-314-8538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2910317 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-314-8538
Related Products | NSN 3110-01-314-8538
Technical Data | NSN 3110-01-314-8538
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B211,T6 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 3,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

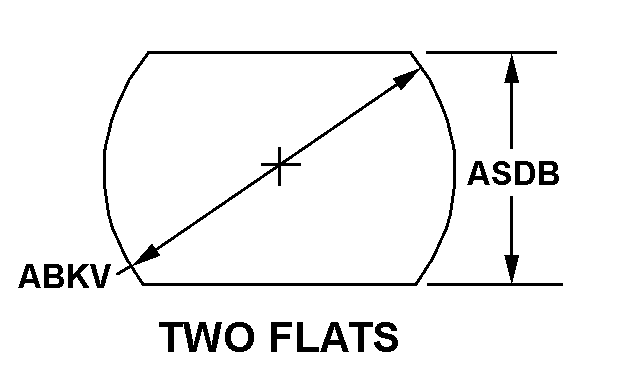

| STYLE DESIGNATOR | B6 TWO FLATS |
| OUTSIDE DIAMETER | 2.410 INCHES MINIMUM AND 2.470 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 1.910 INCHES MINIMUM AND 1.970 INCHES MAXIMUM |

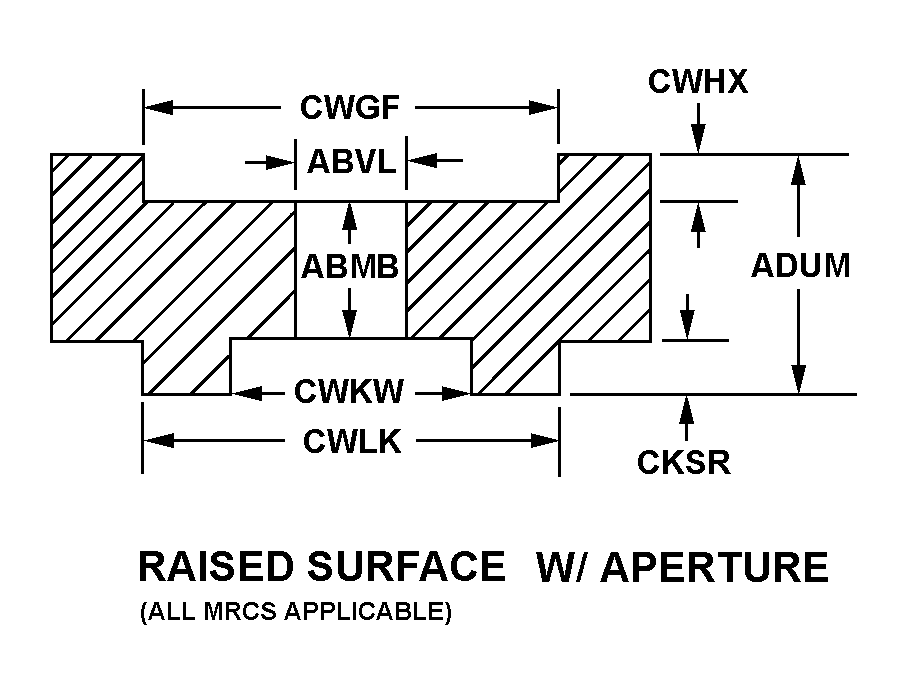

| CROSS-SECTIONAL SHAPE STYLE | C12A RAISED SURFACE WITH APERTURE |
