NSN 3110-01-314-5568 38605161, 3860516-1, 01-314-5568
Product Details | CYLINDRICAL ROLLER BEARING
3110-01-314-5568 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: 38605161, 3860516-1, 3110-01-314-5568, 01-314-5568, 3110013145568, 013145568
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 FEB 1990 | 01-314-5568 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-01-314-5568
Demand History | NSN 3110-01-314-5568
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3860516-1 | 2024-08-235 | 8 | DIBBS |
| 3860516-1 | 2024-08-227 | 8 | DIBBS |
| 3860516-1 | 2024-08-219 | 8 | DIBBS |
| 3860516-1 | 2023-03-68 | 6 | DIBBS |
| 3860516-1 | 2023-03-60 | 6 | DIBBS |
Cross Reference | NSN 3110-01-314-5568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3860516-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-314-5568
Related Products | NSN 3110-01-314-5568
Technical Data | NSN 3110-01-314-5568
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP M50 INNER RING STEEL COMP M50 OUTER RING STEEL COMP M50 ROLLER STEEL COMP 4340 SEPARATOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6491 M50 ASSN STD SINGLE MATERIAL RESPONSE INNER RING AMS6491 M50 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AMS6491 M50 ASSN STD SINGLE MATERIAL RESPONSE ROLLER AMS6415 SAE4340 ASSN STD SINGLE MATERIAL RESPONSE SEPARATOR |
| SURFACE TREATMENT | SILVER OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2410 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

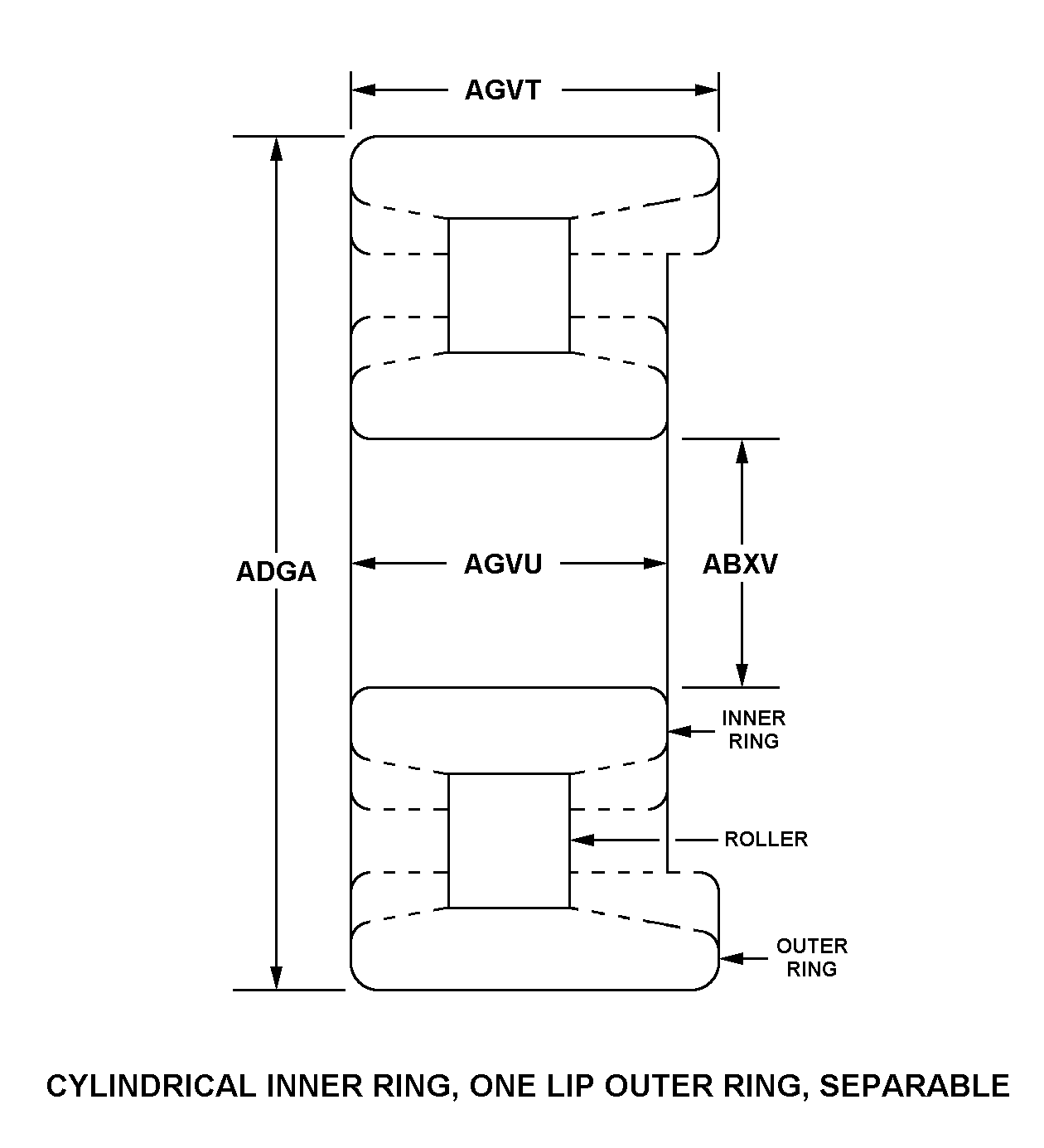

| STYLE DESIGNATOR | 269A CYLINDRICAL INNER RING, ONE LIP OUTER RING, SEPARABLE |
| BORE DIAMETER | 2.0025 INCHES MINIMUM AND 2.0151 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.1651 INCHES MINIMUM AND 2.1654 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.3887 INCHES MINIMUM AND 0.3937 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 3860516-1 |
Restrictions/Controls & Freight Information | NSN 3110-01-314-5568
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-314-5568
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
