NSN 3110-01-041-9735 HRT7CTK11, HRT-7CTK-11, 01-041-9735

Product Details | NEEDLE BEARING CAM FOLLOWER

3110-01-041-9735 An assembly consisting of a roller and stud used to effect a rolling contact with a cam, and convert the reciprocating or oscillating motion to linear motion.

Part Alternates: HRT7CTK11, HRT-7CTK-11, 3110-01-041-9735, 01-041-9735, 3110010419735, 010419735

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	04 JUN 1977	01-041-9735	00040 ( CAM FOLLOWER, NEEDLE BEARING )

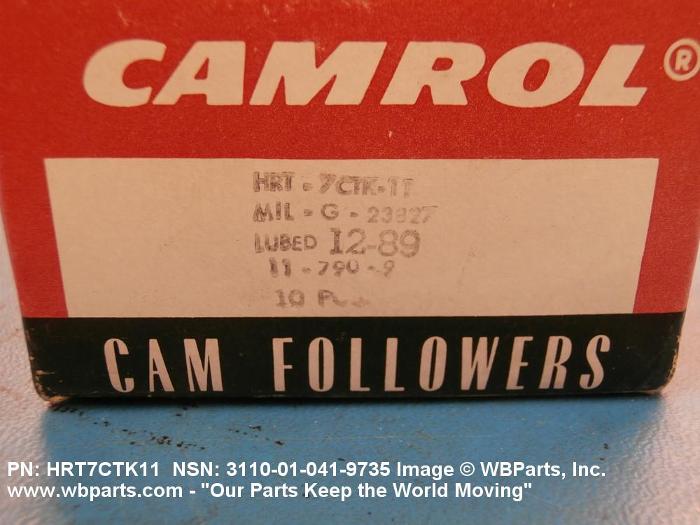

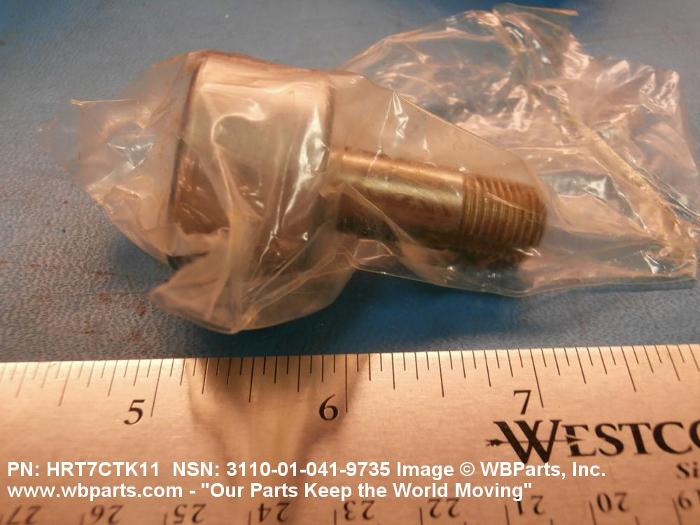

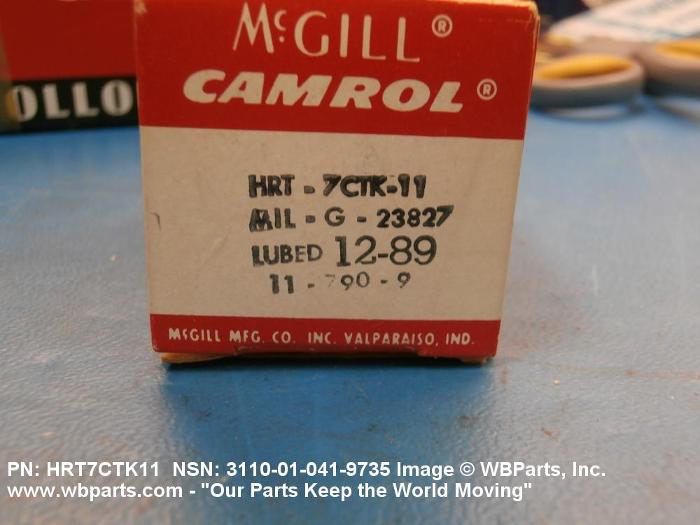

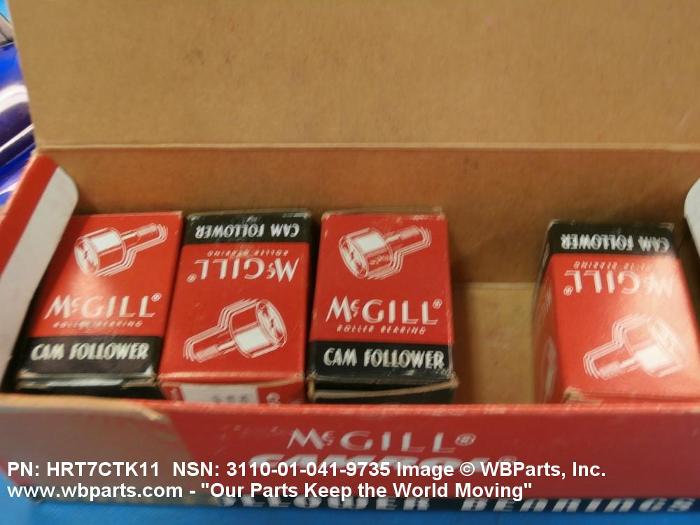

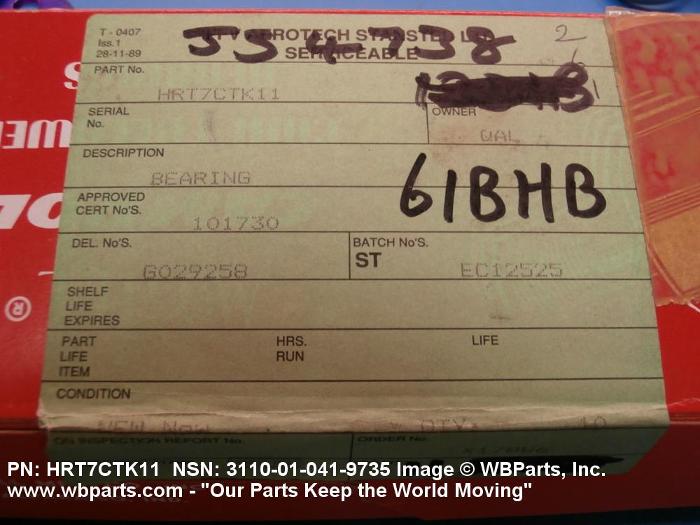

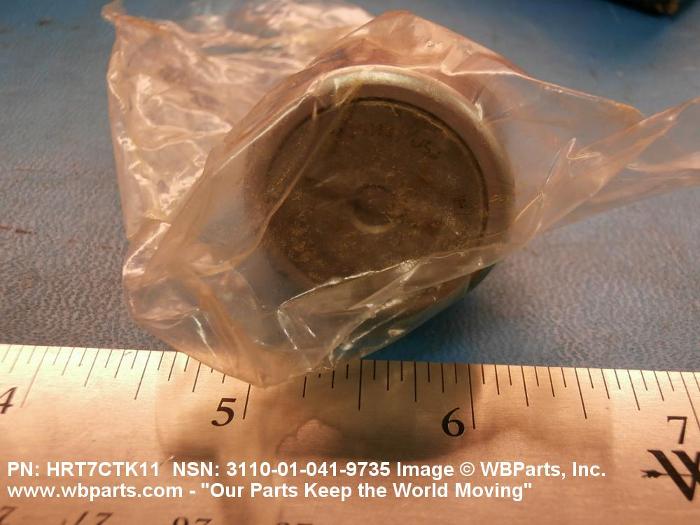

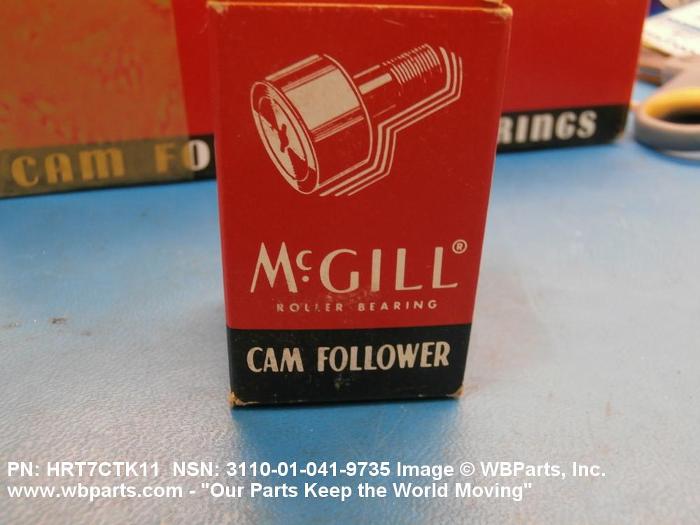

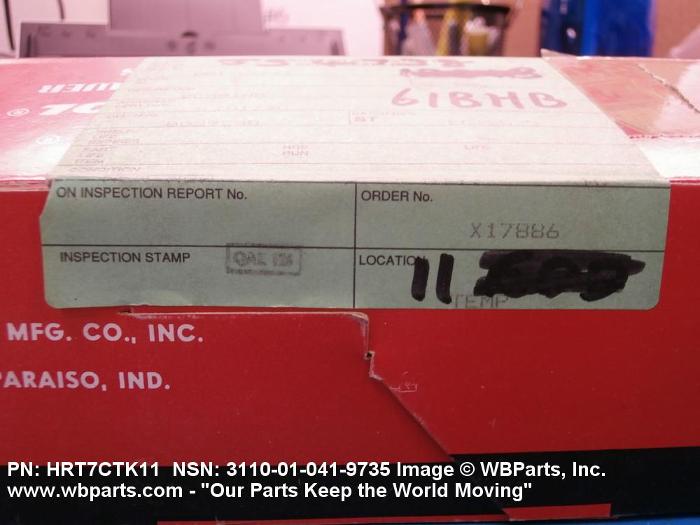

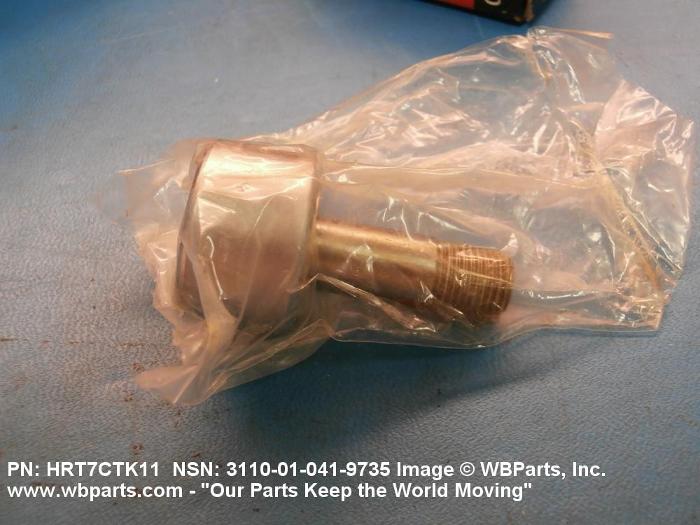

Drawings & Photos | NSN 3110-01-041-9735

Part Number	Request Date	QTY	Origin
3110-01-041-9735	2024-06-157	25	US
3110-01-041-9735	2024-06-156	10	United States
3110-01-041-9735	2021-01-26	24	United States
HRT-7CTK-11	2021-01-19	61	DIBBS
HRT-7CTK-11	2021-01-11	61	DIBBS
HRT-7CTK-11	2020-11-309	103	DIBBS
HRT-7CTK-11	2020-03-85	79	DIBBS
HRT-7CTK-11	2020-03-77	79	DIBBS
3110-01-041-9735	2019-03-84	2	United States
HRT-7CTK-11	2019-03-65	71	DIBBS
HRT-7CTK-11	2019-01-08	71	DIBBS
3110-01-041-9735	2016-02-49	35	DIBBS
3110-01-041-9735	2016-02-40	35	DIBBS
3110-01-041-9735	2013-06-171	81	DIBBS
3110-01-041-9735	2013-06-156	81	DIBBS
3110-01-041-9735	2013-05-133	81	DIBBS
3110-01-041-9735	2013-04-118	81	DIBBS
HRT7CTK11	2013-02-59	4	United States
HRT7CTK11	2013-01-14	4	US
3110-01-041-9735	2012-07-193	19	DIBBS
HRT7CTK11	2012-04-109	2	United States
3110-01-041-9735	2012-04-96	9	DIBBS
HRT7CTK11	2010-10-302	6	US
3110-01-041-9735	2008-07-185	75	DIBBS
HRT7CTK11	2008-05-136	6	US
3110-01-041-9735	2007-08-236	5	DIBBS
3110-01-041-9735	2007-07-193	5	DIBBS
HRT7CTK11	2006-06-153	110	US
3110-01-041-9735	2006-05-151	110	US
HRT7CTK11	2006-05-151	110	US

Cross Reference | NSN 3110-01-041-9735

Part Number	Cage Code	Manufacturer
HRT-7CTK-11	39317	MCGILL MANUFACTURING COMPANY INC USE CAGE CODE 92563 FOR CATALOGING.
HRT-7CTK-11	92563	MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-041-9735

Compare

Related Products | NSN 3110-01-041-9735

3110-01-041-9736, 3110-01-042-0474, 3110-01-042-0475, 3110-01-042-0552, 3110-01-042-0553

Technical Data | NSN 3110-01-041-9735

Characteristic	Specifications
MATERIAL	STEEL END PLATE STEEL COMP E52100 OUTER RING STEEL COMP E52100 ROLLER STEEL COMP E52100 SNAP RING
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE OUTER RING 66 FED STD SINGLE MATERIAL RESPONSE ROLLER 66 FED STD SINGLE MATERIAL RESPONSE SNAP RING
SURFACE TREATMENT	CADMIUM END PLATE EXPOSED SURFACES CHROMIUM OUTER RING CADMIUM STUD
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE END PLATE EXPOSED SURFACES QQ-C-320,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE STUD
STYLE DESIGNATOR	440 CAM FOLLOWER
THREAD LENGTH	0.5620 INCHES NOMINAL
OVERALL LENGTH	2.1094 INCHES MINIMUM AND 2.1718 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	1.2480 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM
STUD DIAMETER	0.5000 INCHES MINIMUM AND 0.5010 INCHES MAXIMUM
OUTER RING WIDTH	0.7450 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM
STUD LENGTH	1.3438 INCHES MINIMUM AND 1.4062 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	0.500 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SPECIAL FEATURES	NAS-516-1 LUBRICATOR IN STUD END,KEYWAY IN STUD 0.1260 IN. WIDE 0.0670 IN DEEP 0.5930 IN. LONG

Restrictions/Controls & Freight Information | NSN 3110-01-041-9735

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-041-9735

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
