NSN 3110-01-555-2938 KRP244700BTZ105, KRP244700BTZ-105, 68B411092

Product Details | NEEDLE BEARING CAM FOLLOWER

3110-01-555-2938 An assembly consisting of a roller and stud used to effect a rolling contact with a cam, and convert the reciprocating or oscillating motion to linear motion.

Part Alternates: KRP244700BTZ105, KRP244700BTZ-105, 68B411092, 68B411092105, 68B411092-105, 3110-01-555-2938, 01-555-2938, 3110015552938, 015552938

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	31 AUG 2007	01-555-2938	00040 ( CAM FOLLOWER, NEEDLE BEARING )

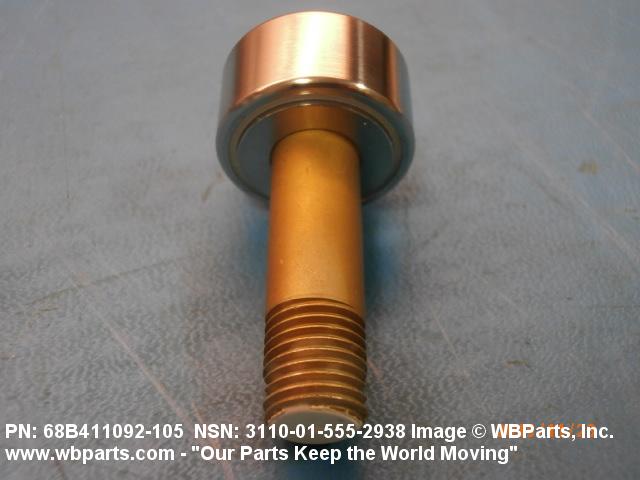

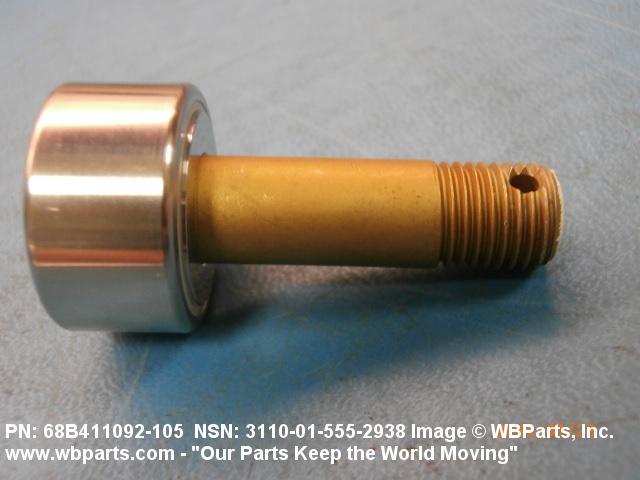

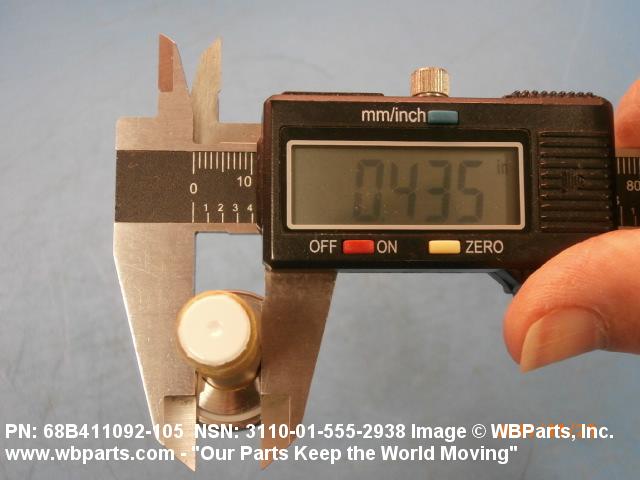

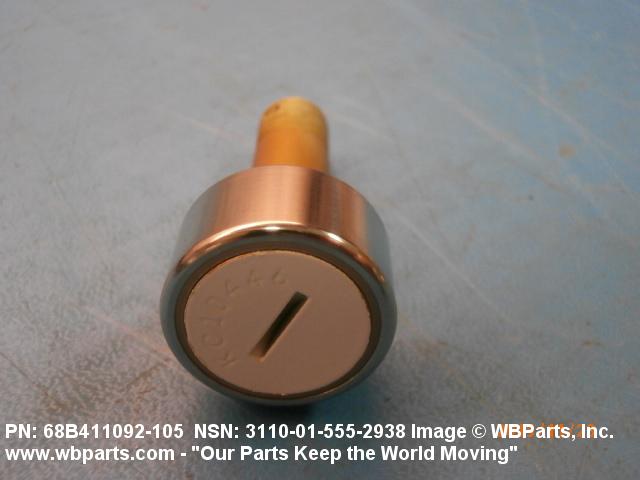

Drawings & Photos | NSN 3110-01-555-2938

Part Number	Request Date	QTY	Origin
3110-01-555-2938	2020-06-180	3	SA
68B411092105	2019-11-316	1	United States
68B411092105	2017-09-258	100	US
3110-01-555-2938	2015-11-315	1	United States
3110-01-555-2938	2015-10-300	1	United States
3110-01-555-2938	2015-05-132	1	United States
3110-01-555-2938	2010-03-64	175	DIBBS
3110-01-555-2938	2010-01-07	404	DIBBS
3110-01-555-2938	2009-10-280	36	DIBBS
3110-01-555-2938	2009-09-252	194	DIBBS
3110-01-555-2938	2009-08-216	93	DIBBS
3110-01-555-2938	2009-06-152	337	DIBBS
3110-01-555-2938	2009-05-135	28	DIBBS
3110-01-555-2938	2008-06-165	157	DIBBS
3110-01-555-2938	2008-05-141	300	DIBBS

Cross Reference | NSN 3110-01-555-2938

Part Number	Cage Code	Manufacturer
68B411092	76301	BOEING COMPANY, THE DBA BOEING
68B411092-105	50632	KAMATICS CORPORATION
68B411092-105	76301	BOEING COMPANY, THE DBA BOEING
KRP244700BTZ-105	50632	KAMATICS CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-555-2938

Compare

Related Products | NSN 3110-01-555-2938

3110-01-555-2950, 3110-01-555-2959, 3110-01-555-2999, 3110-01-555-3017, 3110-01-555-3048

Technical Data | NSN 3110-01-555-2938

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	440 CAM FOLLOWER

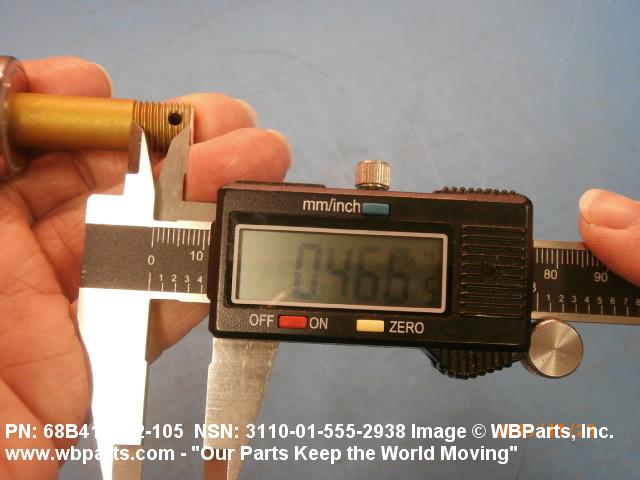

THREAD LENGTH	0.4220 INCHES NOMINAL

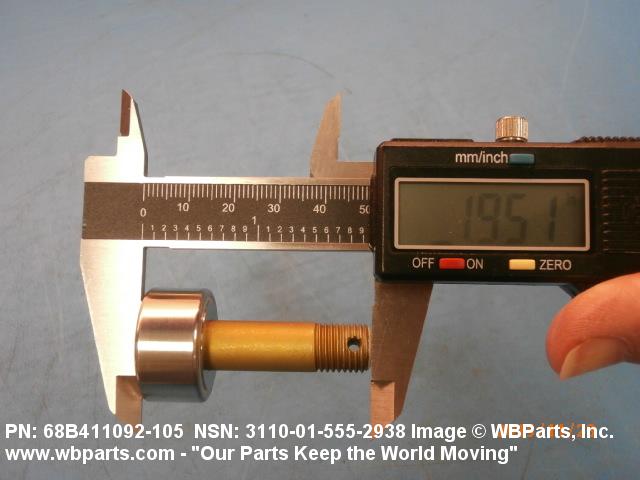

OVERALL LENGTH	1.9200 INCHES NOMINAL

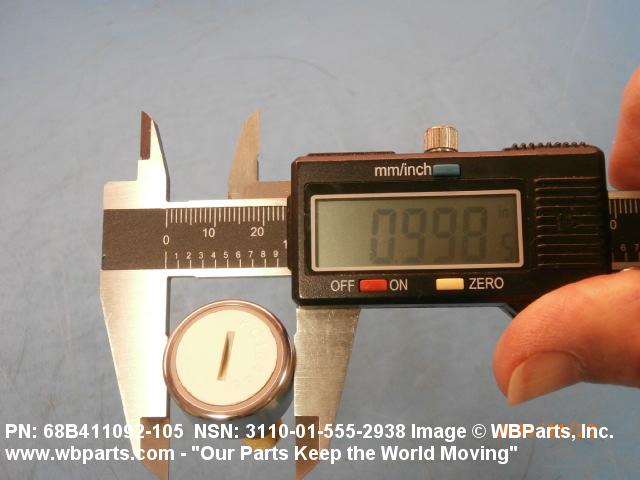

OVERALL OUTSIDE DIAMETER	1.0000 INCHES NOMINAL

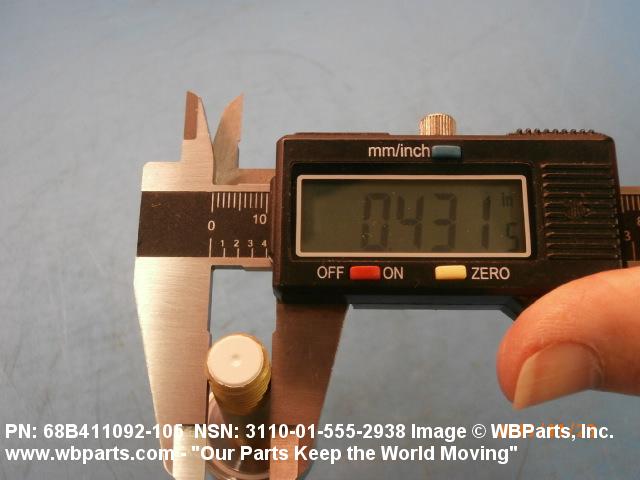

STUD DIAMETER	0.4370 INCHES NOMINAL

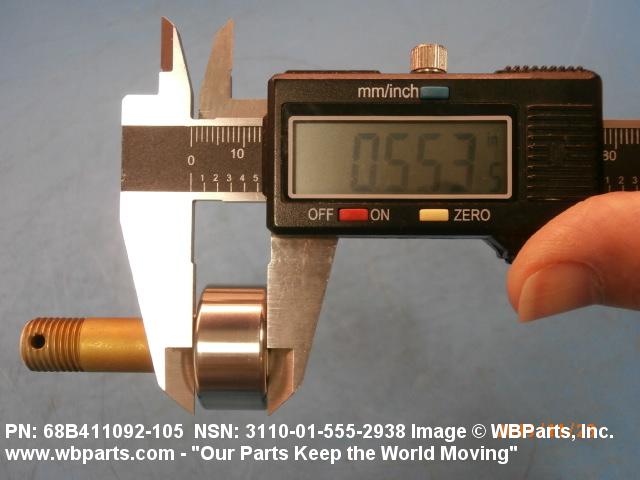

OUTER RING WIDTH	0.5310 INCHES NOMINAL

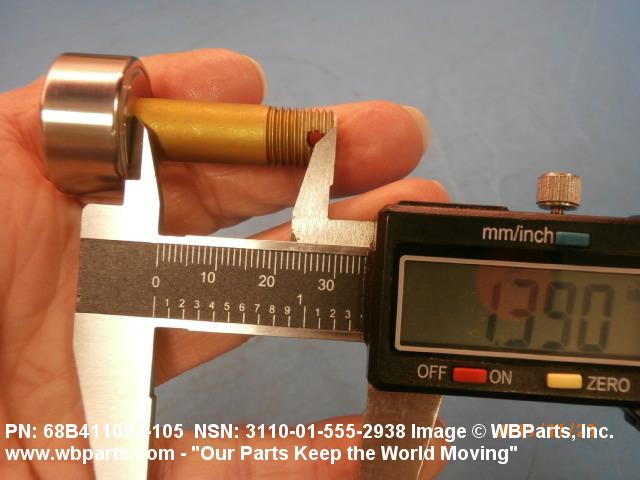

STUD LENGTH	1.3890 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.437 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
SEAL QUANTITY	2
III END ITEM IDENTIFICATION	F-15 AIRCRAFT
III PART NAME ASSIGNED BY CONTROLLING AGENCY	CAM FOLLOWER UPLOCK-MLG AND NOSE LANDING GEAR

Restrictions/Controls & Freight Information | NSN 3110-01-555-2938

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114800	BEARING,ROLLER,THRUST
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-555-2938

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	LE	SU:LANDING GEAR SYSTEMS AND COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
