NSN 3110-01-325-2039 SK1103, SK-1103, 01-325-2039
Product Details | NEEDLE BEARING CAM FOLLOWER
3110-01-325-2039 An assembly consisting of a roller and stud used to effect a rolling contact with a cam, and convert the reciprocating or oscillating motion to linear motion.
Part Alternates: SK1103, SK-1103, 3110-01-325-2039, 01-325-2039, 3110013252039, 013252039
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 30 AUG 1990 | 01-325-2039 | 00040 ( CAM FOLLOWER, NEEDLE BEARING ) |

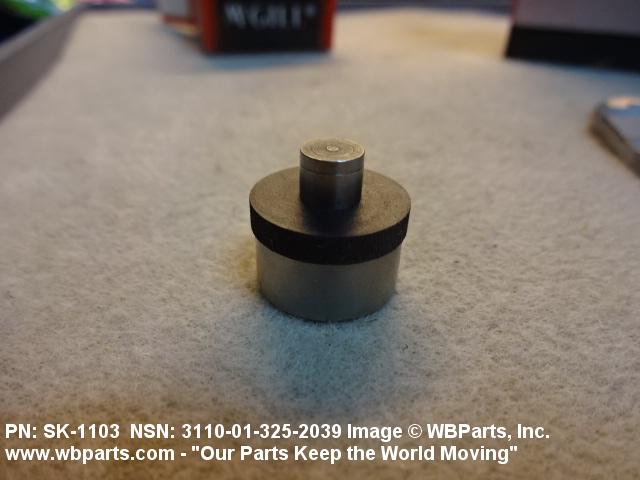

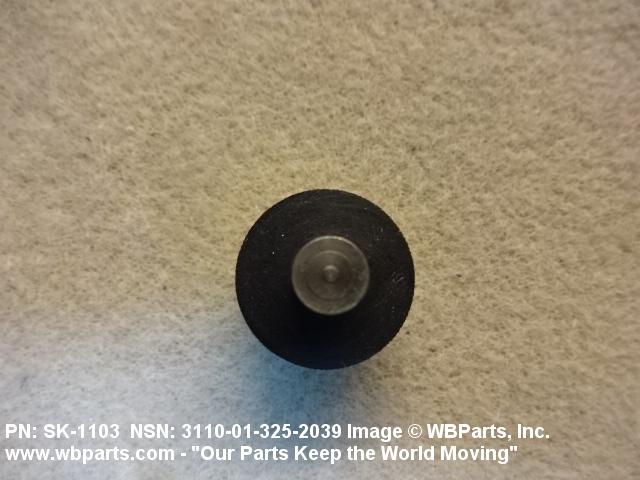

Drawings & Photos | NSN 3110-01-325-2039
Demand History | NSN 3110-01-325-2039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-325-2039 | 2019-02-45 | 6 | United States |
| 3110-01-325-2039 | 2019-02-45 | 10 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-325-2039

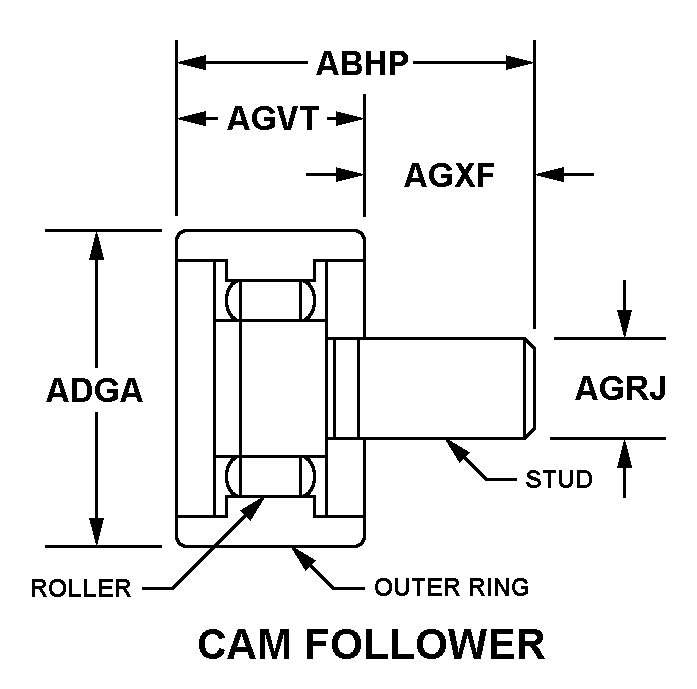

Technical Data | NSN 3110-01-325-2039
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 447 CAM FOLLOWER |

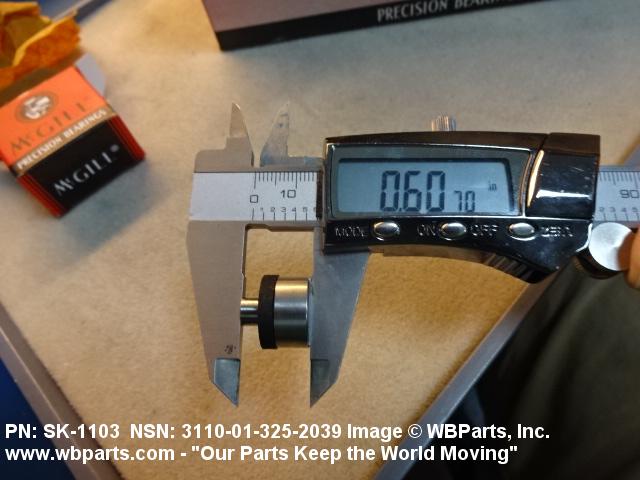

| OVERALL LENGTH | 0.6191 INCHES NOMINAL |

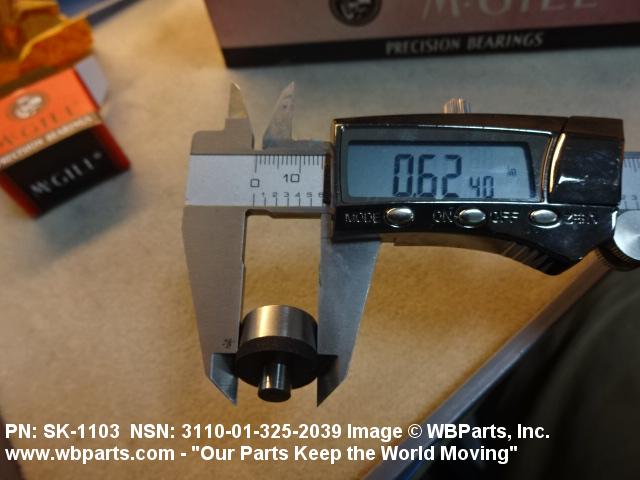

| OVERALL OUTSIDE DIAMETER | 0.6200 INCHES MINIMUM AND 0.6300 INCHES MAXIMUM |

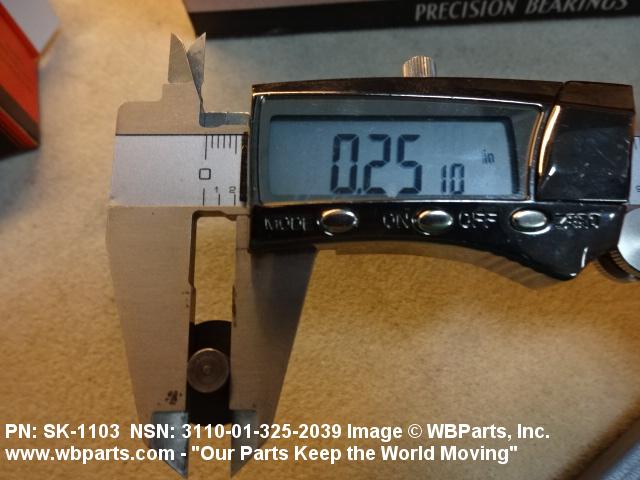

| STUD DIAMETER | 0.2509 INCHES MINIMUM AND 0.2512 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.2900 INCHES MINIMUM AND 0.2910 INCHES MAXIMUM |

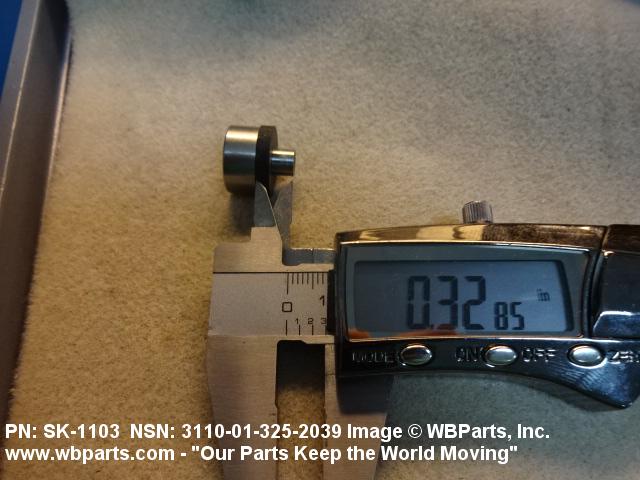

| STUD LENGTH | 0.3281 INCHES NOMINAL |
| RETAINER FABRICATION METHOD | PRESSED |
Restrictions/Controls & Freight Information | NSN 3110-01-325-2039
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-325-2039
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
