NSN 3110-00-891-9972 R108KE2X, 205-040-105, 2050401051
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-891-9972 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: R108KE2X, 205-040-105, 2050401051, 205-040-105-1, 3110-00-891-9972, 00-891-9972, 3110008919972, 205040105, 008919972
Bearings | Bearings, Antifriction, Unmounted
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
31 | 01 JAN 1960 | 00-891-9972 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Demand History | NSN 3110-00-891-9972
Part Number | Request Date | QTY | Origin |
---|---|---|---|
3110-00-891-9972 | 2019-11-18 | 4 | DIBBS |
3110-00-891-9972 | 2018-10-09 | 2 | DIBBS |
3110-00-891-9972 | 2014-11-27 | 1 | DIBBS |
3110-00-891-9972 | 2014-06-02 | 4 | DIBBS |
3110-00-891-9972 | 2014-05-13 | 4 | DIBBS |
3110-00-891-9972 | 2014-03-05 | 4 | DIBBS |
3110-00-891-9972 | 2014-02-25 | 4 | DIBBS |
3110-00-891-9972 | 2009-05-07 | 1 | Chile |
Cross Reference | NSN 3110-00-891-9972
Part Number | Cage Code | Manufacturer |
---|---|---|
205-040-105 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
205-040-105 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
205-040-105 | 97499 | BELL HELICOPTER TEXTRON INC. |
205-040-105-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
R108KE2X | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-891-9972
Related Products | NSN 3110-00-891-9972
Technical Data | NSN 3110-00-891-9972
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OUTER RING COPPER ALLOY RETAINER STEEL ROLLER |
MATERIAL DOCUMENT AND CLASSIFICATION | FED-STD-66 FED STD SINGLE MATERIAL RESPONSE OUTER RING 205-040-105,81996 MFR REF SINGLE MATERIAL RESPONSE RETAINER FED-STD-66 FED STD SINGLE MATERIAL RESPONSE ROLLER |

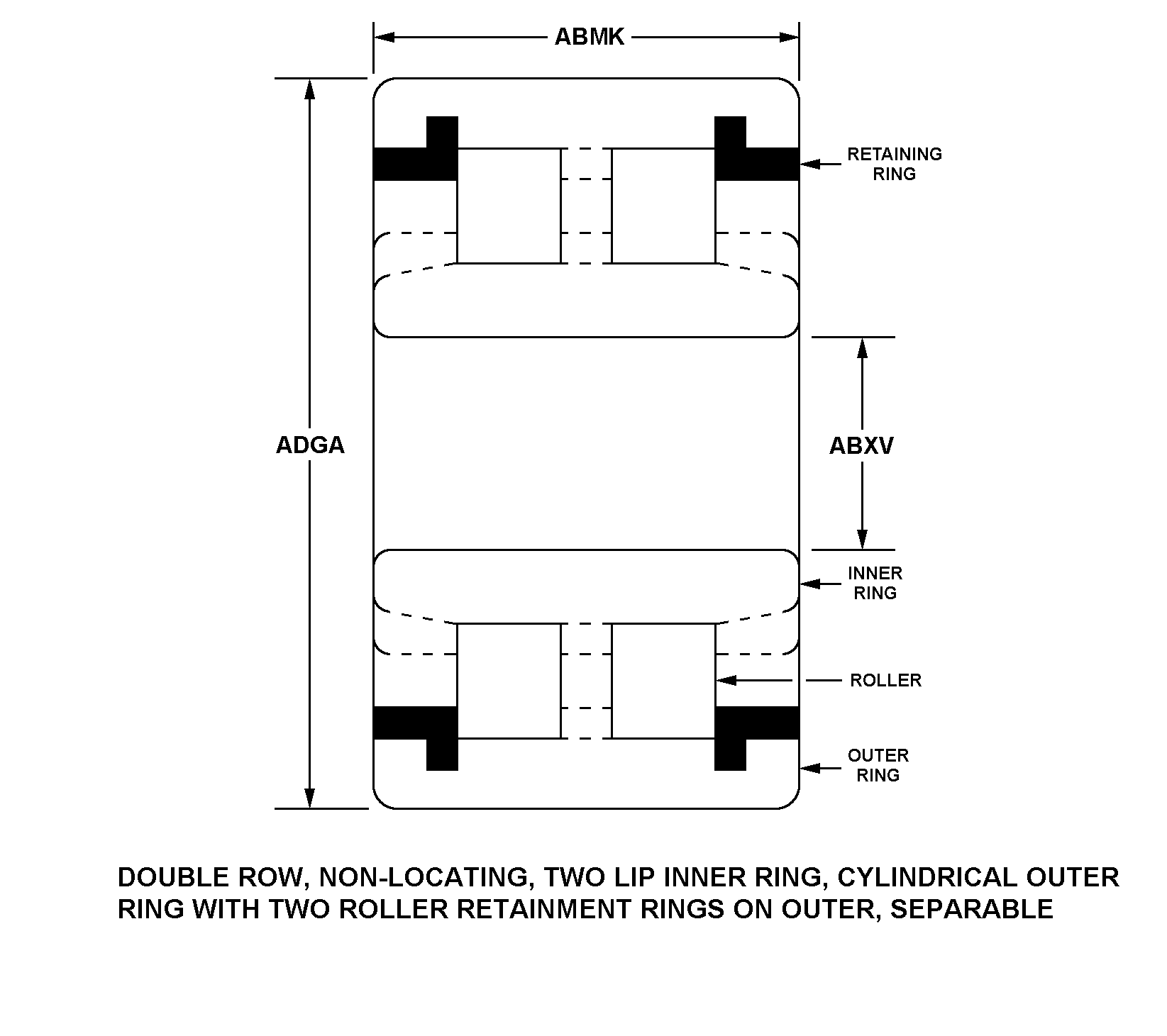

STYLE DESIGNATOR | 260A DOUBLE ROW, NON-LOCATING, TWO LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, SEPARABLE |
OVERALL WIDTH | 0.5856 INCHES MINIMUM AND 0.5906 INCHES MAXIMUM |
BORE DIAMETER | 1.7717 INCHES MINIMUM AND 1.7722 INCHES MAXIMUM |
OVERALL OUTSIDE DIAMETER | 2.6768 INCHES MINIMUM AND 2.6772 INCHES MAXIMUM |
BORE SHAPE | STRAIGHT |
SURFACE FINISH | GROUND |
RETAINER FABRICATION METHOD | MACHINED |
LOCATING FEATURE | NONLOCATING |
INTERNAL FIT-UP DESIGNATION | STANDARD |
SPECIAL FEATURES | BEARING SUITABLE FOR OPERATION FROM M 65 TO P 300 DEG F,0.00008 IN. MAXVARIATION IN DIA OF ROLLERS |
TEST DATA DOCUMENT | 38443-ES105 SPECIFICATION OR 38443-ES109A SPECIFICATION |
MANUFACTURERS CODE | 81996 |
MFR SOURCE CONTROLLING REFERENCE | 205-040-105 |
Restrictions/Controls & Freight Information | NSN 3110-00-891-9972
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
Less than car load rating | P | 77.5 |
Less than truck load rating | P | 77.5 |
Water commodity Code | 742 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-891-9972
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | B | Rotary Wing Aircraft |
Weapons Systems/End Item or Homogeneous Group | BA | UH-1 |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | GA | TG:H-1 IROQUOIS |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9W | Navy-owned stocks of material managed by the Army within the Army Troop Support and Aviation Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
