NSN 3110-00-800-4153 CT6023, 941773, 114644
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-800-4153 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: CT6023, 941773, 114644, 3110-00-800-4153, 00-800-4153, 3110008004153, 008004153
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-800-4153 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-800-4153
Demand History | NSN 3110-00-800-4153
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 114644 | 2020-10-282 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-800-4153
Related Products | NSN 3110-00-800-4153
Technical Data | NSN 3110-00-800-4153
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

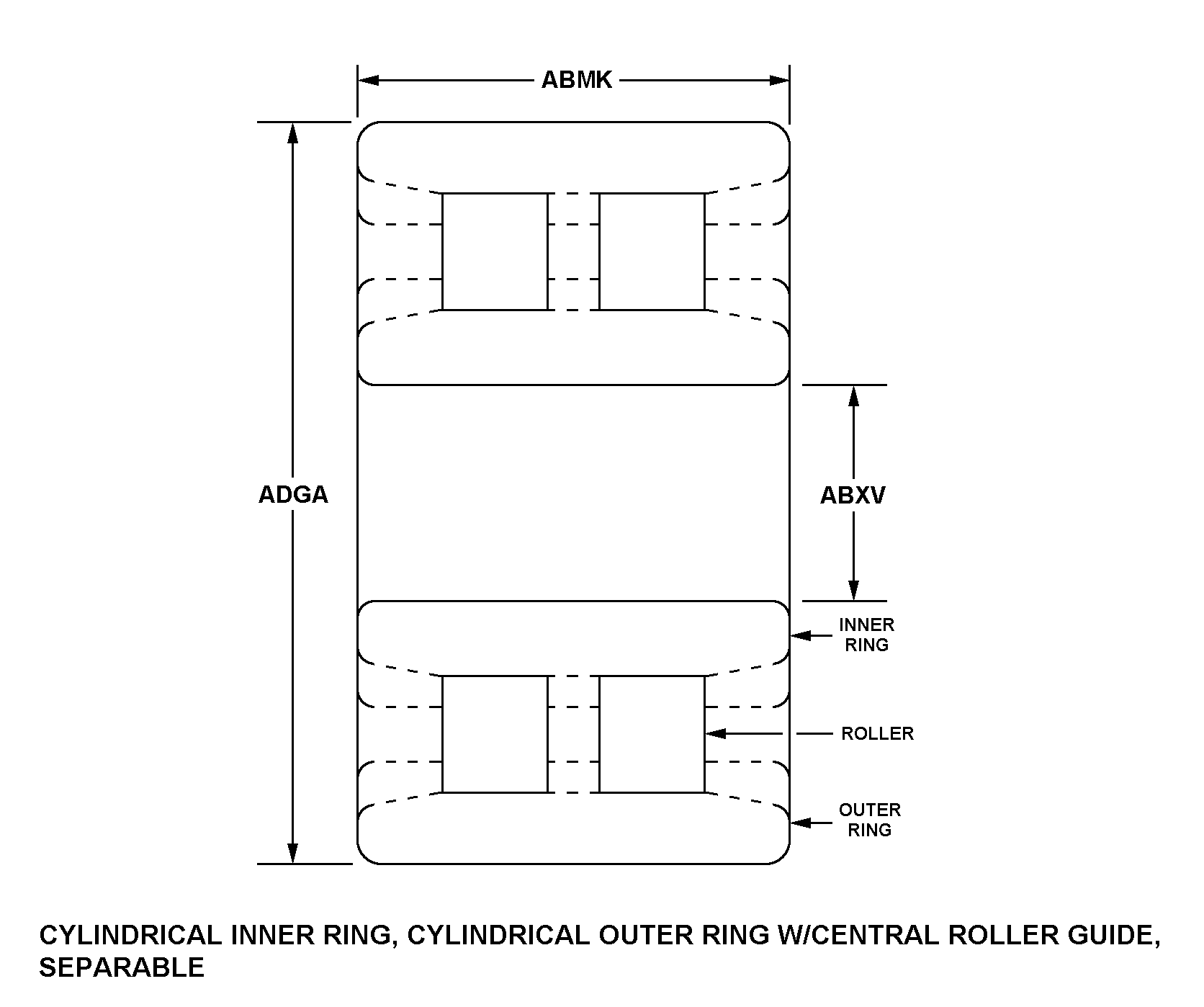

| STYLE DESIGNATOR | 258A CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING W/CENTRAL ROLLER GUIDE, SEPARABLE |
| OVERALL WIDTH | 0.8750 INCHES NOMINAL |
| BORE DIAMETER | 35.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 72.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0010 INCHES MINIMUM RADIAL AND 0.0025 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | DUMBELL TYPE ROLLERS,CENTRALLY LOCATED ROLLER RETAINMENT RING ON OD OF INNER RING |
Restrictions/Controls & Freight Information | NSN 3110-00-800-4153
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-800-4153
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
