NSN 3110-00-717-1604 D135419, D1-35419, FFB171TYPE111CL
Product Details | STACK BALL BEARING
3110-00-717-1604 A multiple assembly of more than two bearings matched for duplex mounting. Designed primarily for aircraft propeller and rotary wing aircraft rotor blade applications. See also BEARING, BALL, ANNULAR.
Part Alternates: D135419, D1-35419, FFB171TYPE111CL, 1 1-2PAIRMRC9206, 1 1-2PAIRMRC9206U1DT, 112PAIRMRC9206, 112PAIRMRC9206U1DT, 1-1-2PAIRMRC9206U1DT, 9206U1DT, 9206UIDT, 3110-00-717-1604, 00-717-1604, 3110007171604, 007171604
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-717-1604 | 30214 ( BEARING, BALL, STACK ) |

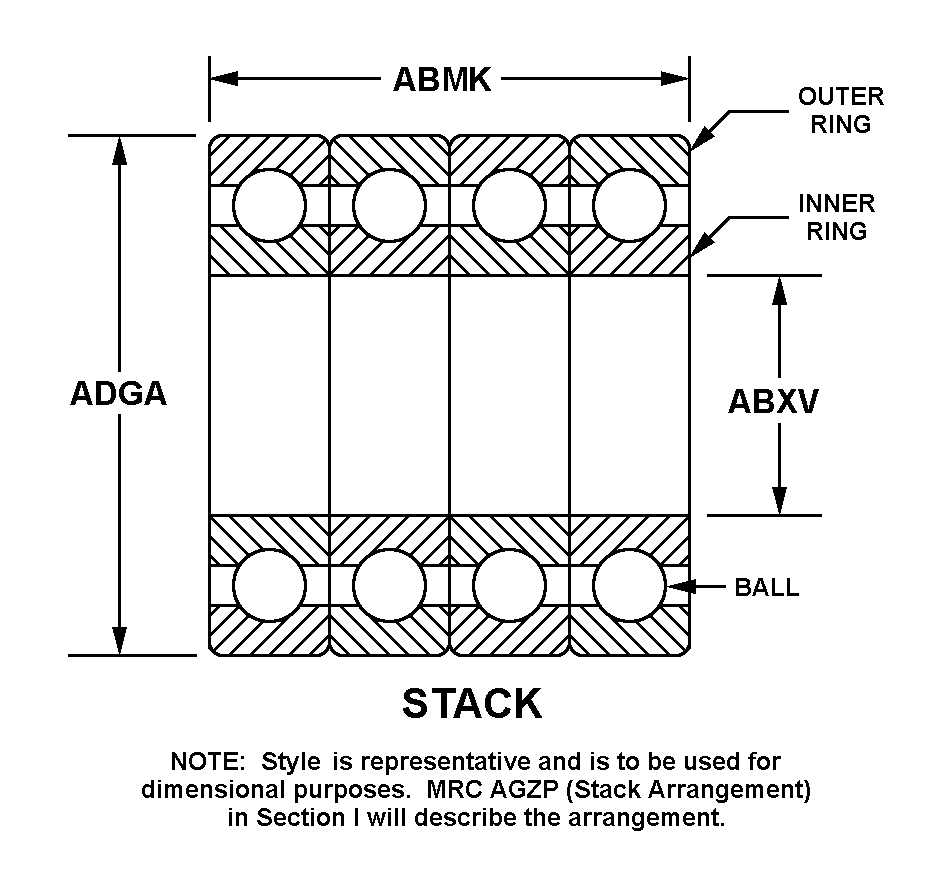

Drawings & Photos | NSN 3110-00-717-1604
Cross Reference | NSN 3110-00-717-1604
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1 1-2PAIRMRC9206 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 1 1-2PAIRMRC9206U1DT | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 1-1-2PAIRMRC9206U1DT | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 9206U1DT | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 9206UIDT | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| D1-35419 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| FFB171TYPE111CL | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-717-1604
Technical Data | NSN 3110-00-717-1604
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER |
| STYLE DESIGNATOR | 224 STACK |
| OVERALL WIDTH | 48.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 30.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 62.0 MILLIMETERS NOMINAL |
| STACK ARRANGEMENT | 3 ANGULAR CONTACT BEARINGS FLUSH GROUND FOR TANDEM DUPLEX MOUNTING |
| SPECIAL FEATURES | SPLIT INNER RING. ANGULARITY LESS THAN 25 DEG |
Restrictions/Controls & Freight Information | NSN 3110-00-717-1604
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-717-1604
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SE : Set |
