NSN 3110-01-357-6254 I2367A, I-2367-A, 53X02167
Product Details | STACK BALL BEARING
3110-01-357-6254 A multiple assembly of more than two bearings matched for duplex mounting. Designed primarily for aircraft propeller and rotary wing aircraft rotor blade applications. See also BEARING, BALL, ANNULAR.
Part Alternates: I2367A, I-2367-A, 53X02167, 53X-02-167, 10534BA, 10534-BA, 3110-01-357-6254, 01-357-6254, 3110013576254, 013576254
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 28 APR 1992 | 01-357-6254 | 30214 ( BEARING, BALL, STACK ) |

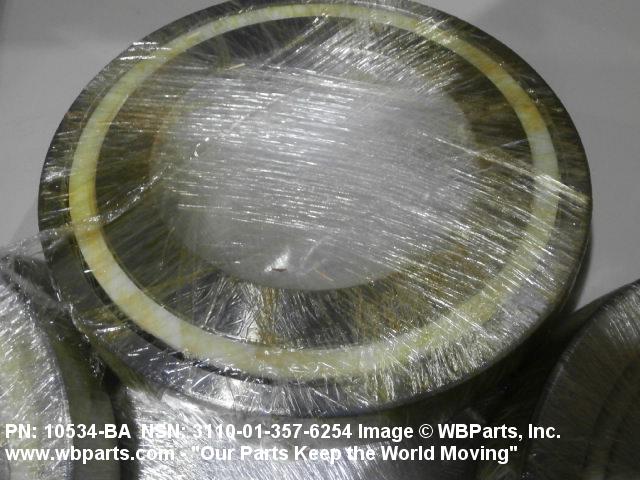

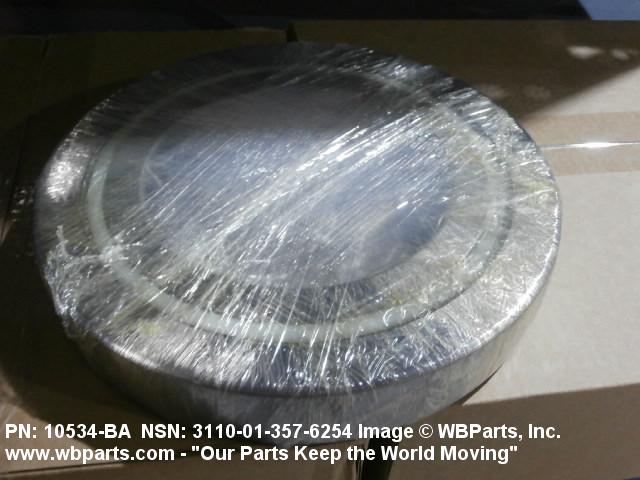

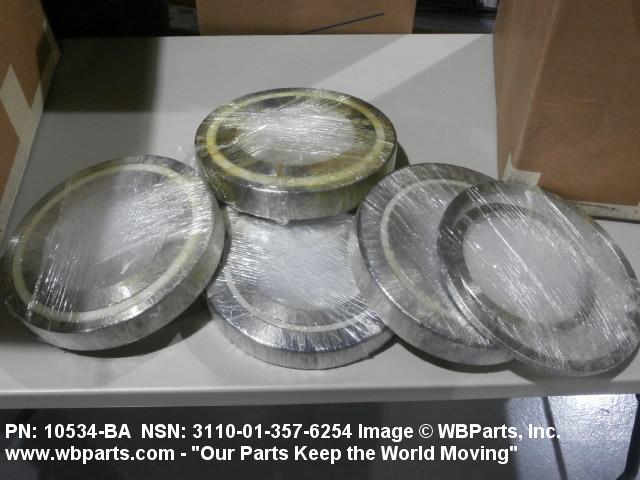

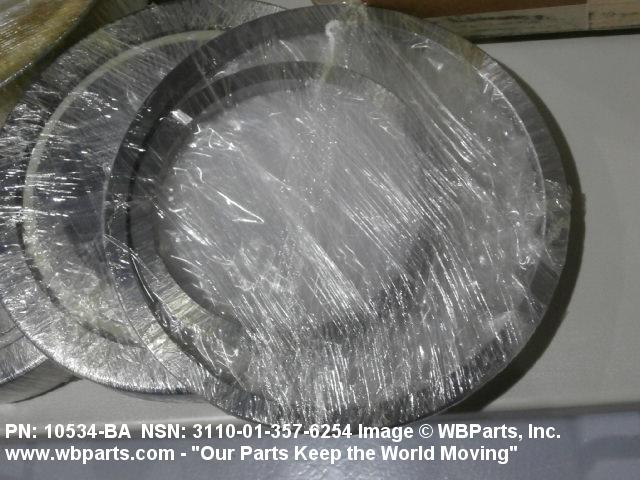

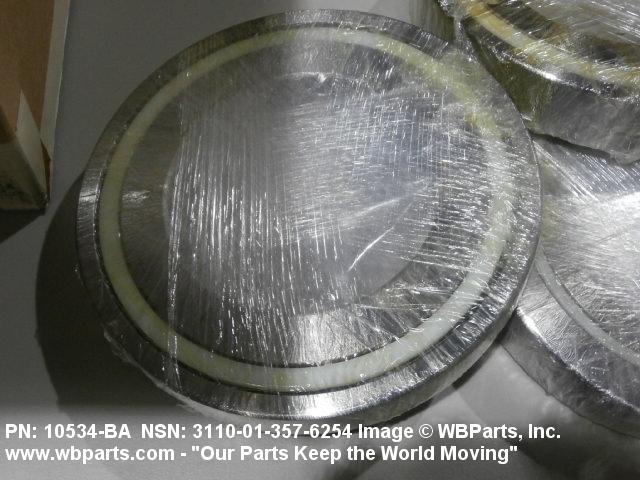

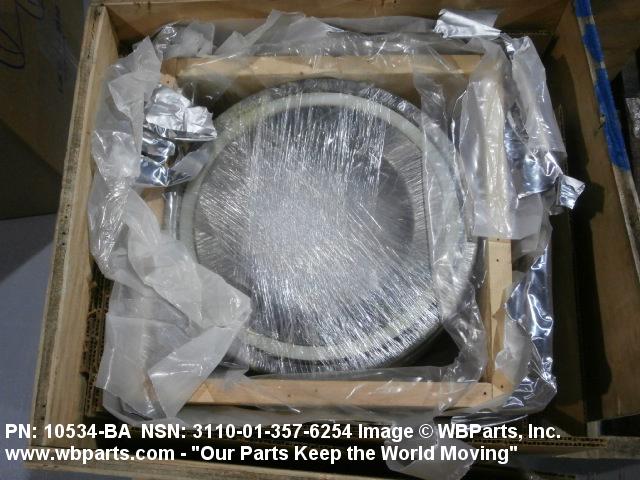

Drawings & Photos | NSN 3110-01-357-6254
Demand History | NSN 3110-01-357-6254
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10534-BA | 2023-10-283 | 3 | DIBBS |
| 10534-BA | 2021-03-90 | 2 | DIBBS |
| 10534-BA | 2020-05-138 | 2 | DIBBS |
| 10534-BA | 2019-04-102 | 2 | DIBBS |
| 3110-01-357-6254 | 2019-04-95 | 2 | US |
| 10534-BA | 2019-04-93 | 2 | DIBBS |
| 10534BA | 2018-06-158 | 3 | us |
| 3110-01-357-6254 | 2018-06-158 | 3 | DIBBS |
| 3110-01-357-6254 | 2018-05-150 | 3 | DIBBS |
| 3110-01-357-6254 | 2017-09-253 | 3 | DIBBS |
| 3110-01-357-6254 | 2016-04-105 | 3 | United States |
| 3110-01-357-6254 | 2016-02-40 | 9 | DIBBS |
| 3110-01-357-6254 | 2009-05-147 | 7 | DIBBS |
| 3110-01-357-6254 | 2009-04-105 | 2 | DIBBS |
| 3110-01-357-6254 | 2007-11-317 | 6 | DIBBS |
| 3110-01-357-6254 | 2007-10-278 | 1 | DIBBS |
| 3110-01-357-6254 | 2007-10-278 | 3 | DIBBS |
| 3110-01-357-6254 | 2007-08-237 | 1 | DIBBS |
| 3110-01-357-6254 | 2007-03-71 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-357-6254
Related Products | NSN 3110-01-357-6254
Technical Data | NSN 3110-01-357-6254
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL COMP E52100 INNER RACE STEEL COMP E52100 OUTER RACE PLASTIC RETAINER STEEL COMP 1020 AND STEEL COMP 1010 SPACER |
| BORE DIAMETER | 6.9990 INCHES MINIMUM AND 7.0000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 7.9600 INCHES MINIMUM AND 8.0000 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
Restrictions/Controls & Freight Information | NSN 3110-01-357-6254
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-357-6254
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
