NSN 3110-00-555-5490 A1305TS, 00-555-5490, 005555490
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-555-5490 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: A1305TS, 3110-00-555-5490, 00-555-5490, 3110005555490, 005555490
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-555-5490 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-555-5490
Cross Reference | NSN 3110-00-555-5490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A1305TS | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-555-5490
Technical Data | NSN 3110-00-555-5490
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL OUTER RING ALUMINUM RETAINER STEEL ROLLER |

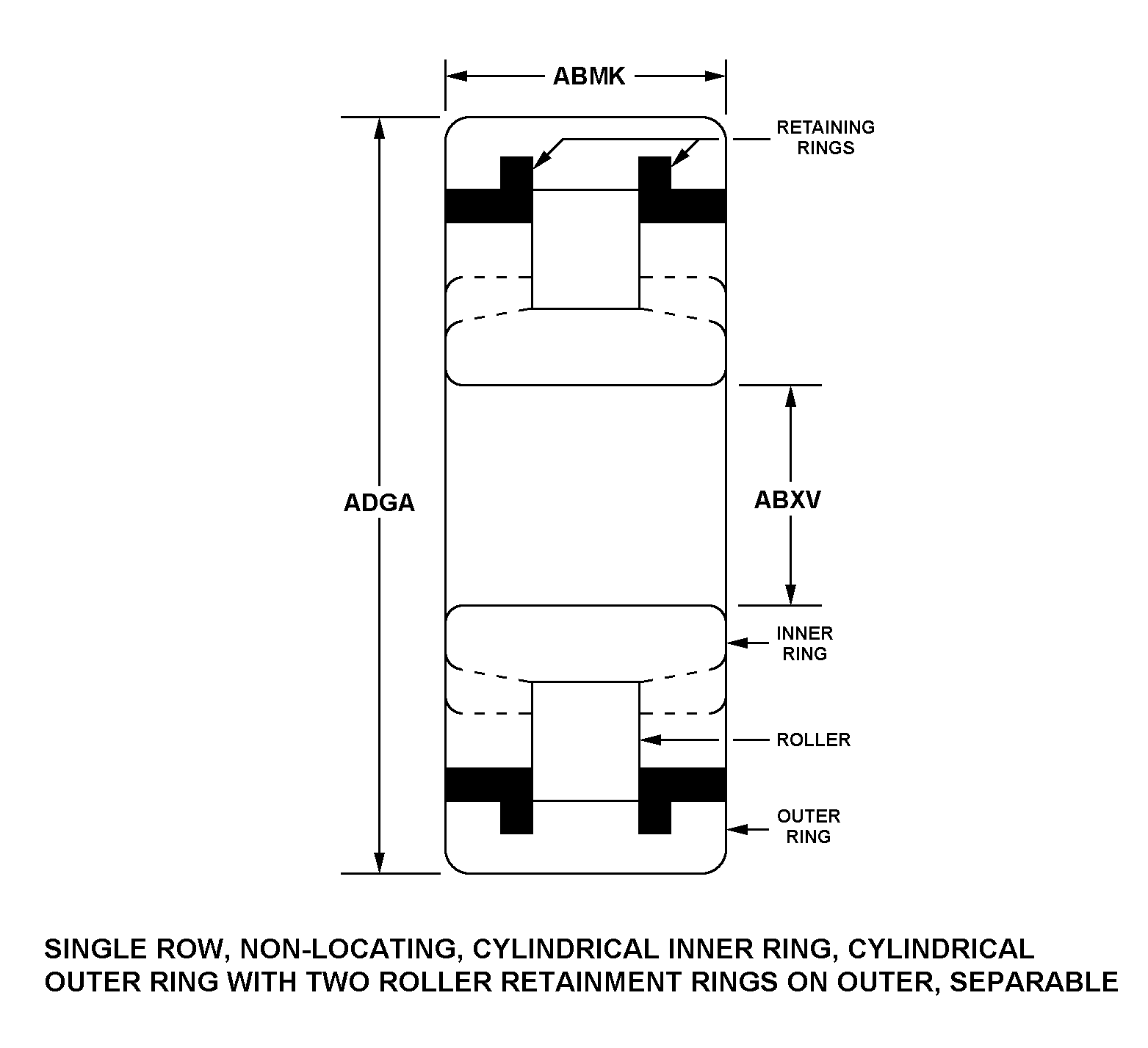

| STYLE DESIGNATOR | 250C SINGLE ROW, NON-LOCATING, CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, SEPARABLE |
| OVERALL WIDTH | 17.00 MILLIMETERS NOMINAL |
| BORE DIAMETER | 25.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 62.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-555-5490
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
