NSN 3110-00-482-3301 R102KEX4, 68D23361, 0002WBP21
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-482-3301 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: R102KEX4, 68D23361, 0002WBP21, 1690941, 169094-1, 3110-00-482-3301, 00-482-3301, 3110004823301, 004823301
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 JAN 1971 | 00-482-3301 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |

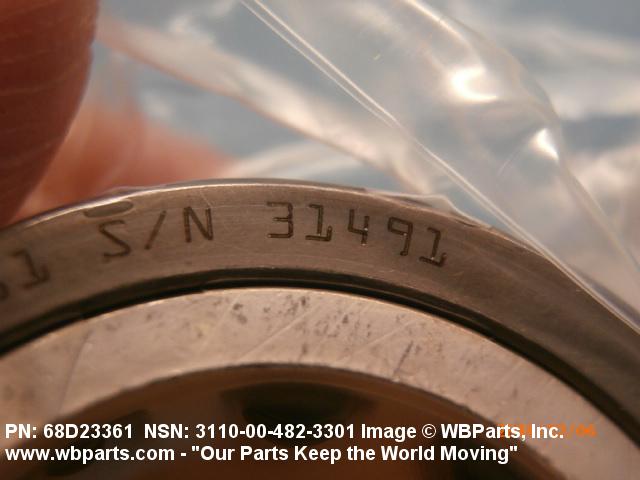

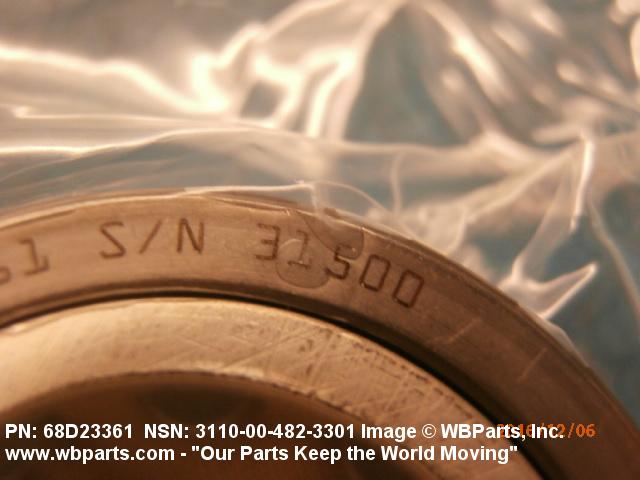

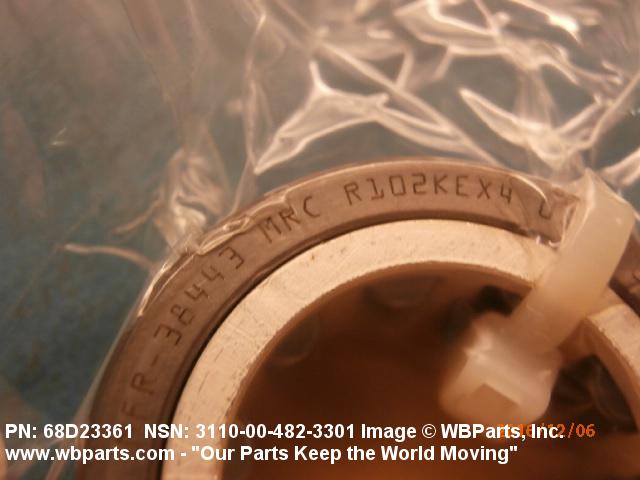

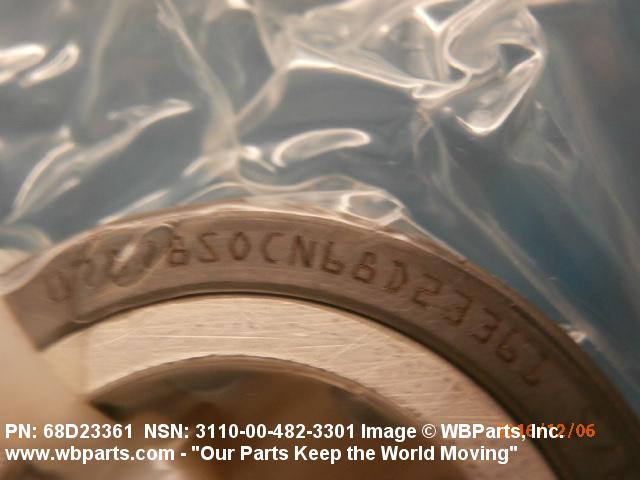

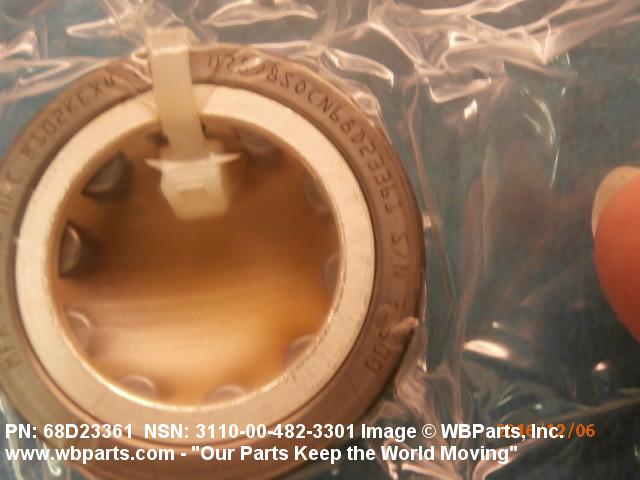

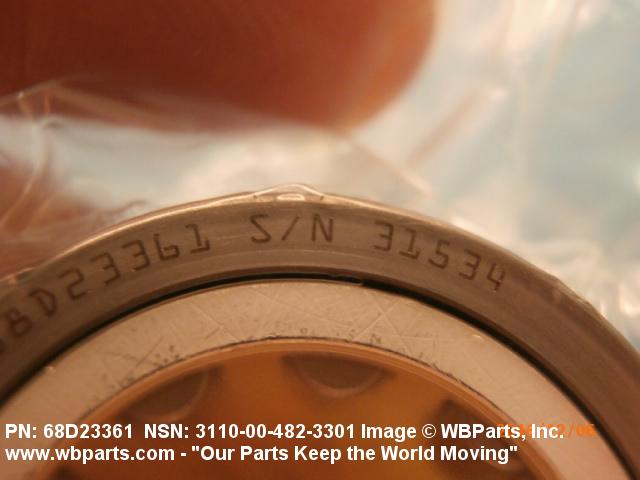

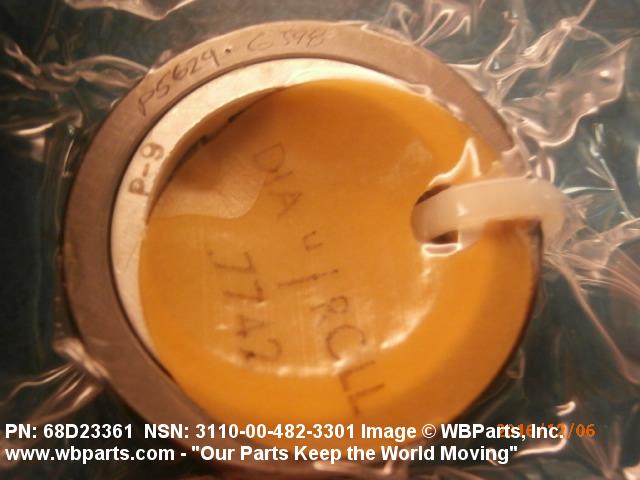

Drawings & Photos | NSN 3110-00-482-3301
Demand History | NSN 3110-00-482-3301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-482-3301 | 2023-02-56 | 5 | CN |
| 3110-00-482-3301 | 2023-02-53 | 1 | US |
| 169094-1 | 2021-05-145 | 18 | DIBBS |
| 169094-1 | 2021-05-129 | 7 | DIBBS |
| 3110-00-482-3301 | 2021-04-120 | 2 | Australia |
| 169094-1 | 2021-04-104 | 9 | DIBBS |
| 169094-1 | 2021-04-95 | 9 | DIBBS |
| 169094-1 | 2021-03-66 | 1 | DIBBS |
| 169094-1 | 2020-01-28 | 1 | DIBBS |
| 3110-00-482-3301 | 2019-06-179 | 2 | Australia |
| 3110-00-482-3301 | 2019-05-145 | 10 | US |
| 3110-00-482-3301 | 2019-01-30 | 5 | IL |
| 68D23361 | 2017-09-249 | 4 | Italy |
| 3110-00-482-3301 | 2017-06-157 | 1 | IT |
| 3110-00-482-3301 | 2016-12-349 | 30 | DIBBS |
| 3110-00-482-3301 | 2016-12-341 | 30 | DIBBS |
| 3110-00-482-3301 | 2016-11-326 | 28 | DIBBS |
| 3110-00-482-3301 | 2016-11-318 | 28 | DIBBS |
| 68D23361 | 2016-11-316 | 2 | Italy |
| 68D23361 | 2016-11-314 | 1 | Italy |
| 68D23361 | 2016-11-314 | 3 | Italy |
| 3110-00-482-3301 | 2016-10-301 | 54 | DIBBS |
| 3110-00-482-3301 | 2016-10-291 | 54 | DIBBS |
| R102KEX4 | 2015-10-282 | 50 | US |
| 3110-00-482-3301 | 2014-12-350 | 1 | US |
| 3110-00-482-3301 | 2014-10-285 | 5 | IL |
| 68D23361 | 2014-09-246 | 1 | AU |
| 3110-00-482-3301 | 2012-07-192 | 20 | US |
| 3110-00-482-3301 | 2012-03-89 | 10 | US |
| R102KEX4 | 2011-11-320 | 2 | US |
| 3110-00-482-3301 | 2011-04-109 | 4 | AR |
| 3110-00-482-3301 | 2011-02-45 | 10 | United States |
| 3110-00-482-3301 | 2011-02-42 | 1 | US |
| 3110-00-482-3301 | 2010-12-342 | 3 | United States |
| 3110-00-482-3301 | 2010-06-167 | 6 | United States |
| 3110-00-482-3301 | 2010-02-41 | 1 | US |
| 3110-00-482-3301 | 2010-01-15 | 2 | United States |
| 3110-00-482-3301 | 2009-08-214 | 4 | United States |
| 3110-00-482-3301 | 2009-08-214 | 5 | Australia |
| 3110-00-482-3301 | 2009-01-26 | 2 | United States |
| 3110-00-482-3301 | 2008-10-277 | 2 | US |
| 3110-00-482-3301 | 2008-09-254 | 2 | Indonesia |
| 68D23361 | 2008-09-254 | 1 | BG |
| 68D23361 | 2008-07-190 | 1 | Singapore |
| 3110-00-482-3301 | 2008-06-177 | 2 | Indonesia |
| 3110-00-482-3301 | 2008-06-176 | 2 | Indonesia |
| 0002WBP21 | 2008-06-176 | 2 | Indonesia |
| R102KEX4 | 2008-06-176 | 2 | Indonesia |
| 3110-00-482-3301 | 2008-05-136 | 10 | US |
| 68D23361 | 2008-05-127 | 3 | Indonesia |
| 0002WBP21 | 2008-03-67 | 1 | Australia |
| 0002WBP21 | 2007-11-325 | 1 | Australia |
| 68D23361 | 2007-11-309 | 10 | US |
| 3110-00-482-3301 | 2007-11-309 | 2 | United States |
| 3110-00-482-3301 | 2007-09-261 | 17 | DIBBS |
| 3110-00-482-3301 | 2007-08-240 | 2 | Australia |
| 3110-00-482-3301 | 2007-07-204 | 2 | Australia |
| 3110-00-482-3301 | 2007-02-37 | 5 | US |
Cross Reference | NSN 3110-00-482-3301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0002WBP21 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 169094-1 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 169094-1 | 55820 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 169094-1 | 66195 | SOLAR TURBINES INCORPORATED |
| 68D23361 | 07878 | AERONAUTICAL AND SUPPORT EQUIPMENT TYPE DESIGNATION SYSTEM /ASETDS/ |
| 68D23361 | 55820 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 68D23361 | 66195 | SOLAR TURBINES INCORPORATED |
| R102KEX4 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-482-3301
Related Products | NSN 3110-00-482-3301
Technical Data | NSN 3110-00-482-3301
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 OUTER RING STEEL COMP 4340 RETAINER STEEL COMP E52100 ROLLER |
| STYLE DESIGNATOR | 308 SOLID OUTER RACE, NO INNER RACE |

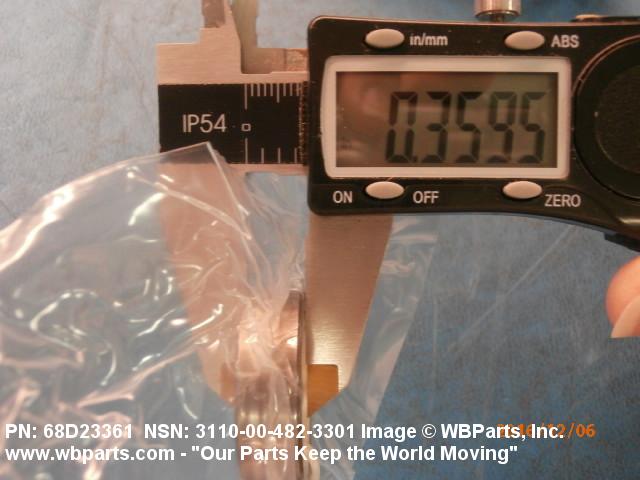

| OVERALL WIDTH | 0.3538 INCHES MINIMUM AND 0.3543 INCHES MAXIMUM |

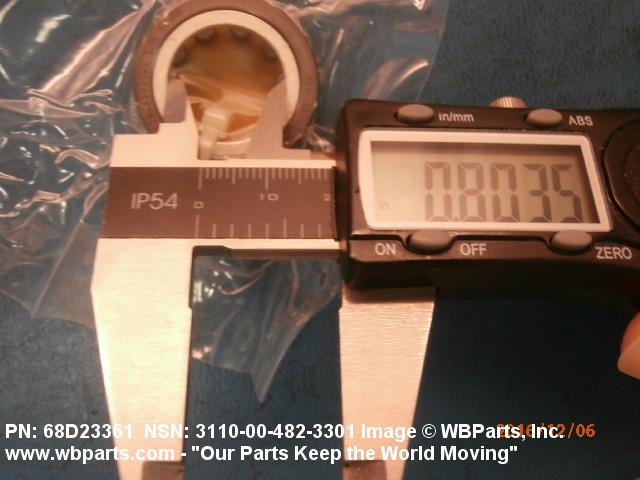

| BORE DIAMETER | 0.7740 INCHES MINIMUM AND 0.7744 INCHES MAXIMUM |

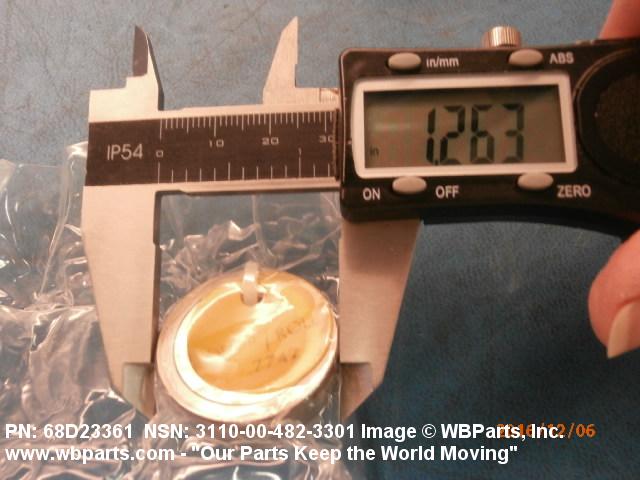

| OVERALL OUTSIDE DIAMETER | 1.2596 INCHES MINIMUM AND 1.2598 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| SPECIAL FEATURES | SILVER PLATE CAGE LAND RIDING SURFACES AND POCKETS 0.0005-0.0015 THK PER AMS 2412 |
| MANUFACTURERS CODE | 55820 |
| MFR SOURCE CONTROLLING REFERENCE | 169094-1 |
Restrictions/Controls & Freight Information | NSN 3110-00-482-3301
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-482-3301
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | YP | SU:GAS TURBINES AND JET ENGINES NON-AIRCRAFT |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
