NSN 3110-00-439-5477 447228, 447230, 693010
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-439-5477 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: 447228, 447230, 693010, 3110-00-439-5477, 00-439-5477, 3110004395477, 004395477
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 DEC 1969 | 00-439-5477 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-439-5477
Demand History | NSN 3110-00-439-5477
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 447228 | 2023-09-261 | 12 | DIBBS |
| 693010 | 2023-09-261 | 12 | DIBBS |
| 447228 | 2023-03-85 | 11 | DIBBS |
| 693010 | 2023-03-85 | 11 | DIBBS |
| 447228 | 2023-02-52 | 2 | DIBBS |
| 693010 | 2023-02-52 | 2 | DIBBS |
| 3110-00-439-5477 | 2016-09-266 | 1 | DIBBS-RFPs |
| 3110-00-439-5477 | 2014-07-204 | 16 | DIBBS |
| 3110-00-439-5477 | 2014-07-196 | 16 | DIBBS |
| 3110-00-439-5477 | 2014-01-13 | 54 | DIBBS |
| 3110-00-439-5477 | 2011-11-311 | 63 | DIBBS |
| 3110-00-439-5477 | 2011-05-123 | 13 | DIBBS |
| 3110-00-439-5477 | 2011-04-101 | 13 | DIBBS |
| 3110-00-439-5477 | 2011-02-55 | 25 | DIBBS |
| 3110-00-439-5477 | 2011-01-11 | 9 | DIBBS |
| 3110-00-439-5477 | 2008-11-322 | 36 | DIBBS |
| 3110-00-439-5477 | 2007-07-191 | 127 | DIBBS |
Cross Reference | NSN 3110-00-439-5477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 447228 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 447230 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| 447230 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 447230 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 693010 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| 693010 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-439-5477
Related Products | NSN 3110-00-439-5477
Technical Data | NSN 3110-00-439-5477
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING COPPER ALLOY RETAINER STEEL COMP E52100 ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE INNER RING AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AMS 4616 ASSN STD SINGLE MATERIAL RESPONSE RETAINER AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE ROLLER |

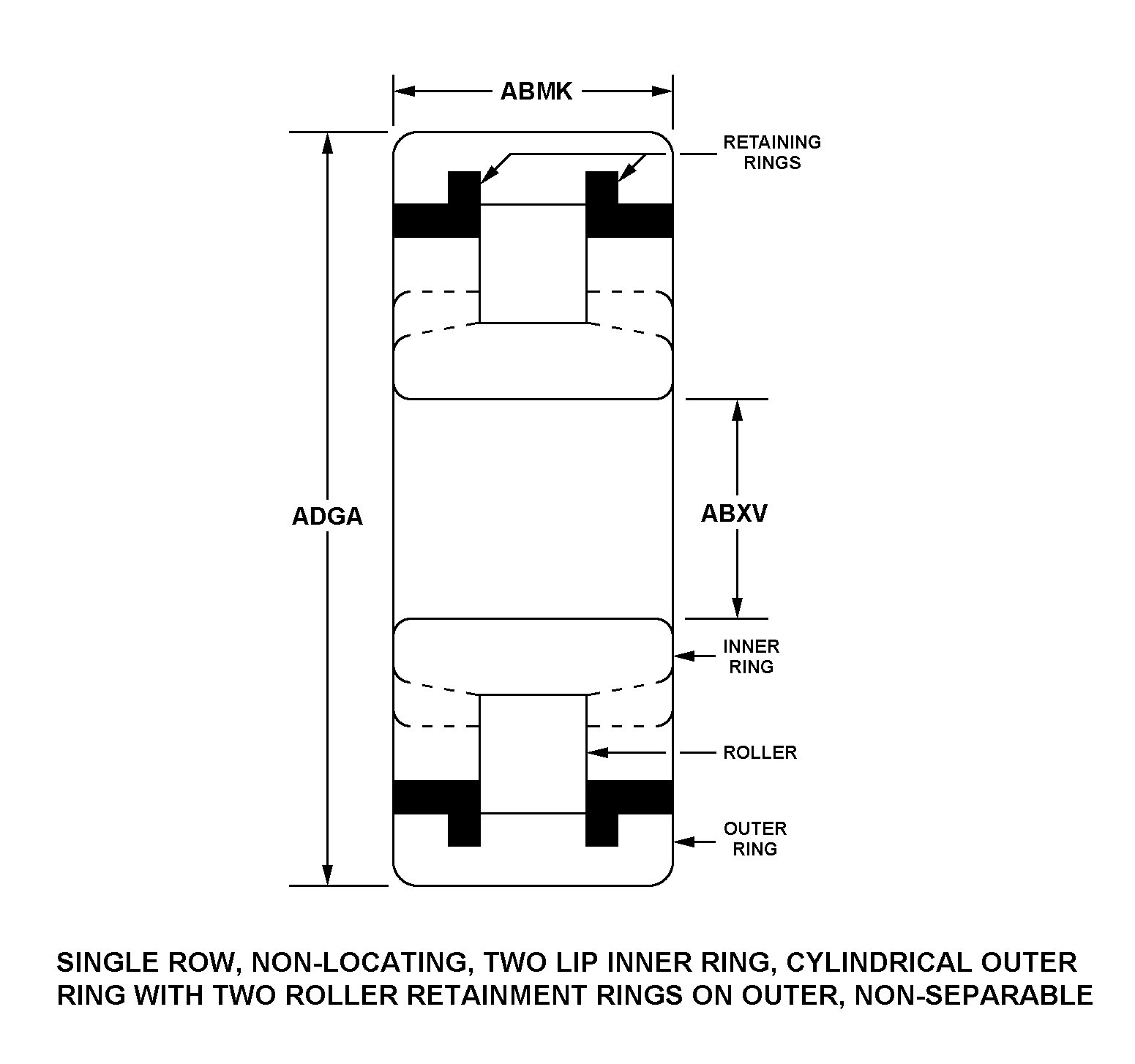

| STYLE DESIGNATOR | 250A SINGLE ROW, NON-LOCATING, TWO LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, NON-SEPARABLE |
| OVERALL WIDTH | 0.6249 INCHES MINIMUM AND 0.6299 INCHES MAXIMUM |
| BORE DIAMETER | 1.9683 INCHES MINIMUM AND 1.9685 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.1493 INCHES MINIMUM AND 3.1496 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0014 INCHES MINIMUM RADIAL AND 0.0020 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | SILVER PLATE CAGE PER AMS 2412 0.0005-0.0015 THK ON LAND RIDING SURF AND ROLLER POCKETS NO STRIKE METAL REQD BAKE 475-500F FOR 2 HRS TO CHECK FOR BOND |
Restrictions/Controls & Freight Information | NSN 3110-00-439-5477
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-439-5477
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
