NSN 3110-00-156-1320 MS1907833, MS19078-33, NJ220

Product Details | CYLINDRICAL ROLLER BEARING

3110-00-156-1320 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.

Part Alternates: MS1907833, MS19078-33, NJ220, AA55599, A-A-55599, AA5559933JCO, AA55599-33JCO, 4158311, 415831-1, 52C40921, 52-C-4092-1, 3110-00-156-1320, 00-156-1320, 3110001561320, 001561320

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-156-1320	00015 ( BEARING, ROLLER, CYLINDRICAL )

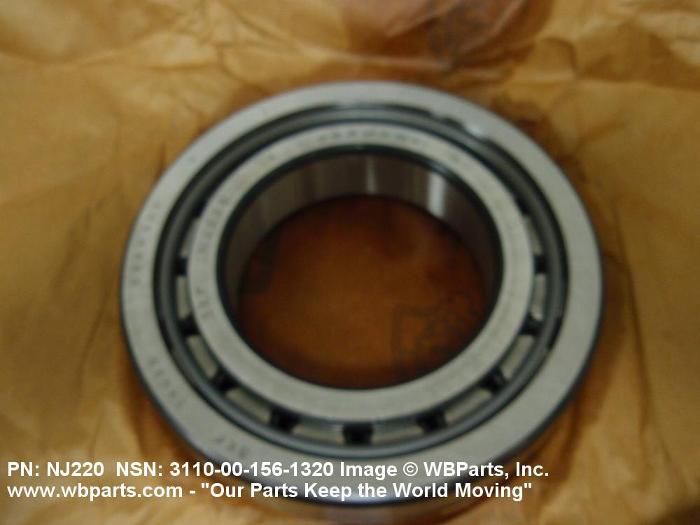

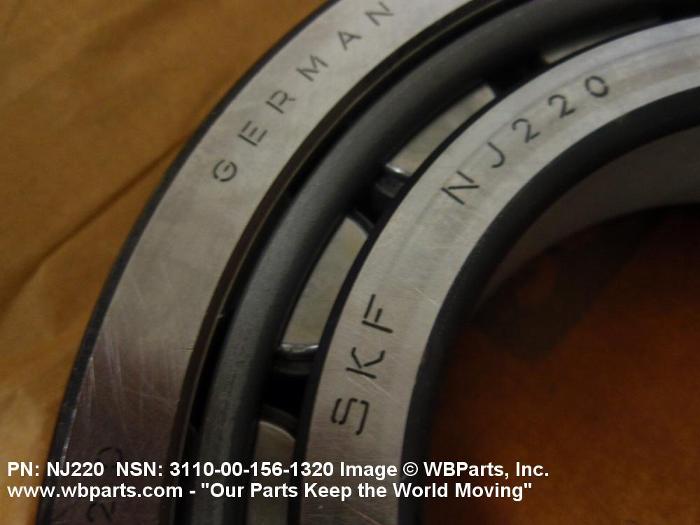

Drawings & Photos | NSN 3110-00-156-1320

Part Number	Request Date	QTY	Origin
3110-00-156-1320	2021-11-321	2	United States
3110-00-156-1320	2021-06-175	1	US
3110-00-156-1320	2020-10-304	1	DIBBS-RFPs
3110-00-156-1320	2020-08-219	1	DIBBS-RFPs
3110-00-156-1320	2020-04-98	100	DIBBS
3110-00-156-1320	2020-02-48	54	DIBBS
3110-00-156-1320	2019-12-337	125	DIBBS
3110-00-156-1320	2019-01-09	37	DIBBS
3110-00-156-1320	2018-11-319	127	DIBBS
3110-00-156-1320	2018-11-310	48	DIBBS
MS1907833	2018-06-176	44	United States
3110-00-156-1320	2018-02-53	1	DIBBS-RFPs
3110-00-156-1320	2017-01-30	30	US
3110-00-156-1320	2015-09-272	72	US
MS1907833	2015-09-259	72	US
MS1907833	2015-09-259	72	US
3110-00-156-1320	2014-09-254	22	United States
MS1907833	2013-10-291	32	United States
3110-00-156-1320	2013-10-281	1	DIBBS-RFPs
MS1907833	2013-05-150	20	US
3110-00-156-1320	2013-05-125	134	DIBBS
3110-00-156-1320	2012-10-295	149	DIBBS
3110-00-156-1320	2012-08-218	156	DIBBS
3110-00-156-1320	2011-07-211	93	DIBBS
3110-00-156-1320	2011-06-174	222	DIBBS
3110-00-156-1320	2011-05-146	129	DIBBS
3110-00-156-1320	2011-04-94	4	Iceland
3110-00-156-1320	2011-03-67	30	DIBBS
3110-00-156-1320	2011-01-27	30	DIBBS
3110-00-156-1320	2010-10-300	49	DIBBS
3110-00-156-1320	2010-07-196	55	DIBBS
MS1907833	2010-05-132	50	us
3110-00-156-1320	2010-04-102	59	DIBBS
3110-00-156-1320	2009-11-327	12	DIBBS
3110-00-156-1320	2008-11-316	43	DIBBS
MS1907833	2008-10-298	20	US
3110-00-156-1320	2008-08-226	67	DIBBS
3110-00-156-1320	2008-05-140	159	DIBBS
3110-00-156-1320	2008-04-109	67	DIBBS
3110-00-156-1320	2007-05-137	102	DIBBS
3110-00-156-1320	2007-03-89	69	DIBBS
3110-00-156-1320	2007-02-37	185	DIBBS

Cross Reference | NSN 3110-00-156-1320

Part Number	Cage Code	Manufacturer
415831-1	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
52-C-4092-1	21439	ENGINEERED ARRESTING SYSTEMS CORPORATION
A-A-55599	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA55599-33JCO	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
MS19078-33	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NJ220	52676	SKF USA INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-156-1320

Compare

Related Products | NSN 3110-00-156-1320

3110-00-156-1321, 3110-00-156-1324, 3110-00-156-1325, 3110-00-156-1326, 3110-00-156-1327

Technical Data | NSN 3110-00-156-1320

Characteristic	Specifications
MATERIAL	STEEL INNER RING STEEL OUTER RING STEEL ROLLER
STYLE DESIGNATOR	252F SINGLE ROW, ONE-DIRECTION LOCATING, ONE LIP INNER RING, TWO LIP OUTER RING, SEPARABLE
OVERALL WIDTH	34.0 MILLIMETERS NOMINAL
BORE DIAMETER	100.0 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER	180.0 MILLIMETERS NOMINAL
STANDARD TOLERANCE DESIGNATION	RBEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
LOCATING FEATURE	NONLOCATING
INTERNAL FIT-UP DESIGNATION	STANDARD

Restrictions/Controls & Freight Information | NSN 3110-00-156-1320

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-156-1320

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
