Product Details | BELL CRANK BALL BEARING

3110-00-143-3033 A special double row ball bearing, retainer type, with integral flange.

Part Alternates: BC4W9, BC4W9MILG3278, BC4W9MILG3278A, 3110-00-143-3033, 00-143-3033, 3110001433033, 001433033

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG) NSN Assign. NIIN
31 01 JAN 1963 00-143-3033

Drawings & Photos | NSN 3110-00-143-3033


Cross Reference | NSN 3110-00-143-3033

Part Number Cage Code Manufacturer
BC4W9 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
BC4W9 21760 SCHATZ BEARING CORPORATION
BC4W9 38443 SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
BC4W9 3NPS1 RBC AIRCRAFT PRODUCTS, INC.
BC4W9MILG3278 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
BC4W9MILG3278 21760 SCHATZ BEARING CORPORATION
BC4W9MILG3278 38443 SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
BC4W9MILG3278 3NPS1 RBC AIRCRAFT PRODUCTS, INC.
BC4W9MILG3278A 21760 SCHATZ BEARING CORPORATION
BC4W9MILG3278A 38443 SKF USA INC DBA SKF AEROENGINE NORTH AMERICA

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-143-3033

Technical Data | NSN 3110-00-143-3033

Characteristic Specifications
MATERIAL STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP E52100 RETAINER RUBBER SYNTHETIC SEAL
MATERIAL DOCUMENT AND CLASSIFICATION AISI ASSN STD SINGLE MATERIAL RESPONSE BALL AISI ASSN STD SINGLE MATERIAL RESPONSE INNER RING AISI ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AISI ASSN STD SINGLE MATERIAL RESPONSE RETAINER
SURFACE TREATMENT CADMIUM BORE CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE BORE

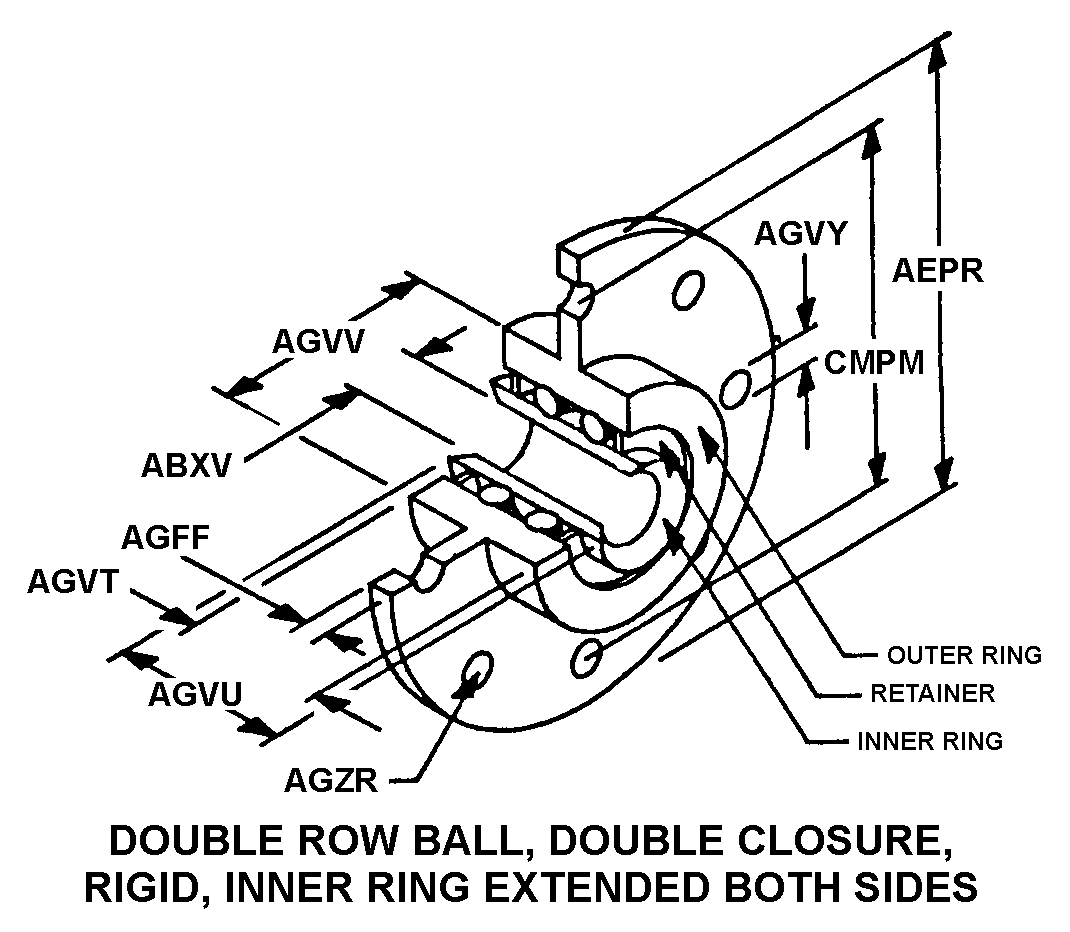

STYLE DESIGNATOR 218 DOUBLE ROW BALL, DOUBLE CLOSURE, RIGID INNER RING EXTENDED BOTH SIDES
RIVET HOLE QUANTITY 12
BORE DIAMETER 0.3125 INCHES MAXIMUM
FLANGE OUTSIDE DIAMETER 1.6250 INCHES NOMINAL
FLANGE WIDTH 0.0570 INCHES MINIMUM AND 0.0670 INCHES MAXIMUM
OUTER RING WIDTH 0.5570 INCHES MINIMUM AND 0.5670 INCHES MAXIMUM
INNER RING WIDTH 0.6820 INCHES MINIMUM AND 0.6870 INCHES MAXIMUM
RIVET HOLE DIAMETER 0.1406 INCHES NOMINAL
DISTANCE BETWEEN FLANGE HOLE CENTERS 1.3750 INCHES MINIMUM AND 1.3800 INCHES MAXIMUM
LUBRICATION MATERIAL GREASE
RETAINER FABRICATION METHOD MACHINED
SHIELD QUANTITY 2
