NSN 3110-00-198-1010 MS202181, MS20218-1, AN218P4
Product Details | BELL CRANK BALL BEARING

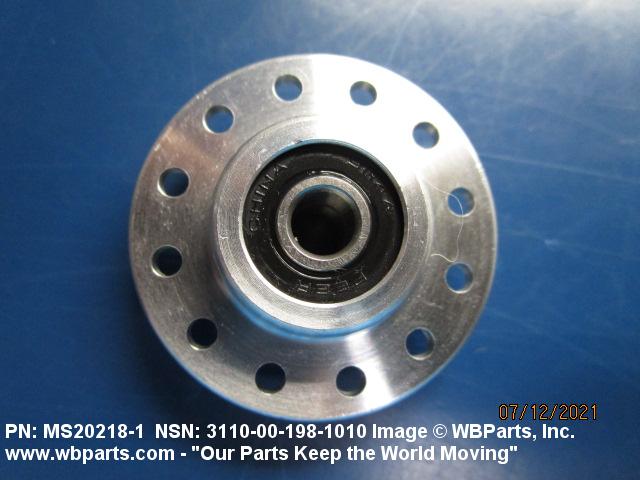

3110-00-198-1010 A special double row ball bearing, retainer type, with integral flange.

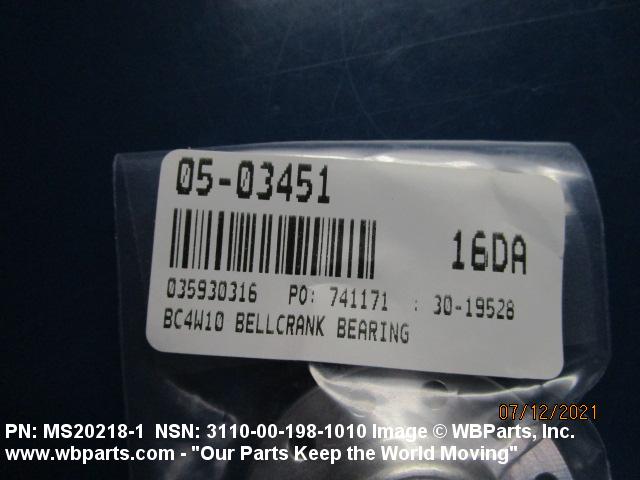

Part Alternates: MS202181, MS20218-1, AN218P4, AS20218, BCP4W10, BCP4W10ANG25, BCP4W10FS10160X, BCP4W10FS160, BCP4W10FS302, BCP4W10FS464, BCP4W10FS50160X, BCP4W10MILG3278, 3110-00-198-1010, 00-198-1010, 3110001981010, 001981010
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-198-1010 | 00048 ( BEARING, BALL, BELL CRANK ) |

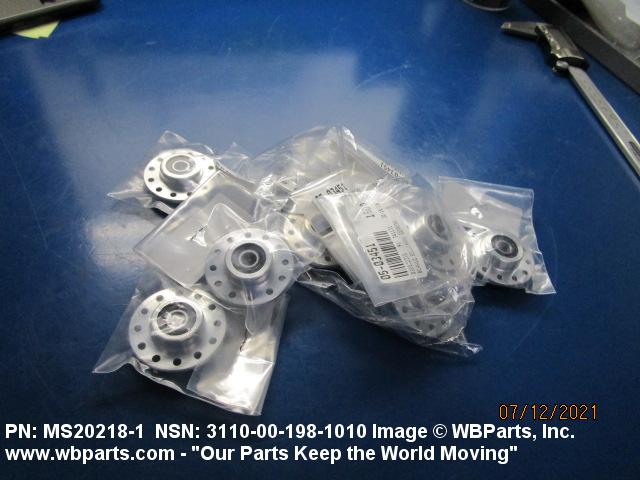

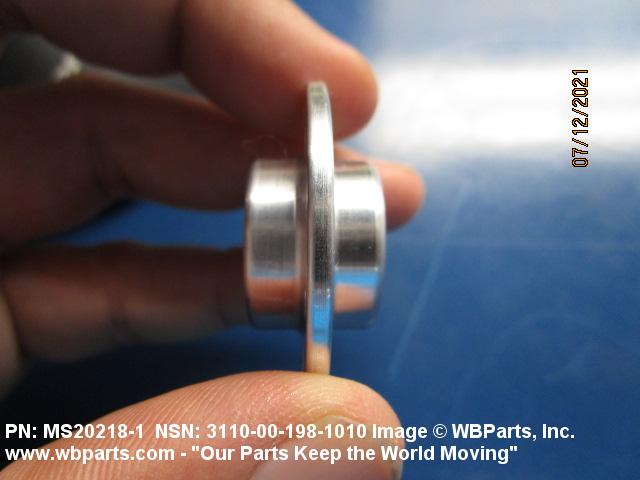

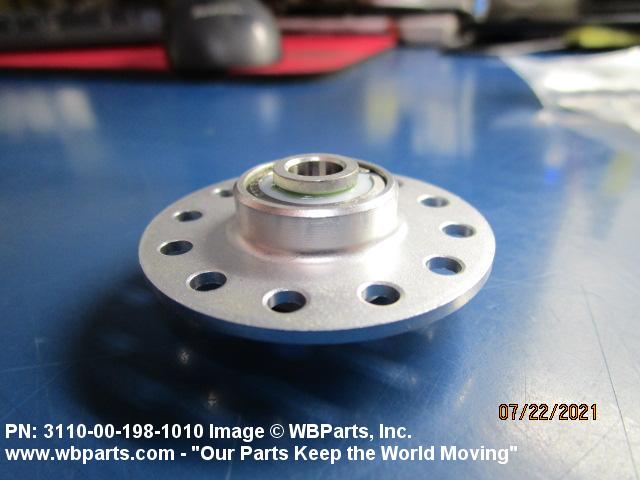

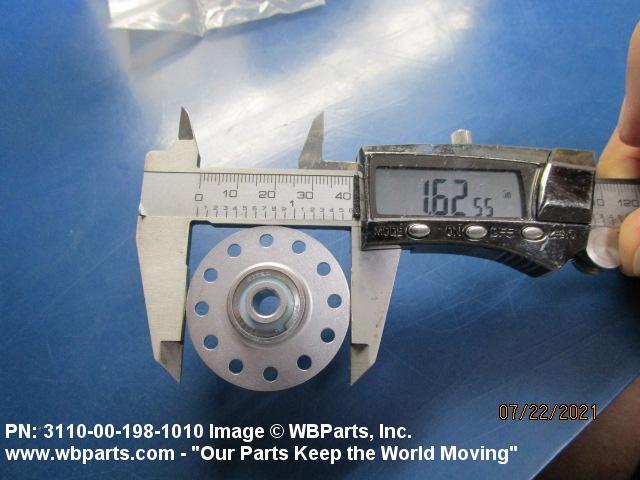

Drawings & Photos | NSN 3110-00-198-1010
Demand History | NSN 3110-00-198-1010
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-198-1010 | 2022-09-264 | 2 | United States |
| BCP4W10 | 2021-11-306 | 1 | US |
| 3110-00-198-1010 | 2021-08-230 | 12 | United States |
| 3110-00-198-1010 | 2021-07-182 | 12 | United States |
| 3110-00-198-1010 | 2021-06-179 | 24 | DIBBS |
| 3110-00-198-1010 | 2021-06-171 | 24 | DIBBS |
| 3110-00-198-1010 | 2020-12-351 | 45 | DIBBS |
| 3110-00-198-1010 | 2018-09-248 | 1 | US |
| MS202181 | 2015-06-167 | 10 | United States |
| 3110-00-198-1010 | 2014-08-216 | 22 | DIBBS |
| 3110-00-198-1010 | 2014-07-208 | 22 | DIBBS |
| 3110-00-198-1010 | 2013-05-129 | 49 | DIBBS |
| 3110-00-198-1010 | 2013-05-128 | 49 | DIBBS |
| 3110-00-198-1010 | 2013-04-113 | 49 | DIBBS |
| 3110-00-198-1010 | 2012-11-312 | 9 | DIBBS |
| 3110-00-198-1010 | 2012-11-311 | 9 | DIBBS |
| BCP4W10 | 2011-04-108 | 5 | US |
| 3110-00-198-1010 | 2010-01-27 | 36 | DIBBS |
| 3110-00-198-1010 | 2009-11-309 | 10 | Colombia |
| 3110-00-198-1010 | 2009-10-299 | 28 | DIBBS |
| 3110-00-198-1010 | 2009-10-298 | 1 | UM |
| 3110-00-198-1010 | 2009-09-268 | 26 | DIBBS |
| 3110-00-198-1010 | 2009-07-182 | 15 | DIBBS |
| 3110-00-198-1010 | 2008-06-158 | 3 | DIBBS |
| 3110-00-198-1010 | 2008-04-116 | 30 | US |
| 3110-00-198-1010 | 2008-03-78 | 4 | France |
| 3110-00-198-1010 | 2008-03-67 | 2 | Australia |
| 3110-00-198-1010 | 2008-02-58 | 16 | DIBBS |
| 3110-00-198-1010 | 2007-10-300 | 18 | DIBBS |
| BCP4W10 | 2007-09-255 | 6 | US |
| 3110-00-198-1010 | 2007-07-199 | 9 | DIBBS |
Cross Reference | NSN 3110-00-198-1010
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN218P4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS20218 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BCP4W10 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BCP4W10ANG25 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BCP4W10FS10160X | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BCP4W10FS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BCP4W10FS302 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BCP4W10FS302 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| BCP4W10FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BCP4W10FS50160X | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| BCP4W10FS50160X | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| BCP4W10MILG3278 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| MS20218-1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS20218-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-198-1010
Related Products | NSN 3110-00-198-1010
Technical Data | NSN 3110-00-198-1010
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP E52100 RETAINER RUBBER SYNTHETIC SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE BALL AISI ASSN STD SINGLE MATERIAL RESPONSE INNER RING AISI ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AISI ASSN STD SINGLE MATERIAL RESPONSE RETAINER |
| SURFACE TREATMENT | CADMIUM BORE CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE BORE |
| STYLE DESIGNATOR | 218 DOUBLE ROW BALL, DOUBLE CLOSURE, RIGID INNER RING EXTENDED BOTH SIDES |
| RIVET HOLE QUANTITY | 12 |

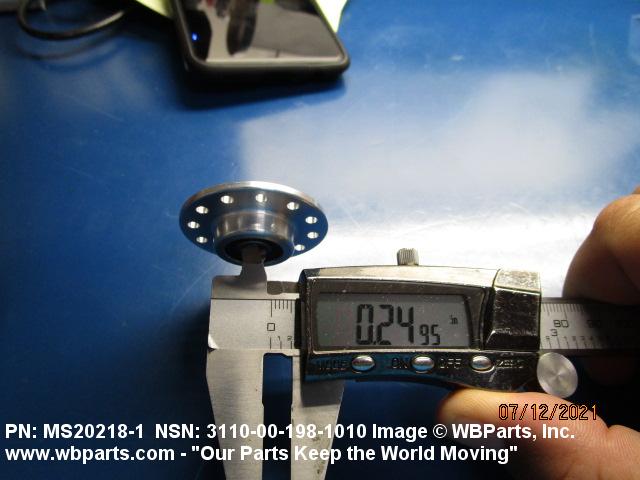

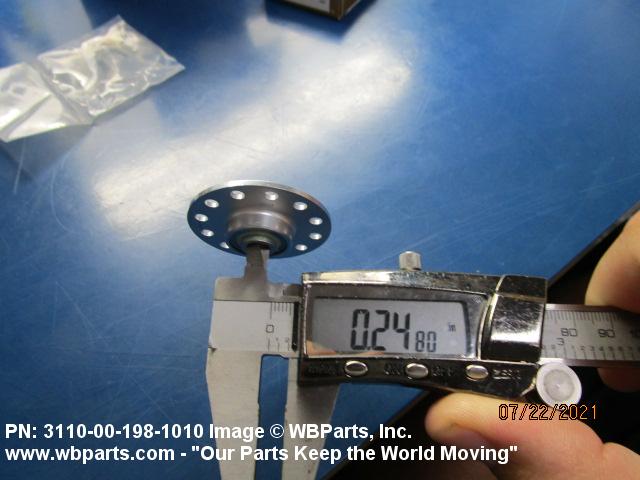

| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |

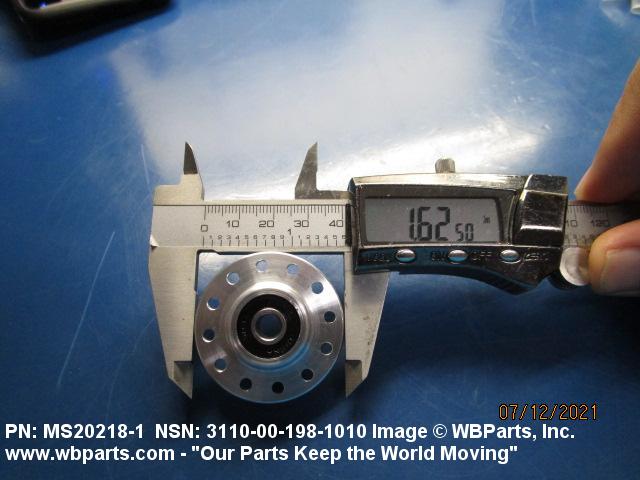

| FLANGE OUTSIDE DIAMETER | 1.6150 INCHES MINIMUM AND 1.6350 INCHES MAXIMUM |

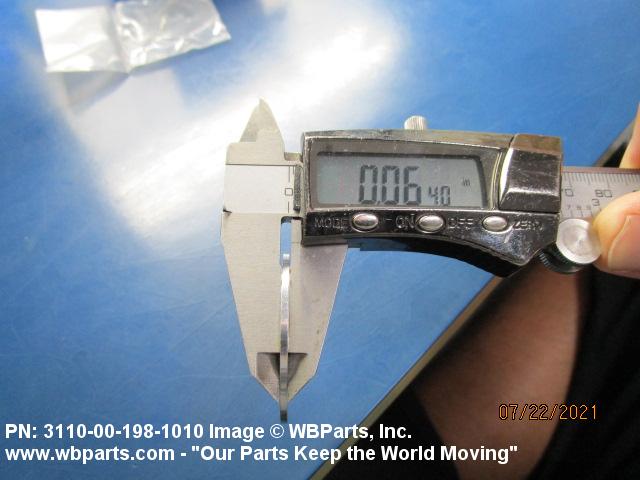

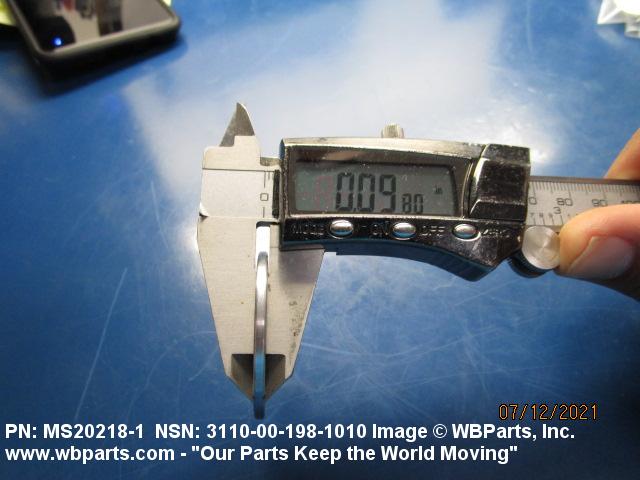

| FLANGE WIDTH | 0.0570 INCHES MINIMUM AND 0.0670 INCHES MAXIMUM |

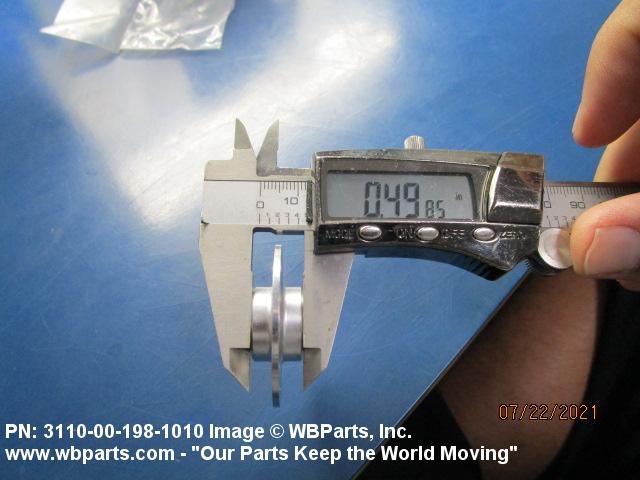

| OUTER RING WIDTH | 0.4950 INCHES MINIMUM AND 0.5050 INCHES MAXIMUM |

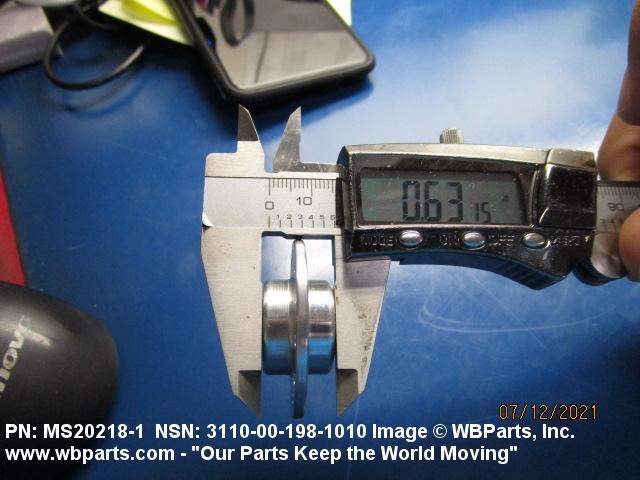

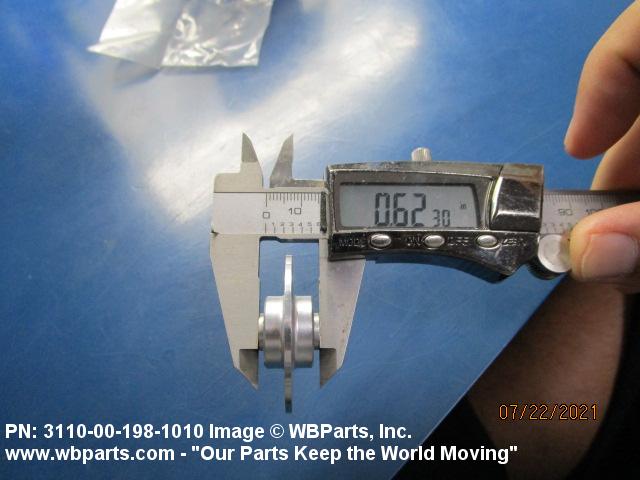

| INNER RING WIDTH | 0.6200 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |

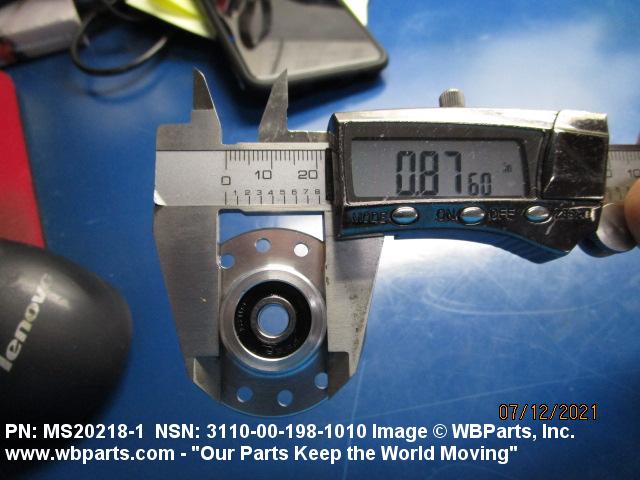

| OUTER RING OUTSIDE DIAMETER | 0.7400 INCHES MINIMUM AND 0.7600 INCHES MAXIMUM |

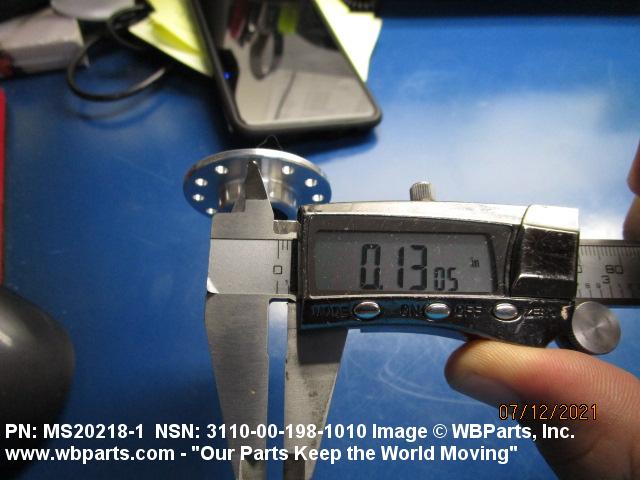

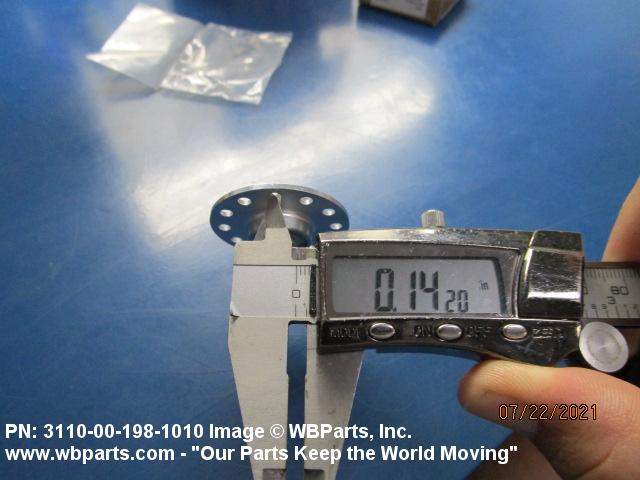

| RIVET HOLE DIAMETER | 0.1400 INCHES MINIMUM AND 0.1450 INCHES MAXIMUM |
| DISTANCE BETWEEN FLANGE HOLE CENTERS | 1.3070 INCHES MINIMUM AND 1.3170 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| RETAINER FABRICATION METHOD | MACHINED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
Restrictions/Controls & Freight Information | NSN 3110-00-198-1010
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
