NSN 3110-00-198-0352 MS202182, MS20218-2, AN2185ANG25
Product Details | BELL CRANK BALL BEARING
3110-00-198-0352 A special double row ball bearing, retainer type, with integral flange.
Part Alternates: MS202182, MS20218-2, AN2185ANG25, AN218-5ANG25, AN218P5, AN218P5ANG25, AN218P5MILG3278A, AS20218, BACB10A87, BCP5W11, BCP5W111, BCP5W11-1, BCP5W11ANG25, BCP5W11MILG3278, BCP5WW11FS10160X, 574323, 5743-23, 10168, 218P5, 3110-00-198-0352, 00-198-0352, 3110001980352, 001980352
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-198-0352 | 00048 ( BEARING, BALL, BELL CRANK ) |

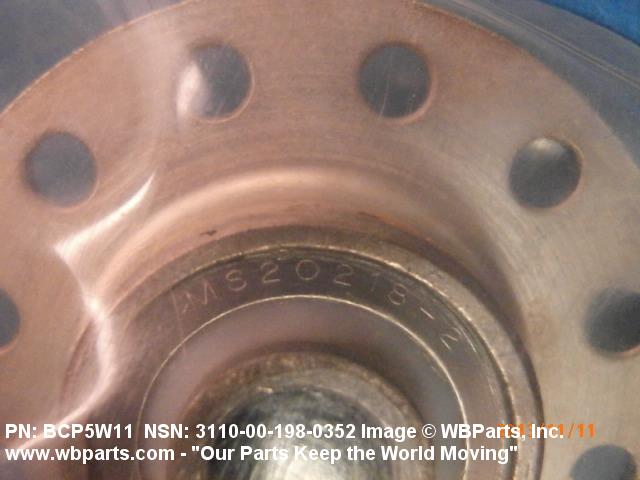

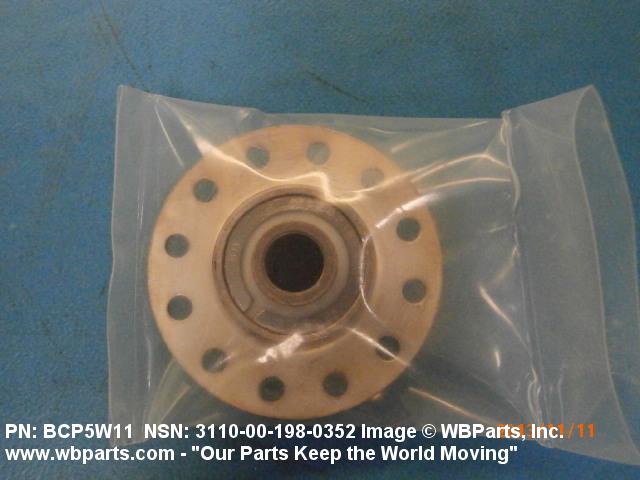

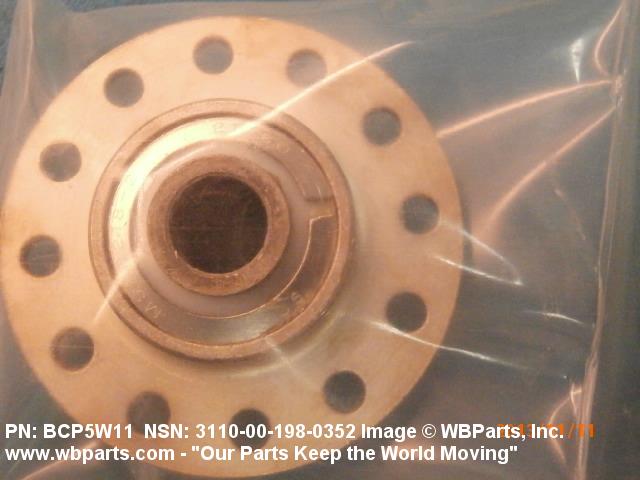

Drawings & Photos | NSN 3110-00-198-0352
Demand History | NSN 3110-00-198-0352
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-198-0352 | 2024-03-68 | 20 | US |
| 3110-00-198-0352 | 2023-12-356 | 5 | US |
| 3110-00-198-0352 | 2018-02-52 | 4 | AU |
| MS202182 | 2016-09-265 | 91 | United States |
| 3110-00-198-0352 | 2016-08-243 | 35 | United States |
| MS202182 | 2015-06-167 | 10 | United States |
| MS202182 | 2015-02-50 | 10 | United States |
| 3110-00-198-0352 | 2013-10-304 | 1 | Austria |
| MS202182 | 2011-11-305 | 35 | us |
| BACB10A87 | 2011-08-228 | 18 | United States |
| BACB10A87 | 2011-08-224 | 16 | US |
| 3110-00-198-0352 | 2009-01-22 | 4 | United States |
| BCP5W11 | 2009-01-22 | 4 | United States |
| 3110-00-198-0352 | 2009-01-22 | 4 | United States |
| 3110-00-198-0352 | 2007-09-255 | 4 | US |
Cross Reference | NSN 3110-00-198-0352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10168 | 04191 | KOLLMORGEN CORP |
| 218P5 | 80059 | JOINT AIRCRAFT COMMITTEE |
| 5743-23 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| AN218-5ANG25 | 80059 | JOINT AIRCRAFT COMMITTEE |
| AN218P5 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN218P5ANG25 | 80059 | JOINT AIRCRAFT COMMITTEE |
| AN218P5MILG3278A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS20218 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACB10A87 | 81205 | THE BOEING COMPANY DBA BOEING |
| BCP5W11 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| BCP5W11-1 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| BCP5W11ANG25 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| BCP5W11MILG3278 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| BCP5WW11FS10160X | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| MS20218-2 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| MS20218-2 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-198-0352
Related Products | NSN 3110-00-198-0352
Technical Data | NSN 3110-00-198-0352
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 218 DOUBLE ROW BALL, DOUBLE CLOSURE, RIGID INNER RING EXTENDED BOTH SIDES |
| RIVET HOLE QUANTITY | 12 |
| FLANGE OUTSIDE DIAMETER | 1.6875 INCHES NOMINAL |
| FLANGE WIDTH | 0.0625 INCHES NOMINAL |
| OUTER RING WIDTH | 0.5620 INCHES NOMINAL |
| INNER RING WIDTH | 0.6875 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 0.8750 INCHES NOMINAL |
| RIVET HOLE DIAMETER | 0.1406 INCHES NOMINAL |
| DISTANCE BETWEEN FLANGE HOLE CENTERS | 1.3750 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| RETAINER FABRICATION METHOD | MACHINED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
Restrictions/Controls & Freight Information | NSN 3110-00-198-0352
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-198-0352
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
