NSN 3110-00-143-3025 AB8ANG25, DAS832B, DAS8-32B
Product Details | AIRFRAME ROLLER BEARING
3110-00-143-3025 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened ROLLER, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, ROLLER, CYLINDRICAL.
Part Alternates: AB8ANG25, DAS832B, DAS8-32B, DAS832BQ, DAS8-32BQ, J10069, AB8, 3110-00-143-3025, 00-143-3025, 3110001433025, 001433025
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-143-3025 | 00046 ( BEARING, ROLLER, AIRFRAME ) |

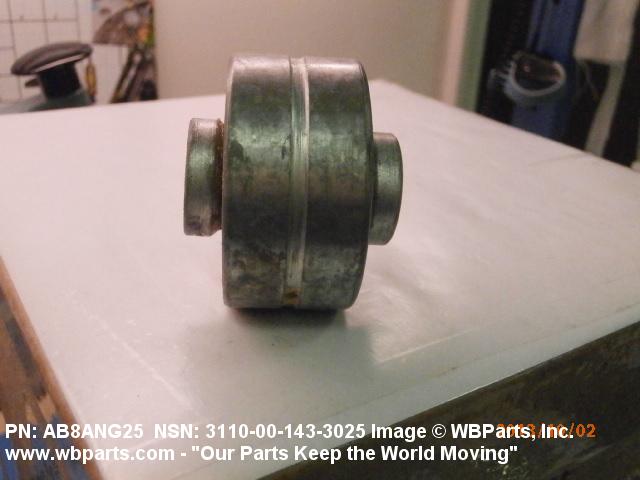

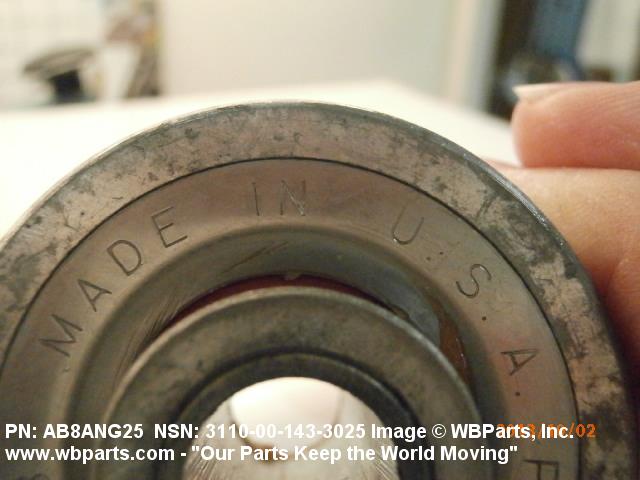

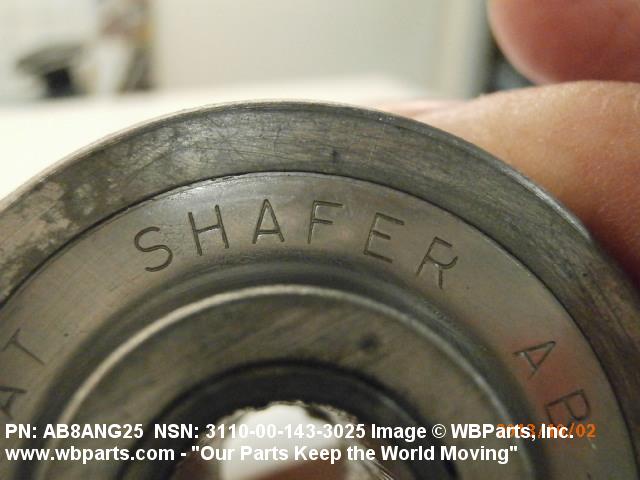

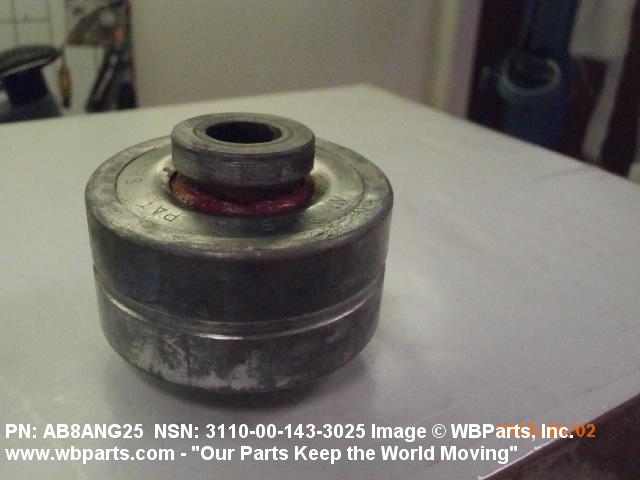

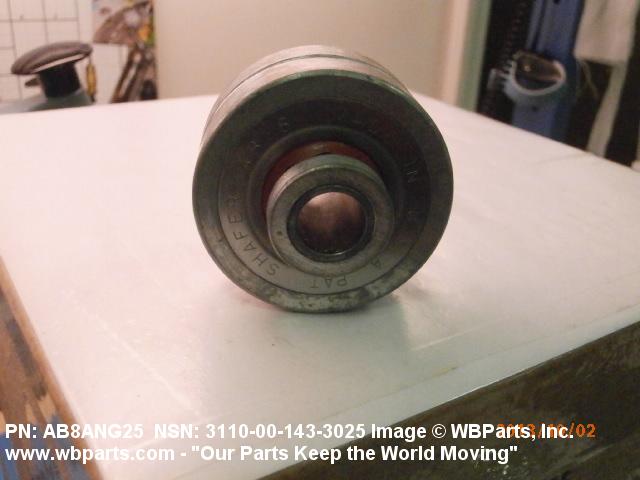

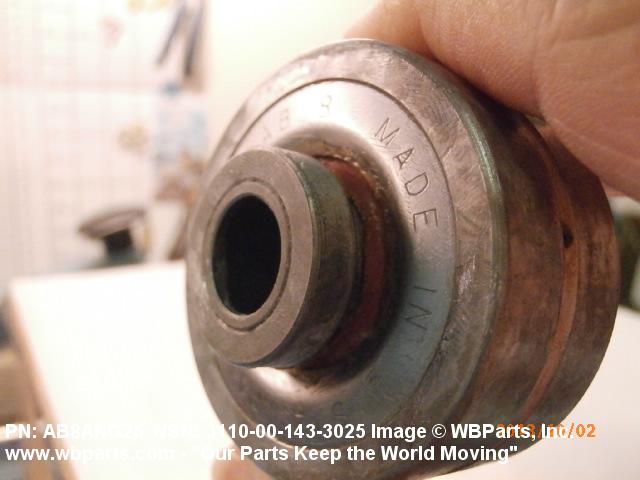

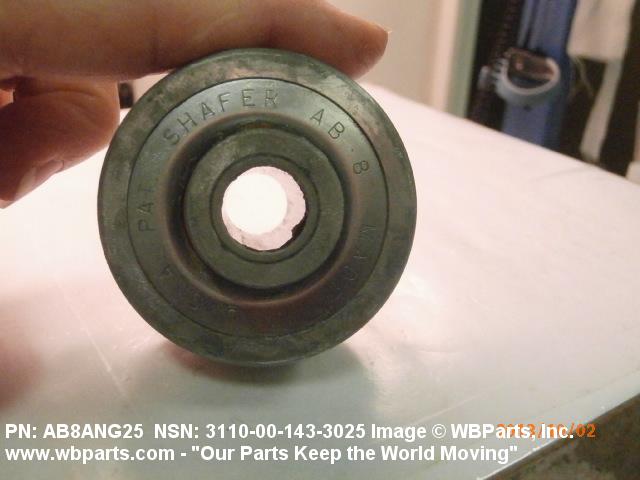

Drawings & Photos | NSN 3110-00-143-3025
Demand History | NSN 3110-00-143-3025
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-143-3025 | 2016-05-152 | 24 | United States |
| DAS832B | 2015-09-266 | 24 | United States |
| DAS832B | 2013-09-263 | 12 | United States |
Cross Reference | NSN 3110-00-143-3025
| Part Number | Cage Code | Manufacturer |
|---|---|---|

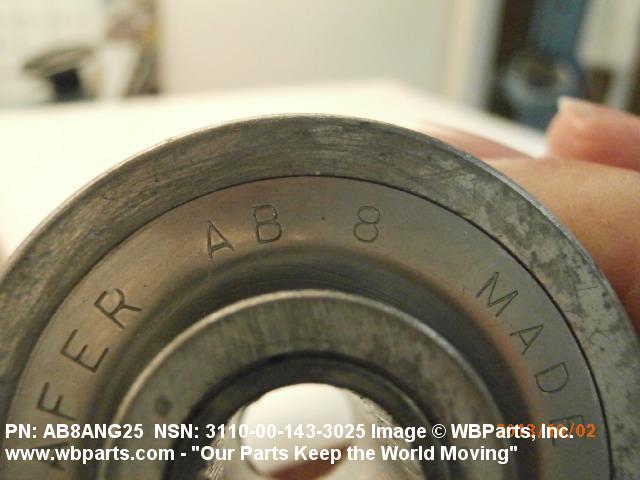

| AB8 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| AB8ANG25 | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| DAS8-32B | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| DAS8-32BQ | 77896 | REXNORD INDUSTRIES, LLC DIV BEARING OPERATION |
| J10069 | 07955 | MULTEK FLEXIBLE CIRCUITS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-143-3025
Related Products | NSN 3110-00-143-3025
Technical Data | NSN 3110-00-143-3025
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP 4140 LOCKING COLLAR STEEL COMP E52100 OUTER RING COPPER ALLOY RETAINER RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL STEEL COMP E52100 SHAFT STEEL COMP 430 SHIELD STEEL COMP 4140 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING AMS 6382 ASSN STD SINGLE MATERIAL RESPONSE LOCKING COLLAR MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING QQ-C-390 FED SPEC SINGLE MATERIAL RESPONSE RETAINER MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE SHAFT QQ0S0763 FED SPEC SINGLE MATERIAL RESPONSE SHIELD AMS 6382 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 276 CONCAVE ROLLERS, DOUBLE CLOSURE, SELF ALIGNING |

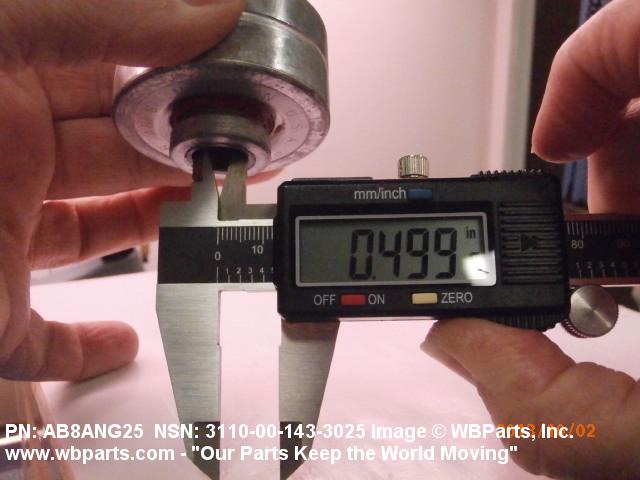

| BORE DIAMETER | 0.4995 INCHES NOMINAL |

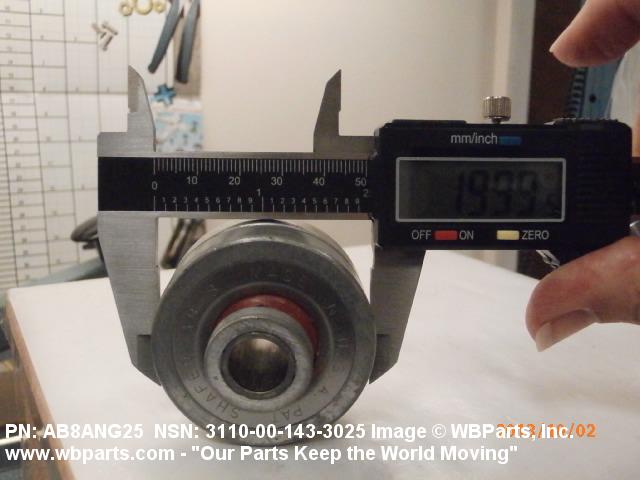

| OVERALL OUTSIDE DIAMETER | 2.0000 INCHES NOMINAL |

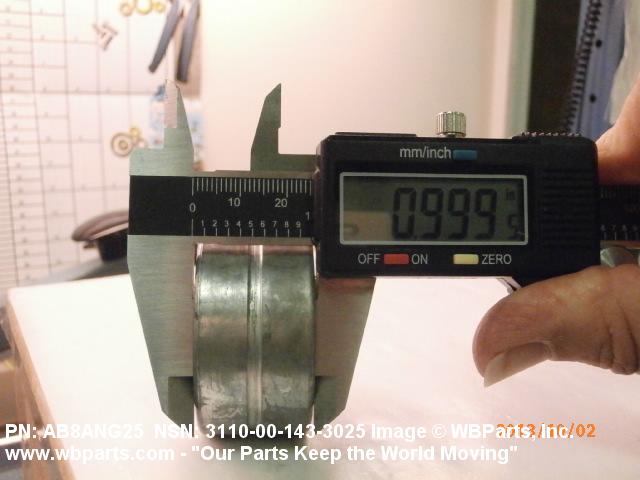

| OUTER RING WIDTH | 1.0000 INCHES NOMINAL |

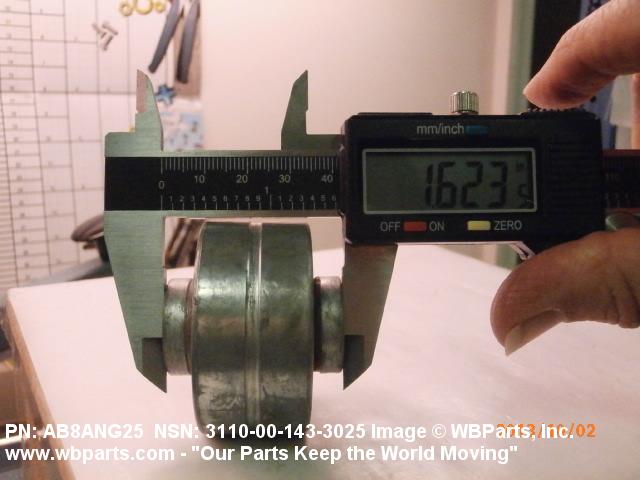

| INNER RING WIDTH | 1.6250 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| RETAINER FABRICATION METHOD | CAST |
| SHIELD QUANTITY | 2 |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| SPECIAL FEATURES | 10 DEG SELF ALIGNMENT IN EITHER DIRECTION,LUBRICANT HOLE AND GROOVE IN OUTER RING,HEAT TREATED SLEEVE AND COLLARS ON INNER RING |
Restrictions/Controls & Freight Information | NSN 3110-00-143-3025
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-143-3025
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
