NSN 3110-00-123-7139 2109547, 00-123-7139, 001237139
Product Details | ROD END BALL BEARING
3110-00-123-7139 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: 2109547, 3110-00-123-7139, 00-123-7139, 3110001237139, 001237139
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-123-7139 | 00049 ( BEARING, BALL, ROD END ) |
Drawings & Photos | NSN 3110-00-123-7139
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-123-7139
Related Products | NSN 3110-00-123-7139
Technical Data | NSN 3110-00-123-7139
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 30.00 DEGREES NOMINAL |
| OVERALL LENGTH | 1.3750 INCHES NOMINAL |
| BORE DIAMETER | 0.3125 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.6250 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3550 INCHES NOMINAL |
| INNER RING WIDTH | 0.9004 INCHES MINIMUM AND 0.9009 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 0.2813 INCHES NOMINAL |

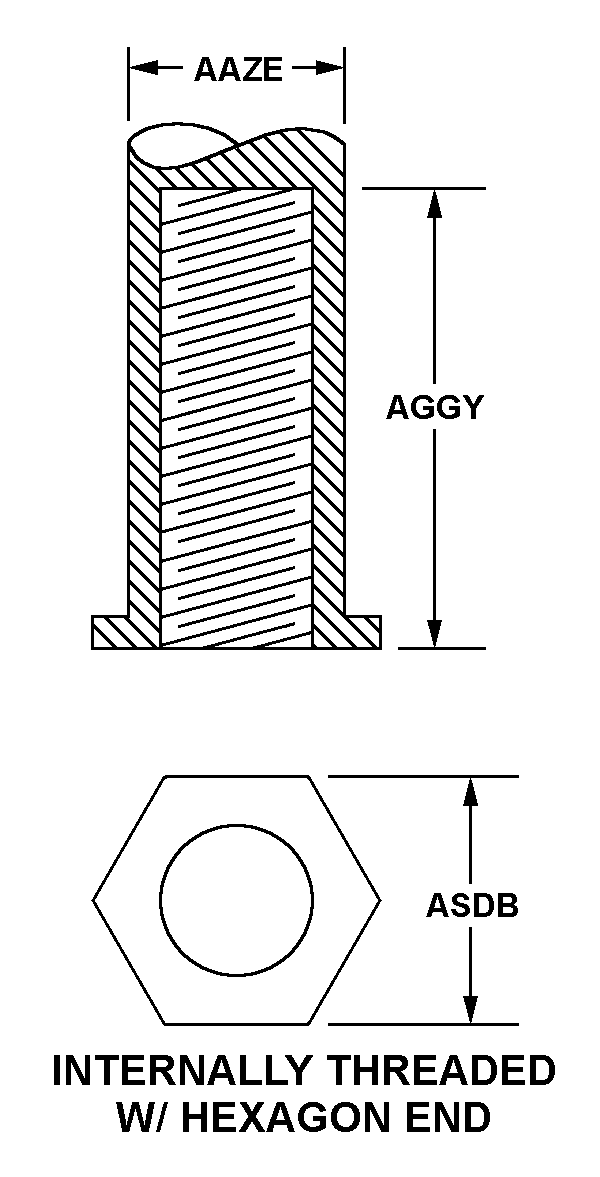

| SHANK STYLE | 657 INTERNALLY THREADED W/HEXAGON END |
| SHANK DIAMETER | 0.3125 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.4375 INCHES NOMINAL |
| SHANK THREAD LENGTH | 0.5000 INCHES NOMINAL |
| ALIGNMENT TYPE | RIGID |
| FEATURES PROVIDED | ALIGNING RING |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 2109547 |
Restrictions/Controls & Freight Information | NSN 3110-00-123-7139
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-123-7139
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
