NSN 3110-00-769-1025 ABR4M8GP, N1691, N1691/85
Product Details | ROD END BALL BEARING
3110-00-769-1025 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: ABR4M8GP, N1691, N1691/85 , N169185, 6828147, 3110-00-769-1025, 00-769-1025, 3110007691025, 007691025
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-769-1025 | 00049 ( BEARING, BALL, ROD END ) |

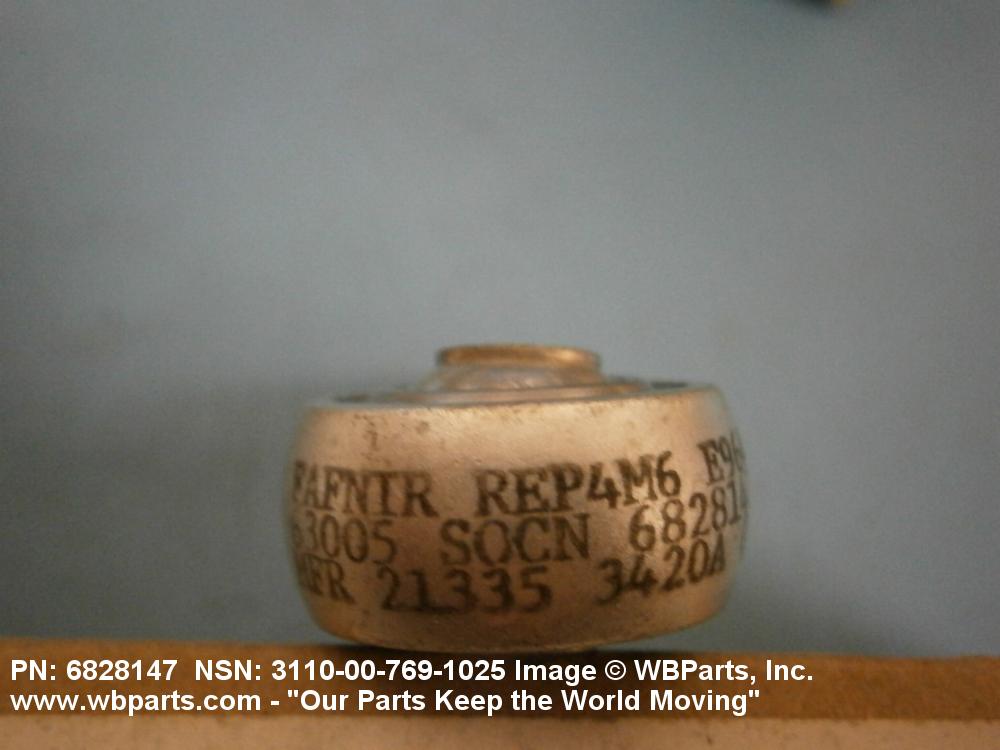

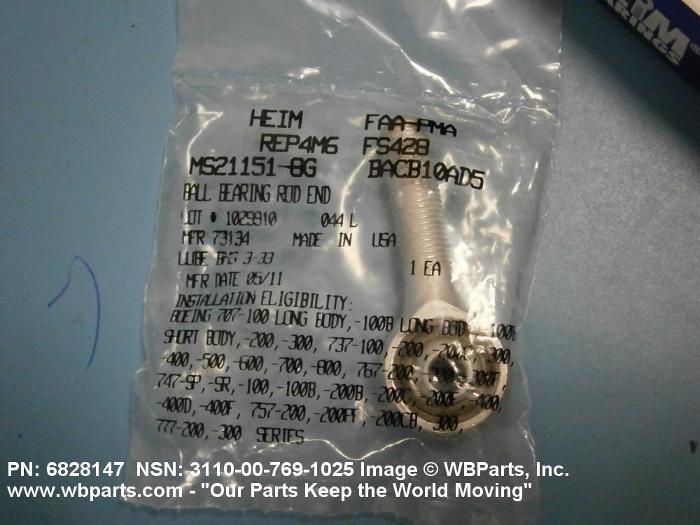

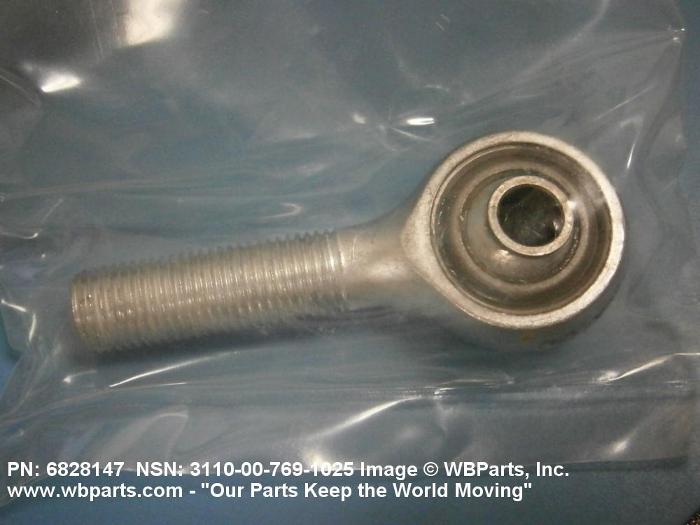

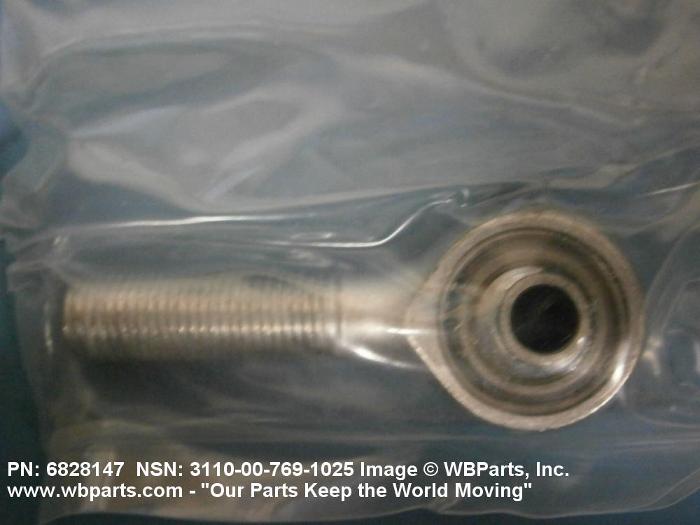

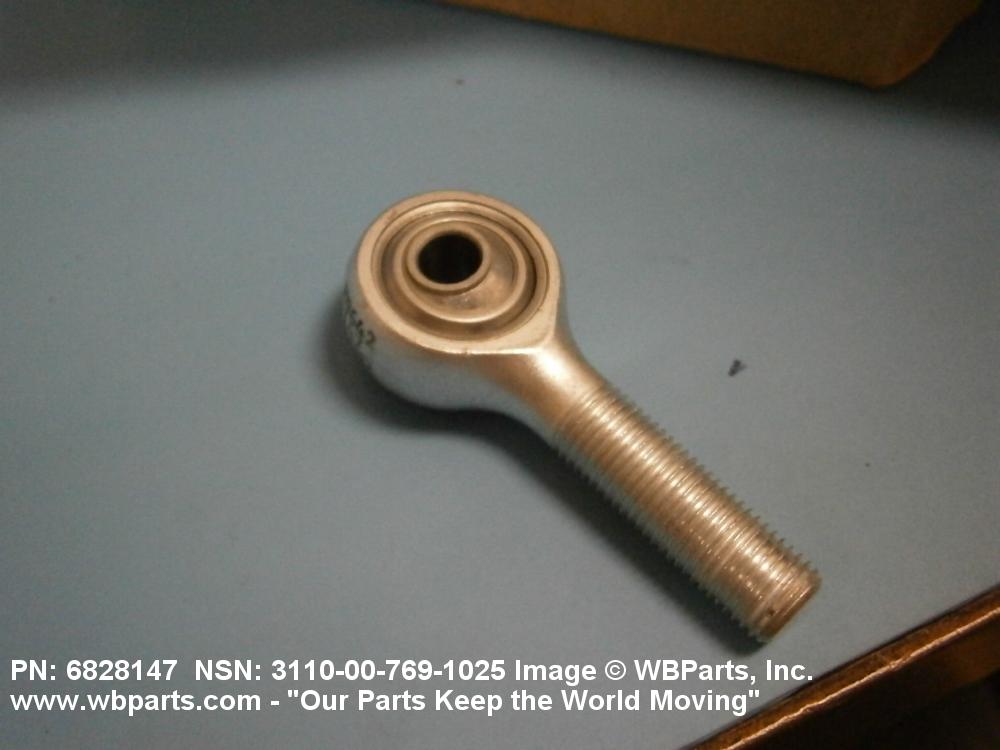

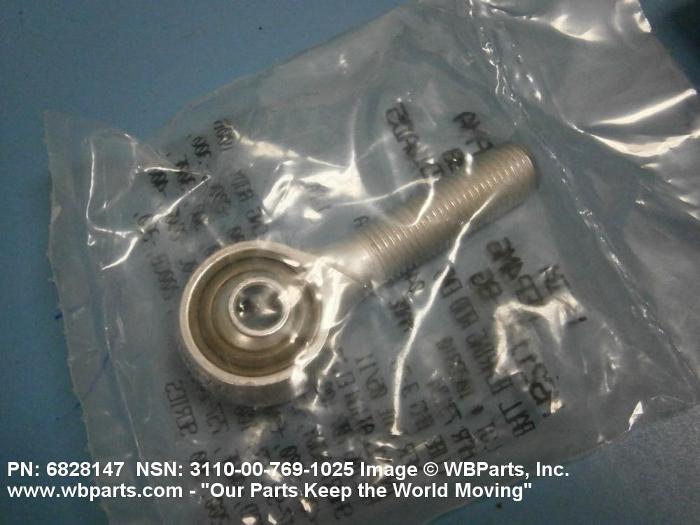

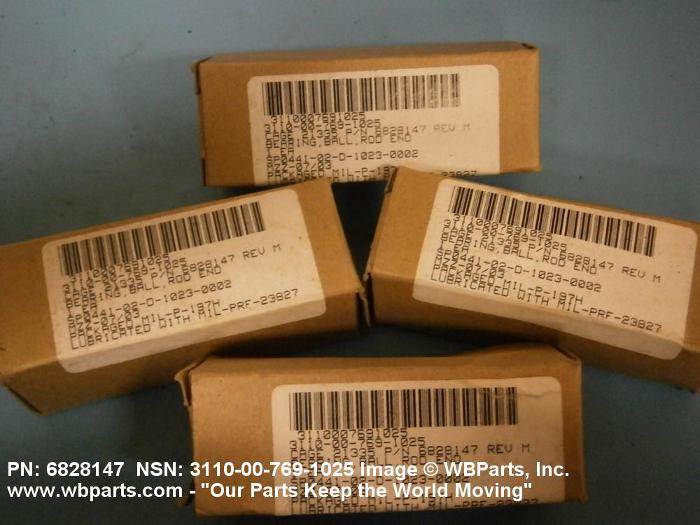

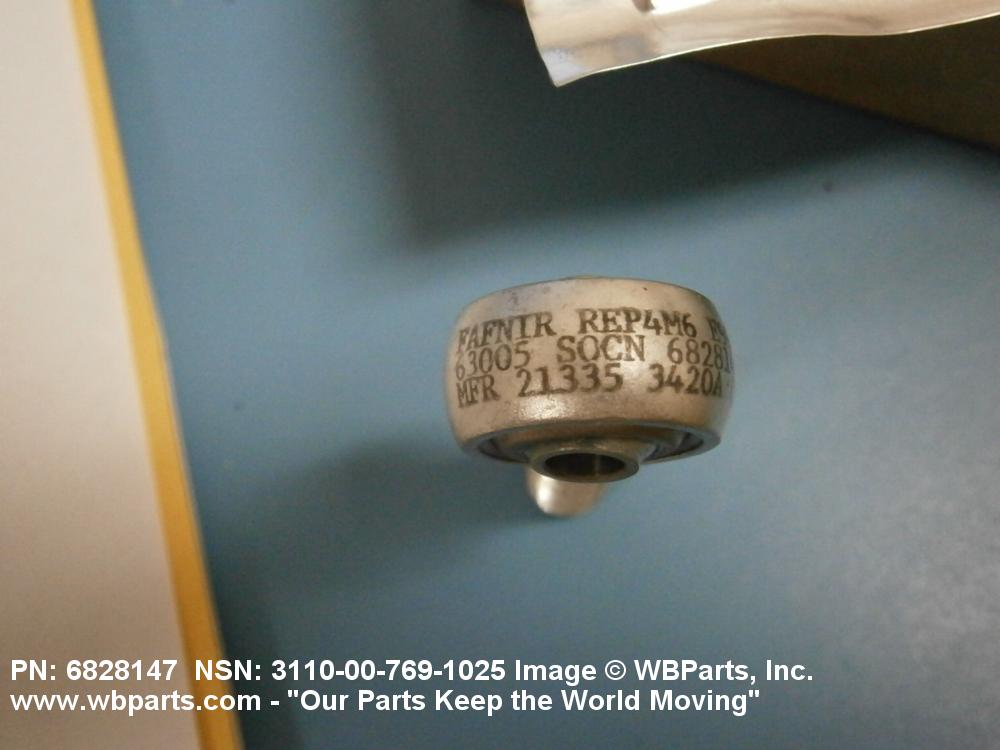

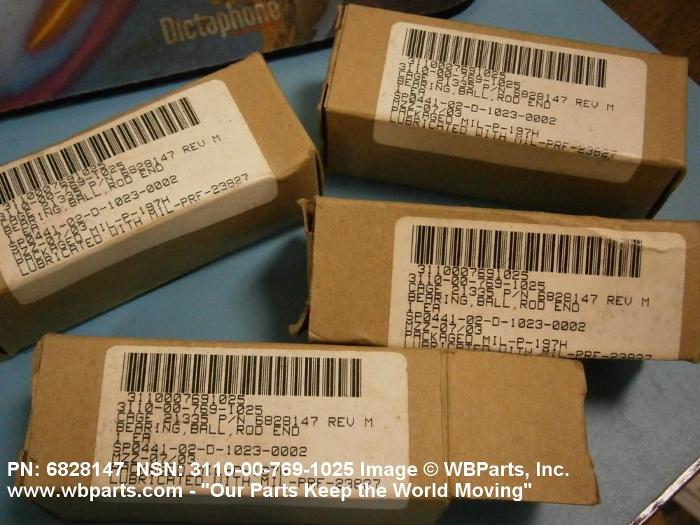

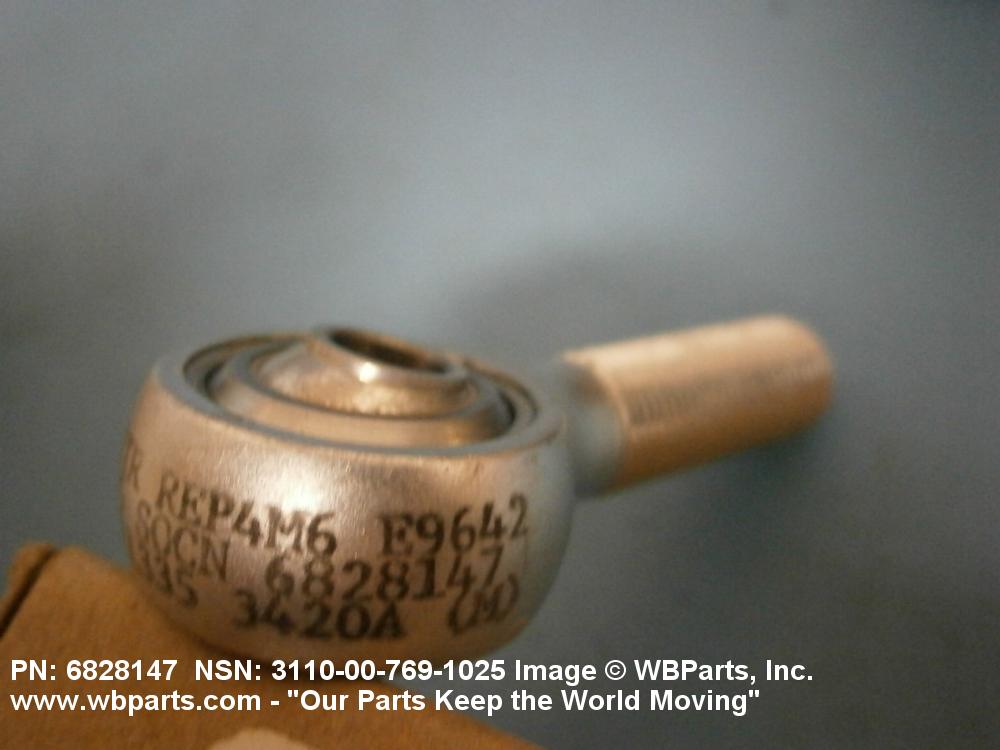

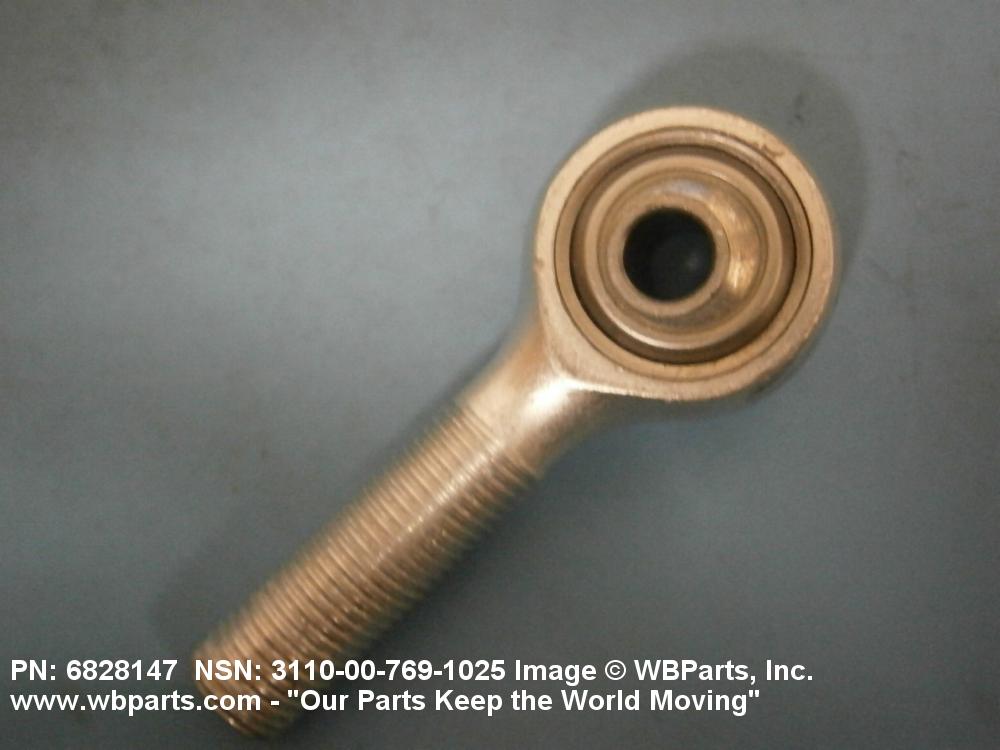

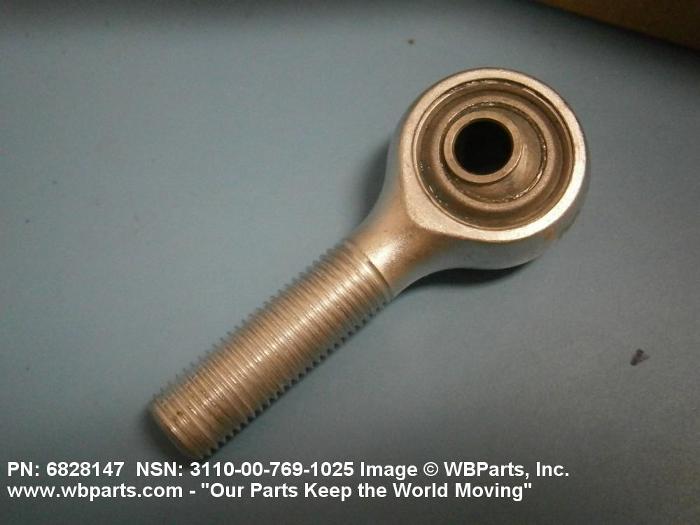

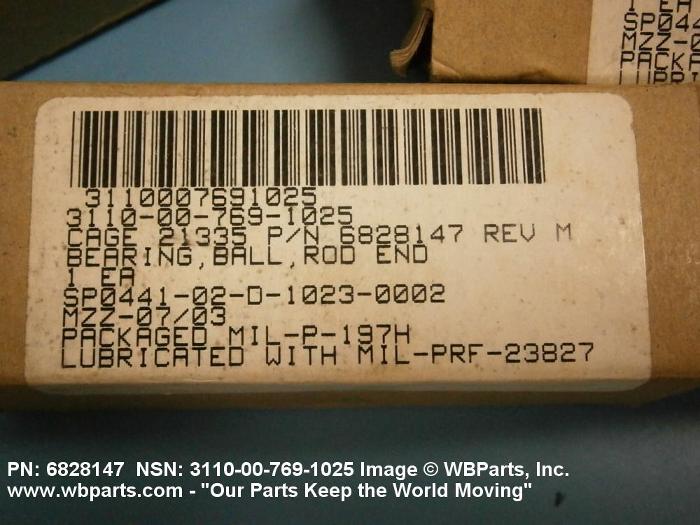

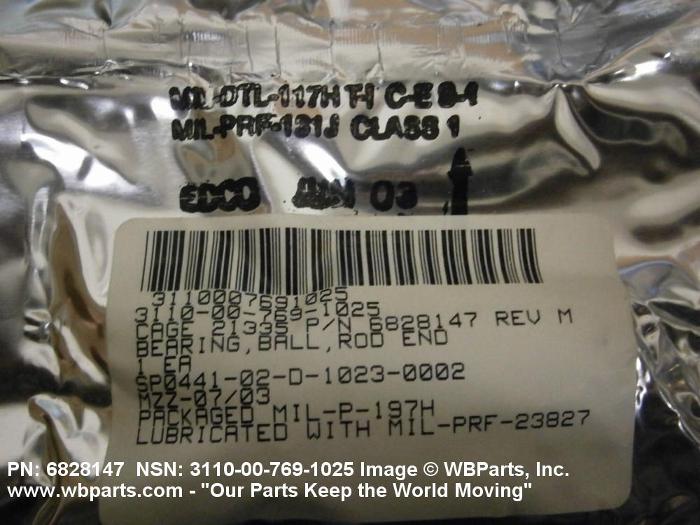

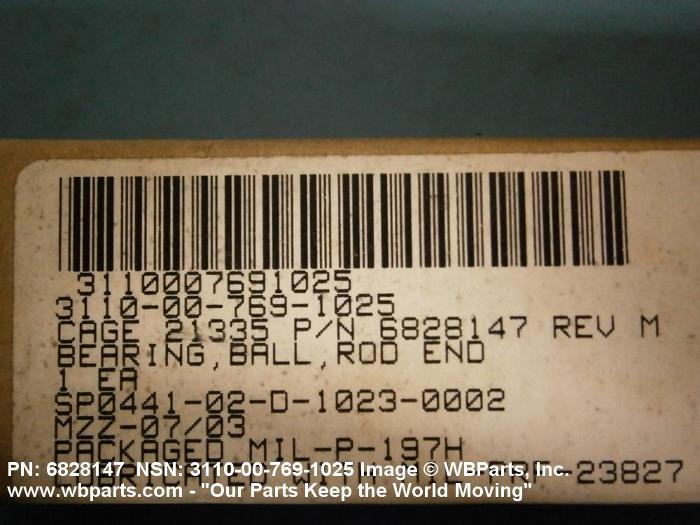

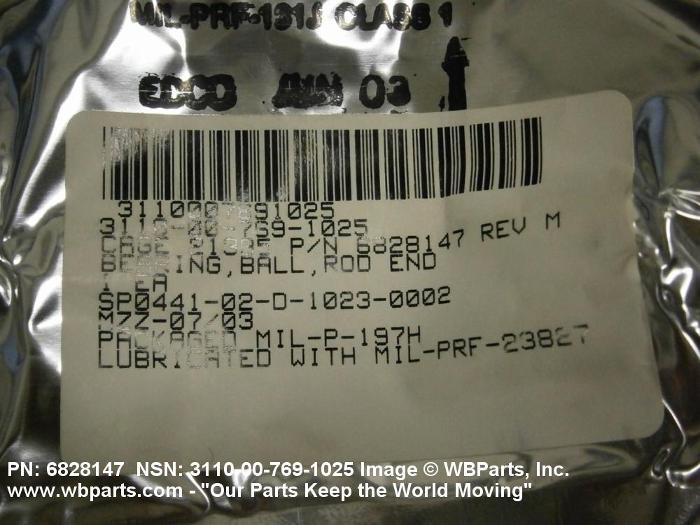

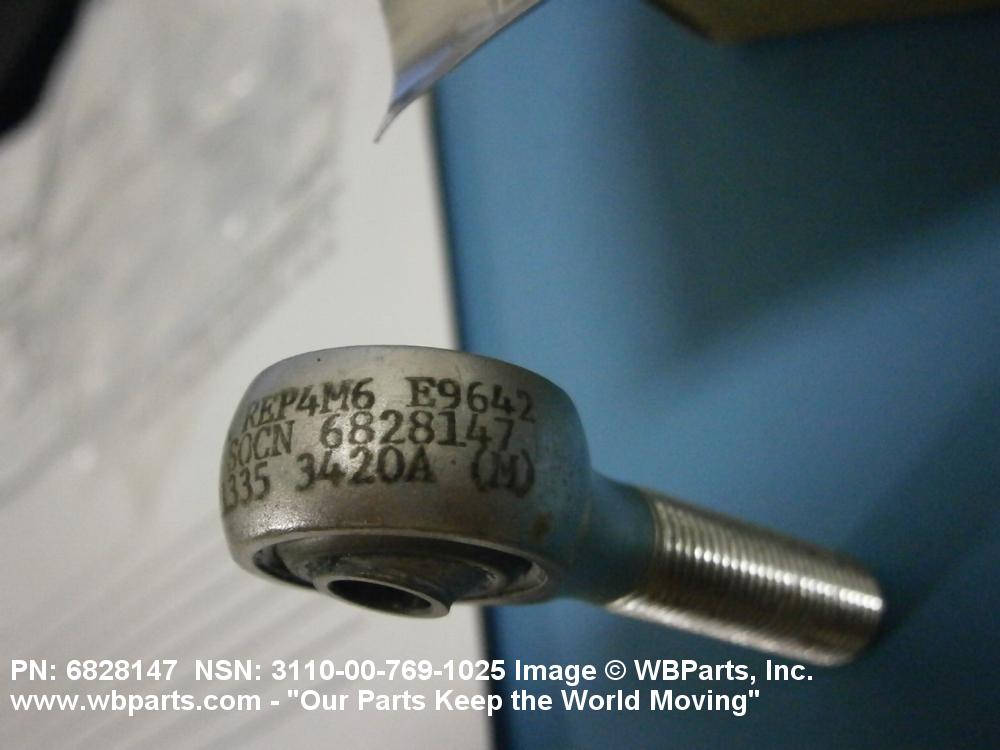

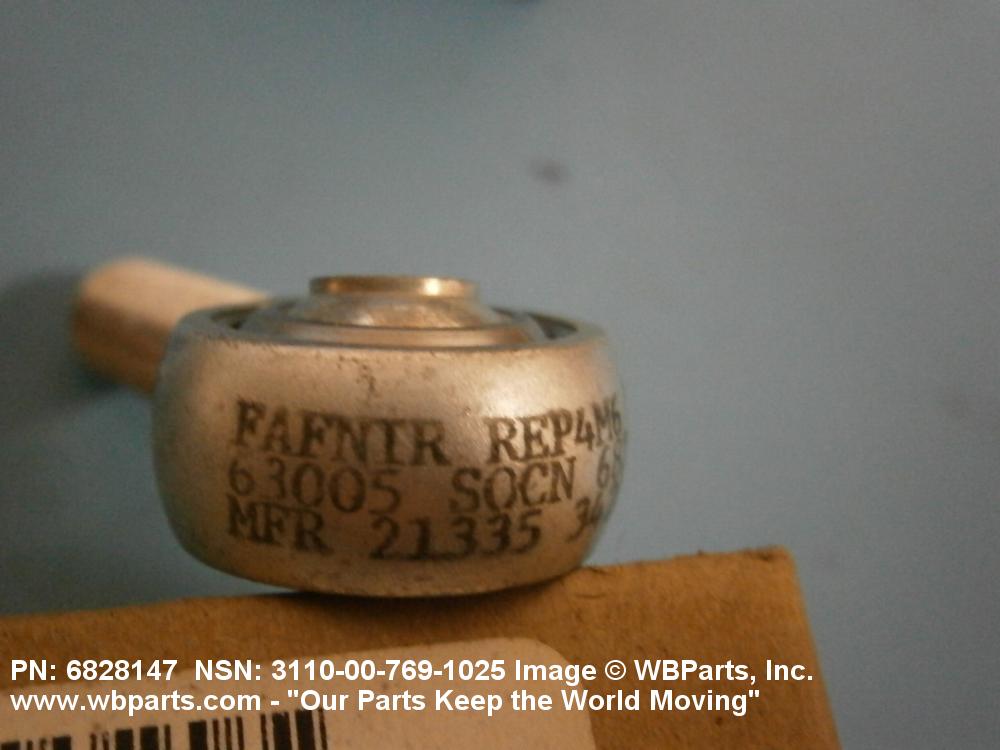

Drawings & Photos | NSN 3110-00-769-1025
Demand History | NSN 3110-00-769-1025
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6828147 | 2024-09-267 | 200 | DIBBS |
| 6828147 | 2024-09-259 | 200 | DIBBS |
| 6828147 | 2024-06-156 | 243 | DIBBS |
| 6828147 | 2024-05-140 | 243 | DIBBS |
| 6828147 | 2024-01-10 | 334 | DIBBS |
| 6828147 | 2023-12-351 | 334 | DIBBS |
| 6828147 | 2023-07-207 | 199 | DIBBS |
| 6828147 | 2023-07-197 | 199 | DIBBS |
| 6828147 | 2022-08-224 | 228 | DIBBS |
| 6828147 | 2022-06-173 | 228 | DIBBS |
| 6828147 | 2022-02-48 | 61 | DIBBS |
| 3110-00-769-1025 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-00-769-1025 | 2016-07-204 | 1 | DIBBS-RFPs |
| 3110-00-769-1025 | 2013-05-145 | 0 | DIBBS |
| 3110-00-769-1025 | 2012-06-166 | 30 | United States |
| 6828147 | 2011-10-286 | 10 | United States |
| 6828147 | 2011-10-286 | 14 | United States |
| 3110-00-769-1025 | 2011-09-251 | 551 | DIBBS |
| 3110-00-769-1025 | 2011-08-231 | 300 | United States |
| 3110-00-769-1025 | 2011-07-193 | 551 | DIBBS |
| 3110-00-769-1025 | 2011-07-187 | 1136 | DIBBS |
| 3110-00-769-1025 | 2011-02-47 | 765 | DIBBS |
| 3110-00-769-1025 | 2011-01-25 | 765 | DIBBS |
| 3110-00-769-1025 | 2010-08-216 | 861 | DIBBS |
| 3110-00-769-1025 | 2010-05-132 | 305 | DIBBS |
| 3110-00-769-1025 | 2010-02-55 | 858 | DIBBS |
| 3110-00-769-1025 | 2009-11-324 | 846 | DIBBS |
| 3110-00-769-1025 | 2009-09-247 | 541 | DIBBS |
| 3110-00-769-1025 | 2009-06-159 | 670 | DIBBS |
| 3110-00-769-1025 | 2009-04-97 | 452 | DIBBS |
| 3110-00-769-1025 | 2009-01-02 | 401 | DIBBS |
| 3110-00-769-1025 | 2008-10-277 | 392 | DIBBS |
| 3110-00-769-1025 | 2008-04-92 | 463 | DIBBS |
Cross Reference | NSN 3110-00-769-1025
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6828147 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| 6828147 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 6828147 | 24617 | GENERAL MOTORS CORP |
| 6828147 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 6828147 | 63005 | ROLLS-ROYCE CORPORATION |
| 6828147 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| 6828147 | 73342 | ALLISON TRANSMISSION, INC. |
| ABR4M-8G(P) | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| ABR4M-8G(P) | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-769-1025
Related Products | NSN 3110-00-769-1025
Technical Data | NSN 3110-00-769-1025
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING RUBBER SYNTHETIC SEAL STEEL SHAFT |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 2.3440 INCHES NOMINAL |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.9380 INCHES NOMINAL |
| OUTER RING WIDTH | 0.4380 INCHES NOMINAL |
| INNER RING WIDTH | 0.5930 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 1.8750 INCHES NOMINAL |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| SHANK THREAD LENGTH | 1.1250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| MANUFACTURERS CODE | 63005 |
| MFR SOURCE CONTROLLING REFERENCE | 6828147 |
Restrictions/Controls & Freight Information | NSN 3110-00-769-1025
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-769-1025
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
