NSN 3110-00-124-1341 C87502X1E4, 202KLDFS50160, 222002
Product Details | ANNULAR BALL BEARING
3110-00-124-1341 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: C87502X1E4, 202KLDFS50160, 222002, 22-2002, 8035343, 3110-00-124-1341, 00-124-1341, 3110001241341, 001241341
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 NOV 1968 | 00-124-1341 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-124-1341
Demand History | NSN 3110-00-124-1341
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 222002 | 2021-11-313 | 1 | US |
| 222002 | 2018-02-44 | 1 | US |
| 222002 | 2018-02-40 | 1 | MX |
Cross Reference | NSN 3110-00-124-1341
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-124-1341
Related Products | NSN 3110-00-124-1341
Technical Data | NSN 3110-00-124-1341
| Characteristic | Specifications |
|---|---|

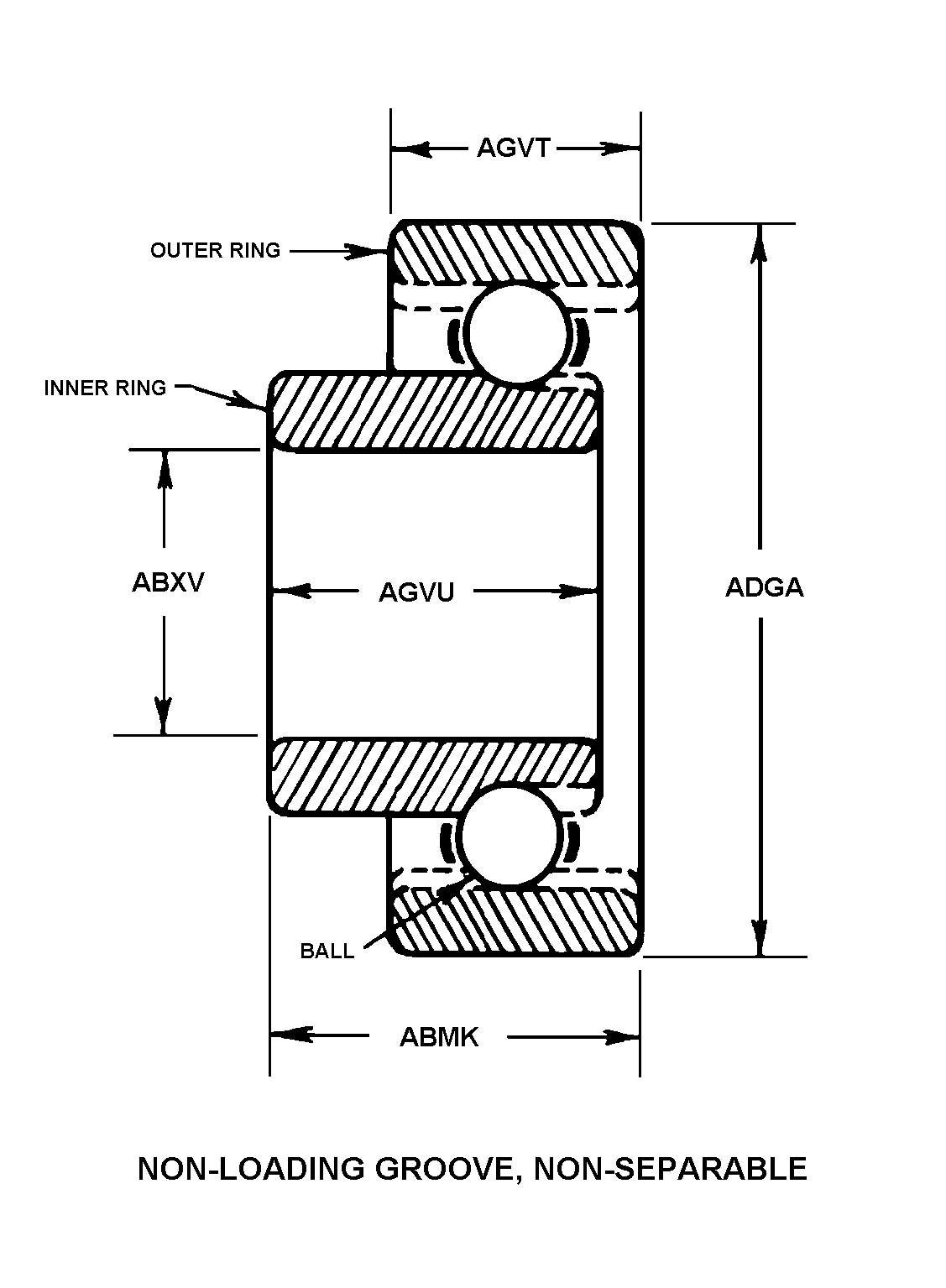

| STYLE DESIGNATOR | 22A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.4900 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| BORE DIAMETER | 0.5903 INCHES MINIMUM AND 0.5906 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.3775 INCHES MINIMUM AND 1.3780 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.4281 INCHES MINIMUM AND 0.4331 INCHES MAXIMUM |
| INNER RING WIDTH | 0.4750 INCHES MINIMUM AND 0.4800 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| SHIELD QUANTITY | 2 |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| INTERNAL CLEARANCE | 0.0001 INCHES MINIMUM RADIAL AND 0.0007 INCHES MAXIMUM RADIAL |
| BEARING PRELOAD RATING | 2.2 POUNDS NOMINAL |
| MANUFACTURERS CODE | 18876 |
| MFR SOURCE CONTROLLING REFERENCE | 8035343 |
Restrictions/Controls & Freight Information | NSN 3110-00-124-1341
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-124-1341
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
