NSN 3110-00-083-1282 MCS1912903, MCS1912-903, MCS1912906

Product Details | CYLINDRICAL ROLLER BEARING

3110-00-083-1282 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.

Part Alternates: MCS1912903, MCS1912-903, MCS1912906, MCS1912-906, BR11711RW, BR1171-1RW, 51721, 3110-00-083-1282, 00-083-1282, 3110000831282, 000831282

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-083-1282	00015 ( BEARING, ROLLER, CYLINDRICAL )

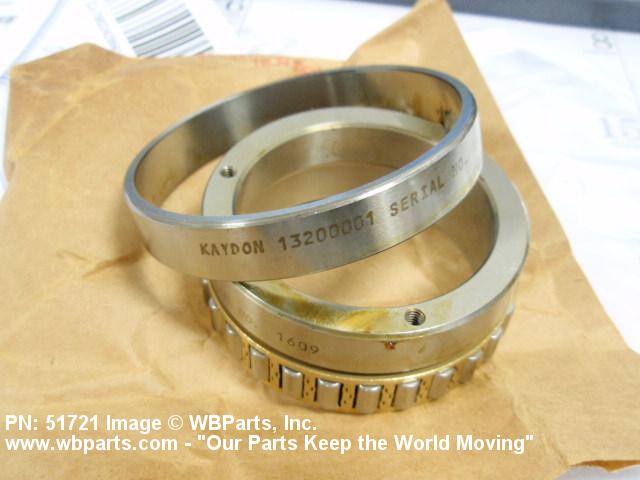

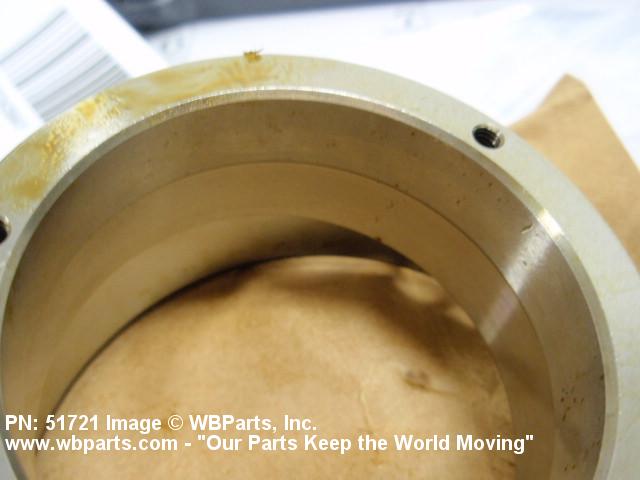

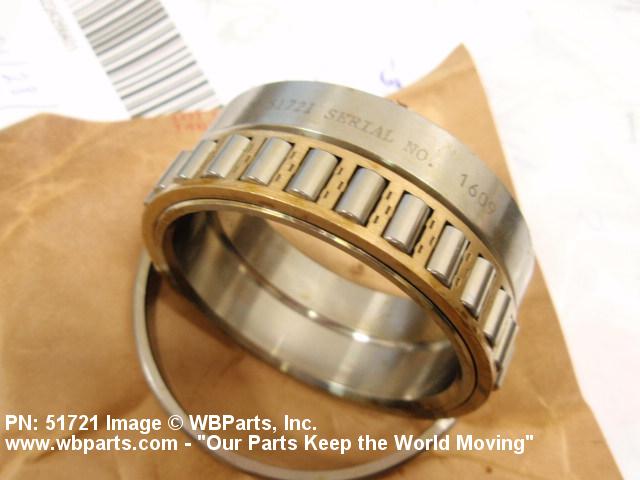

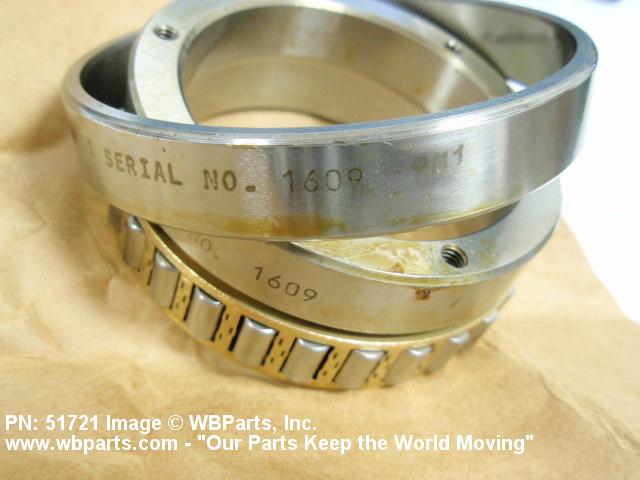

Drawings & Photos | NSN 3110-00-083-1282

Part Number	Request Date	QTY	Origin
51721	2019-06-169	111	DIBBS
51721	2019-01-30	294	DIBBS
3110-00-083-1282	2018-12-343	96	DIBBS
3110-00-083-1282	2018-07-189	260	DIBBS
3110-00-083-1282	2018-05-150	10	DIBBS
3110-00-083-1282	2018-05-142	10	DIBBS
51721	2010-01-08	1	Italy
MCS1912903	2010-01-05	2	Italy
3110-00-083-1282	2007-09-247	22	DIBBS
3110-00-083-1282	2007-06-169	25	DIBBS
3110-00-083-1282	2007-04-106	35	DIBBS

Cross Reference | NSN 3110-00-083-1282

Part Number	Cage Code	Manufacturer
51721	59211	PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY
51721	93835	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC SYSTEMS DIVISION
BR1171-1RW	92563	MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION
MCS1912-903	51600	EMERSON POWER TRANSMISSION CORPORATION
MCS1912-906	51600	EMERSON POWER TRANSMISSION CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-083-1282

Compare

Related Products | NSN 3110-00-083-1282

3110-00-083-1514, 3110-00-083-1623, 3110-00-083-1627, 3110-00-083-1628, 3110-00-083-1782

Technical Data | NSN 3110-00-083-1282

Characteristic	Specifications
OVERALL WIDTH	0.5570 INCHES MINIMUM AND 0.5620 INCHES MAXIMUM
BORE DIAMETER	2.4350 INCHES MINIMUM AND 2.4400 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	3.3420 INCHES MINIMUM AND 3.3430 INCHES MAXIMUM
SURFACE FINISH	GROUND
LOCATING FEATURE	NONLOCATING
SPECIAL FEATURES	EXTENDED INNER RING

Restrictions/Controls & Freight Information | NSN 3110-00-083-1282

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-083-1282

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
