NSN 3110-00-065-8223 2CE9222, 6849475, 00-065-8223
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-065-8223 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: 2CE9222, 6849475, 3110-00-065-8223, 00-065-8223, 3110000658223, 000658223
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 02 DEC 1999 | 00-065-8223 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-065-8223
Demand History | NSN 3110-00-065-8223
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6849475 | 2012-11-319 | 5 | ID |
| 3110-00-065-8223 | 2011-10-301 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-065-8223
Technical Data | NSN 3110-00-065-8223
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP M50 INNER RING STEEL COMP M50 OUTER RING STEEL COMP 4340 RETAINER STEEL COMP M50 ROLLER |

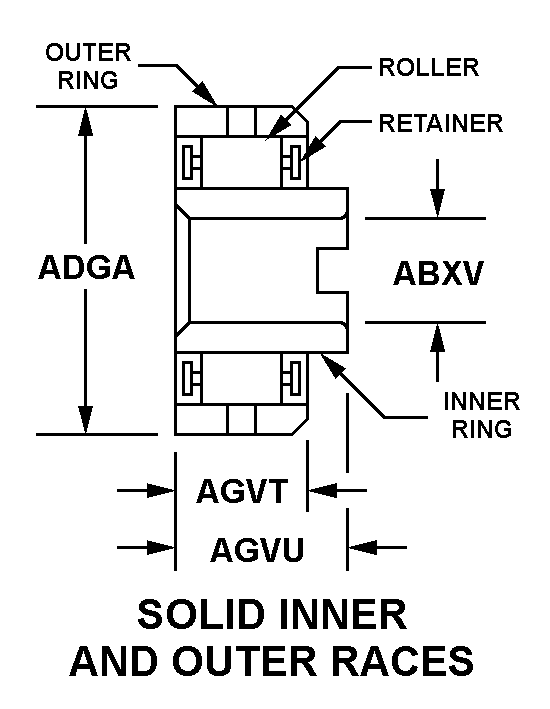

| STYLE DESIGNATOR | 304 SOLID INNER AND OUTER RACES |
| BORE DIAMETER | 2.5588 INCHES MINIMUM AND 2.5591 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.1837 INCHES MINIMUM AND 4.1840 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.0575 INCHES MINIMUM AND 1.0625 INCHES MAXIMUM |
| INNER RING WIDTH | 0.8950 INCHES MINIMUM AND 0.9000 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0017 INCHES MINIMUM RADIAL AND 0.0023 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | RETAINER TO BE SILVER PLATED AMS 2410 |
| MANUFACTURERS CODE | 73342 |
| MFR SOURCE CONTROLLING REFERENCE | 6849475 |
Restrictions/Controls & Freight Information | NSN 3110-00-065-8223
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
