NSN 3020-01-196-4009 5M00006, 5M000065, 5M00006-5
Product Details | GROOVE PULLEY
3020-01-196-4009 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 5M00006, 5M000065, 5M00006-5, 3020-01-196-4009, 01-196-4009, 3020011964009, 011964009
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 DEC 1984 | 01-196-4009 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-01-196-4009
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-196-4009
Technical Data | NSN 3020-01-196-4009
| Characteristic | Specifications |
|---|---|

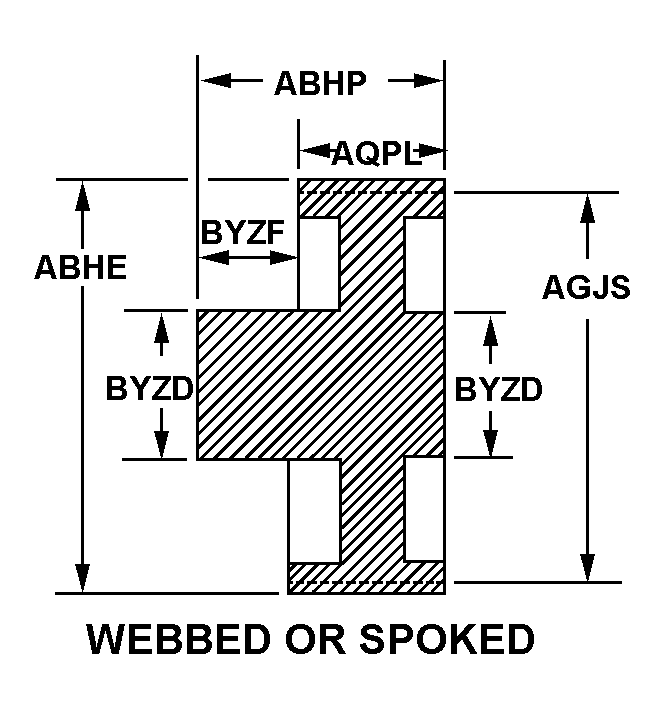

| STYLE DESIGNATOR | A6 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 13.000 INCHES NOMINAL |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| PITCH DIAMETER | 12.000 INCHES NOMINAL |
| FACE WIDTH | 1.500 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.500 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.500 INCHES NOMINAL BB END |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 1.000 INCHES NOMINAL |
| GROOVE WIDTH | 0.750 INCHES NOMINAL |
| GROOVE RADIUS | 0.375 INCHES NOMINAL |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 1.7493 INCHES NOMINAL |
| BORE LENGTH | 2.000 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | USE WIRE ROPE, TYPE EM GOVERNOR, TURNBULL ELEVATOR INC. |
