Product Details | SPUR GEAR

3020-01-128-5877 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.

Part Alternates: 10106679 , 2771555, 2771555102, 2771555-102, 3020-01-128-5877, 01-128-5877, 3020011285877, 011285877

Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain

Supply Group (FSG) NSN Assign. NIIN
30 25 MAR 1982 01-128-5877

Drawings & Photos | NSN 3020-01-128-5877


Demand History | NSN 3020-01-128-5877

Part Number Request Date QTY Origin
3020-01-128-5877 2017-04-96 21 DIBBS
3020-01-128-5877 2017-03-85 21 DIBBS
3020-01-128-5877 2016-12-339 12 DIBBS
3020-01-128-5877 2016-09-262 6 DIBBS
3020-01-128-5877 2016-03-83 8 DIBBS
3020-01-128-5877 2016-01-24 4 DIBBS
3020-01-128-5877 2015-07-193 4 DIBBS
3020-01-128-5877 2010-08-239 7 DIBBS
3020-01-128-5877 2009-04-106 11 DIBBS
3020-01-128-5877 2009-03-72 8 DIBBS
3020-01-128-5877 2009-03-68 8 DIBBS
3020-01-128-5877 2009-02-41 5 DIBBS

Cross Reference | NSN 3020-01-128-5877

Part Number Cage Code Manufacturer
2771555 92003 PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
2771555-102 92003 PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
2771555-102 93835 PARKER-HANNIFIN CORPORATION DBA HYDRAULIC SYSTEMS DIVISION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3020-01-128-5877

Technical Data | NSN 3020-01-128-5877

Characteristic Specifications
MATERIAL STEEL COMP 630 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AMS5643,17-4PH ASSN STD SINGLE MATERIAL RESPONSE OVERALL
TEETH QUANTITY 27
TOOTH FORM STANDARD
PRESSURE ANGLE 20.0000 DEGREES
STYLE DESIGNATOR 4 PROTRUDING HUBS
PITCH DIAMETER 0.5625 INCHES NOMINAL
NOMINAL OUTSIDE DIAMETER 0.603 INCHES
FACE NOMINAL WIDTH 0.100 INCHES
NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END 1.375 INCHES FIRST END 0.075 INCHES SECOND END

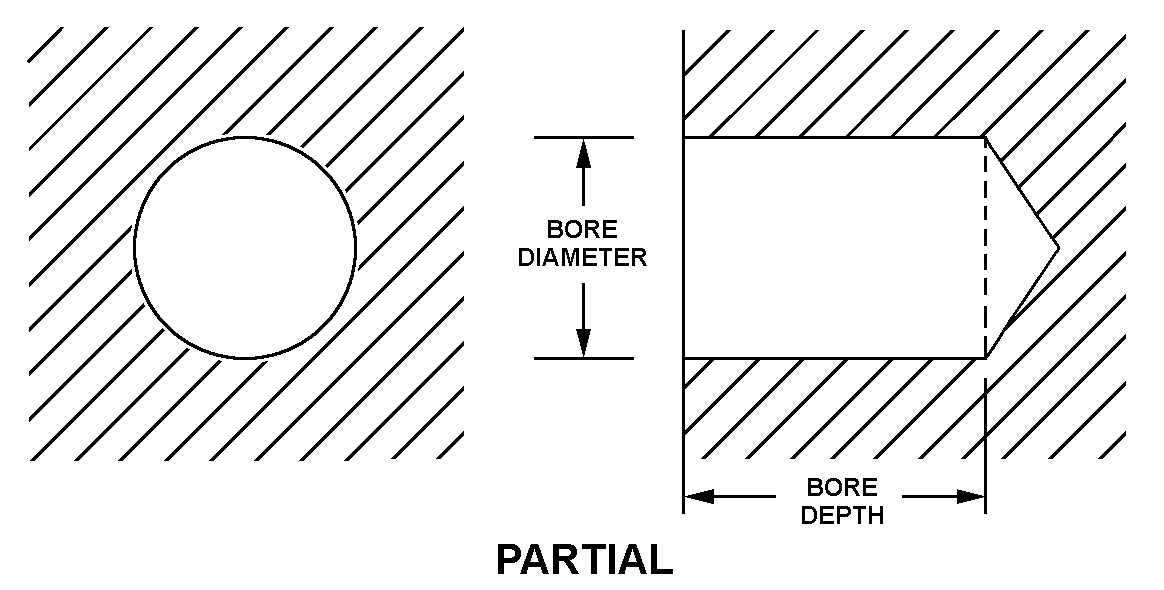

BORE STYLE 2 PARTIAL FIRST END
BORE NOMINAL DIAMETER 0.187 INCHES BOTH ENDS
BORE NOMINAL DEPTH 0.719 INCHES FIRST END
HUB STYLE DESIGNATOR 1 PLAIN BOTH ENDS
HUB NOMINAL DIAMETER 0.250 INCHES BOTH ENDS
BODY STYLE 1 PLAIN, SOLID
