Product Details | GEAR CLUSTER
3020-01-128-5883 A cylindrical item having a full 360 degree (6.282 radians) complement of teeth on two or more surfaces. It may be a one-piece casting or composed of two or more separate items firmly held together by welding, rivets, pins, or the like, to form a single unit. It is designed to mount on a shaft. For items consisting of a shaft with an integral complement(s) or gear teeth, see GEARSHAFT (as modified). Excludes GEAR SUBASSEMBLY, SPEED DECREASER.
Part Alternates: 10106681 , 2040858, 20408581, 2040858-1, 3020-01-128-5883, 01-128-5883, 3020011285883, 011285883
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 25 MAR 1982 | 01-128-5883 | 36636 ( GEAR CLUSTER ) |
Drawings & Photos | NSN 3020-01-128-5883
Demand History | NSN 3020-01-128-5883
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-128-5883 | 2008-08-228 | 12 | DIBBS |
| 3020-01-128-5883 | 2007-12-338 | 12 | DIBBS |
| 3020-01-128-5883 | 2007-07-205 | 12 | DIBBS |
| 3020-01-128-5883 | 2007-06-159 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-128-5883
Related Products | NSN 3020-01-128-5883
Technical Data | NSN 3020-01-128-5883
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E9310 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6265 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CONSTRUCTION | SOLID |
| DESIGN TYPE | SPUR FIRST GEAR SPUR SECOND GEAR |
| NOMINAL OUTSIDE DIAMETER | 0.9539 INCHES FIRST GEAR 0.9075 INCHES SECOND GEAR |
| NOMINAL OVERALL LENGTH | 0.737 INCHES |

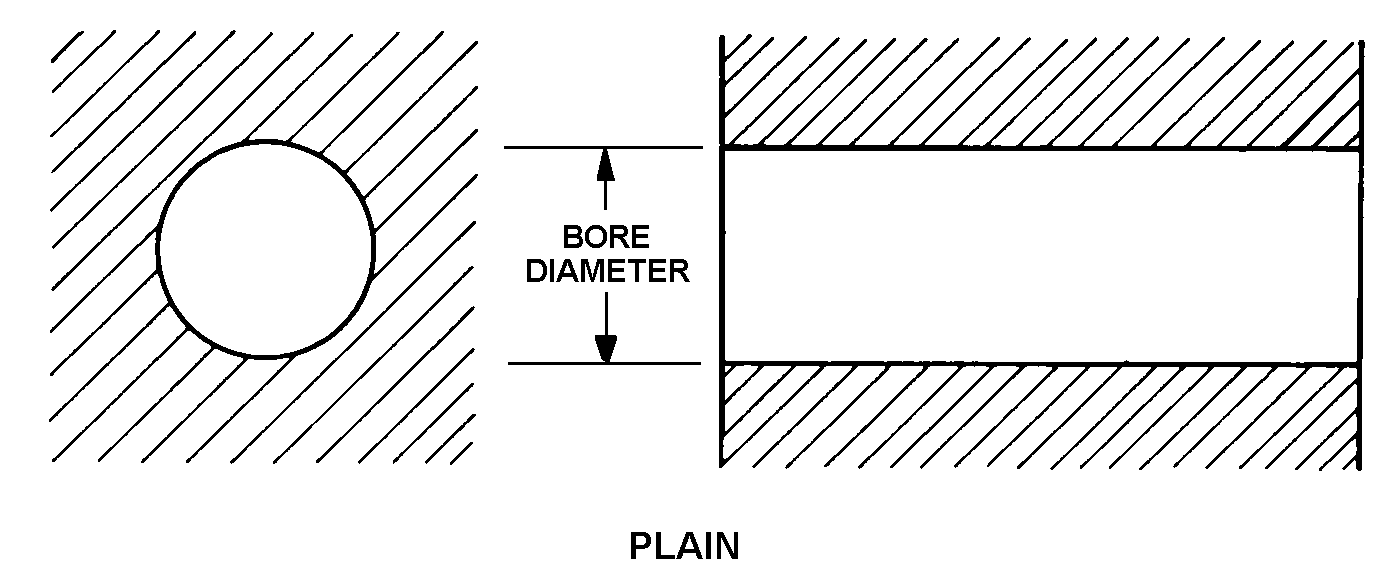

| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.210 INCHES BOTH ENDS |

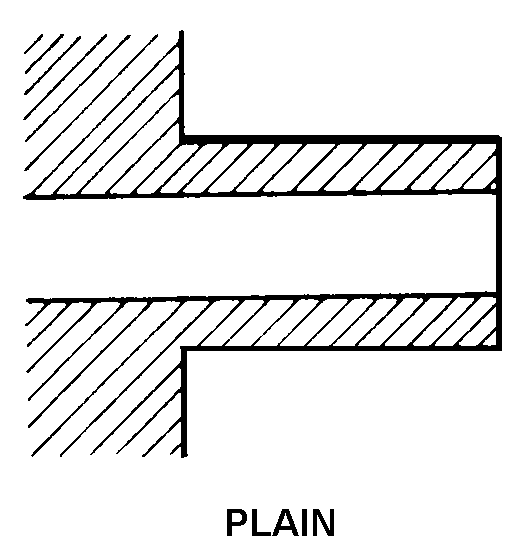

| HUB STYLE DESIGNATOR | 1 PLAIN SECOND END 1 PLAIN BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL LENGTH | 0.380 INCHES SECOND END 0.150 INCHES BETWEEN FIRST AND SECOND GEAR |
| HUB NOMINAL DIAMETER | 0.390 INCHES SECOND END 0.540 INCHES BETWEEN FIRST AND SECOND GEAR |
