NSN 3020-00-679-6944 10863171, 6754834, 897315R1
Product Details | SPUR GEAR
3020-00-679-6944 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 10863171, 6754834, 897315R1, 3020-00-679-6944, 00-679-6944, 2520006796944, 3020006796944 , 006796944
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-679-6944 | 05466 ( GEAR, SPUR ) |

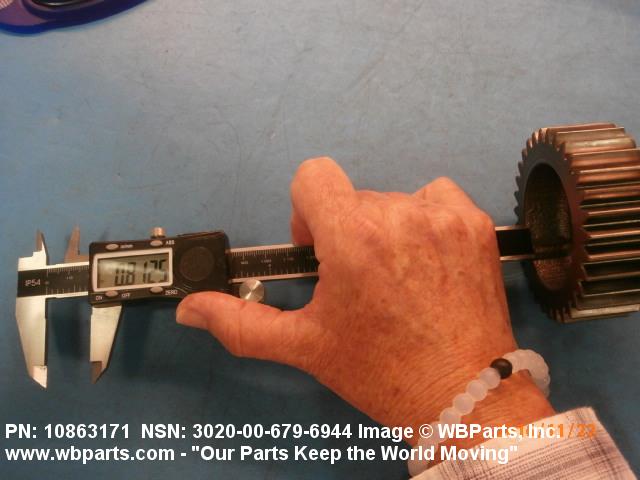

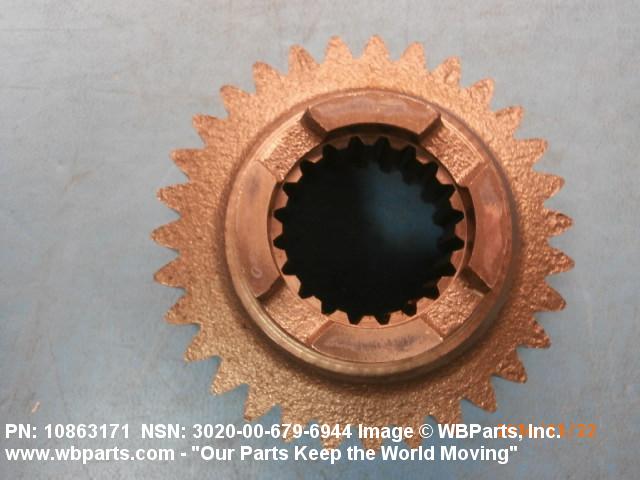

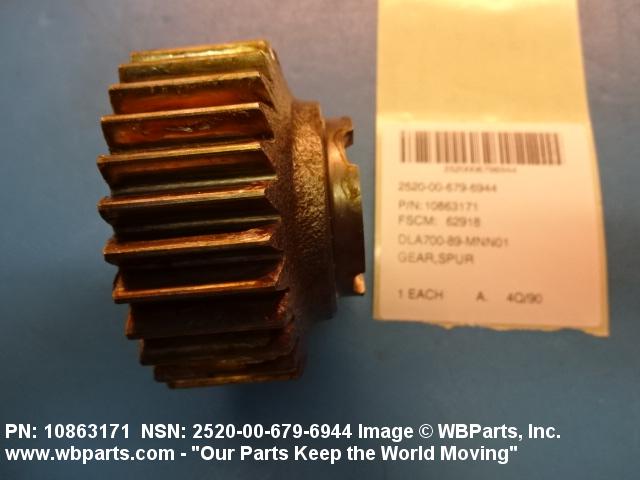

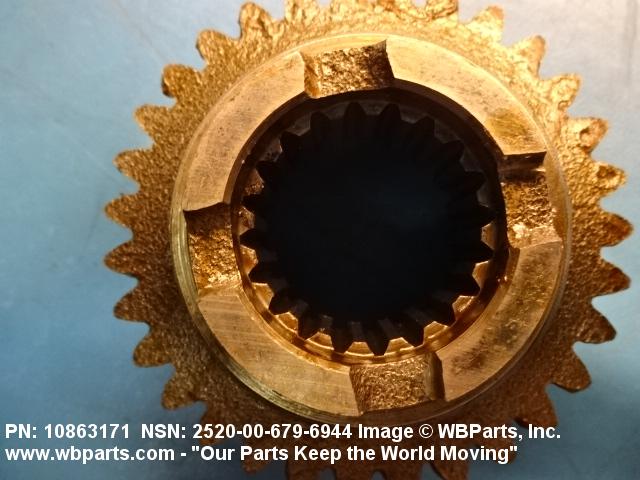

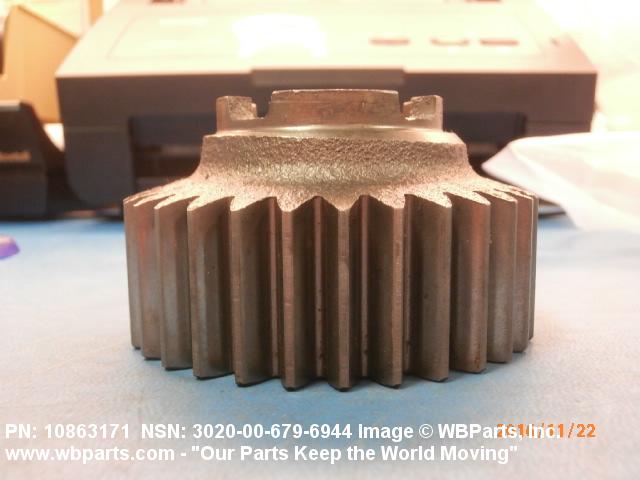

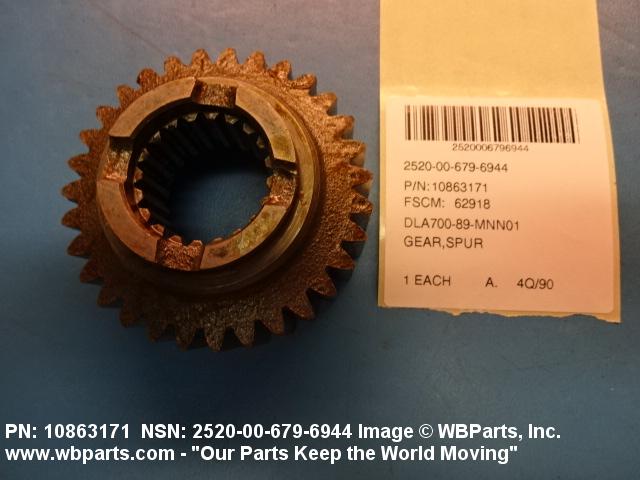

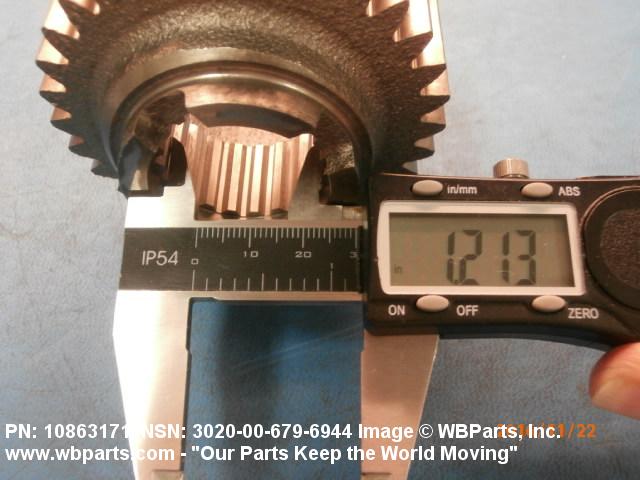

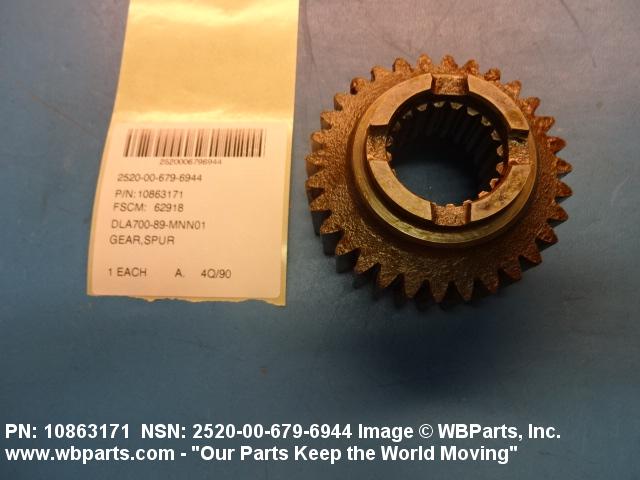

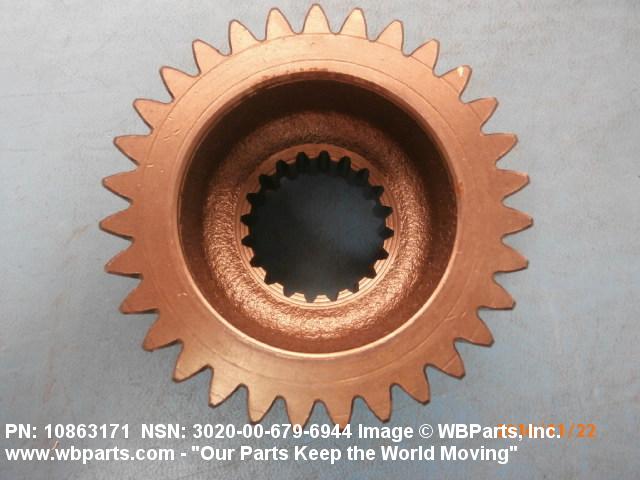

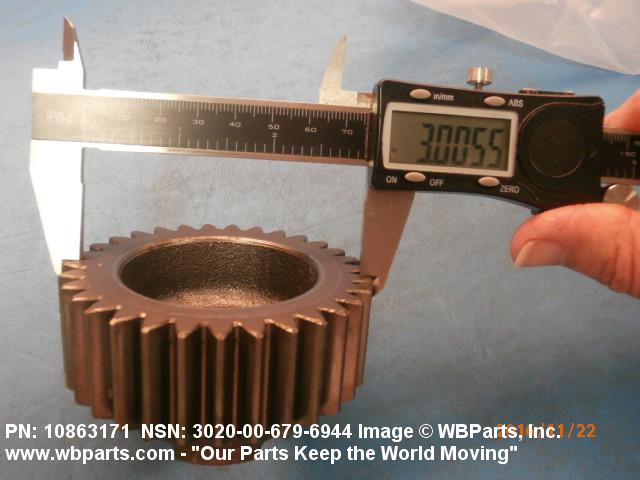

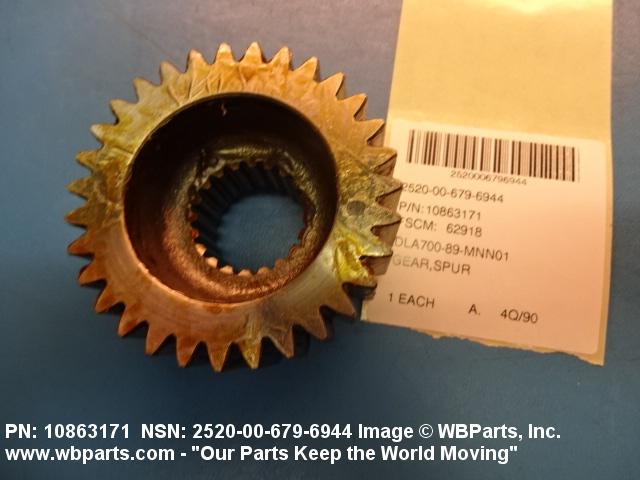

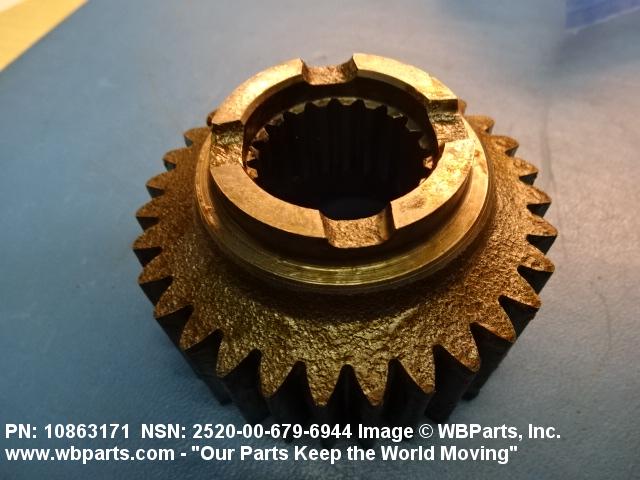

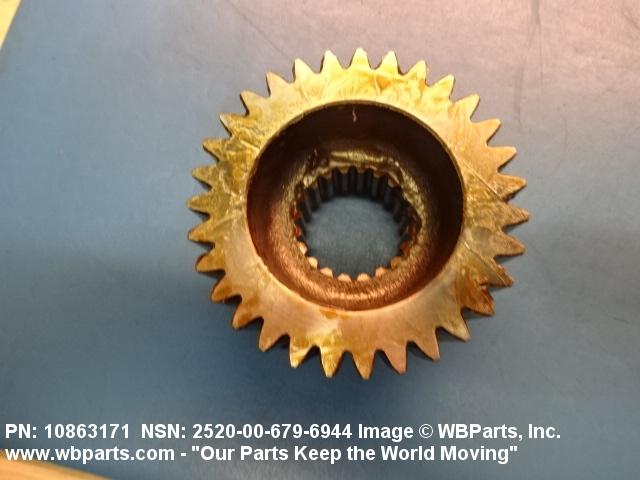

Drawings & Photos | NSN 3020-00-679-6944
Demand History | NSN 3020-00-679-6944
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6754834 | 2023-11-324 | 8 | DIBBS |
| 6754834 | 2023-11-311 | 8 | DIBBS |
| 6754834 | 2023-10-291 | 7 | DIBBS |
| 6754834 | 2021-04-111 | 2 | DIBBS |
| 3020-00-679-6944 | 2019-02-37 | 8 | United States |
| 6754834 | 2019-01-06 | 8 | DIBBS |
| 3020-00-679-6944 | 2018-09-255 | 10 | United States |
| 3020-00-679-6944 | 2018-08-242 | 7 | United States |
| 3020-00-679-6944 | 2018-08-228 | 10 | DIBBS |
| 3020-00-679-6944 | 2018-08-227 | 7 | United States |
| 3020-00-679-6944 | 2018-04-102 | 15 | United States |
| 3020-00-679-6944 | 2018-01-15 | 10 | United States |
| 3020-00-679-6944 | 2018-01-08 | 7 | DIBBS |
| 3020-00-679-6944 | 2017-12-363 | 10 | DIBBS |
| 3020-00-679-6944 | 2017-12-363 | 7 | DIBBS |
| 3020-00-679-6944 | 2017-12-361 | 7 | DIBBS |
| 3020-00-679-6944 | 2017-12-352 | 7 | DIBBS |
| 3020-00-679-6944 | 2017-12-344 | 10 | DIBBS |
| 3020-00-679-6944 | 2017-09-256 | 10 | United States |
| 3020-00-679-6944 | 2017-09-256 | 20 | United States |
| 3020-00-679-6944 | 2017-09-256 | 10 | United States |
| 3020-00-679-6944 | 2017-09-256 | 20 | United States |
| 3020-00-679-6944 | 2017-08-235 | 10 | DIBBS |
| 3020-00-679-6944 | 2017-08-235 | 20 | DIBBS |
| 3020-00-679-6944 | 2017-07-205 | 30 | DIBBS |
| 3020-00-679-6944 | 2017-07-194 | 30 | DIBBS |
| 3020-00-679-6944 | 2017-05-138 | 20 | DIBBS |
| 3020-00-679-6944 | 2017-05-127 | 20 | DIBBS |
| 3020-00-679-6944 | 2017-03-64 | 20 | DIBBS |
| 3020-00-679-6944 | 2017-02-47 | 10 | DIBBS |
| 3020-00-679-6944 | 2017-01-09 | 10 | DIBBS |
| 3020-00-679-6944 | 2016-12-361 | 5 | DIBBS |
| 3020-00-679-6944 | 2016-12-361 | 10 | DIBBS |
| 3020-00-679-6944 | 2016-11-319 | 10 | United States |
| 3020-00-679-6944 | 2011-08-236 | 7 | DIBBS |
| 3020-00-679-6944 | 2011-06-174 | 8 | DIBBS |
| 3020-00-679-6944 | 2011-05-146 | 30 | DIBBS |
| 3020-00-679-6944 | 2010-12-340 | 7 | DIBBS |
| 3020-00-679-6944 | 2010-10-289 | 6 | DIBBS |
| 3020-00-679-6944 | 2009-10-282 | 7 | DIBBS |
| 3020-00-679-6944 | 2009-09-267 | 25 | DIBBS |
| 3020-00-679-6944 | 2009-07-204 | 1 | DIBBS |
| 3020-00-679-6944 | 2007-10-286 | 4 | DIBBS |
| 3020-00-679-6944 | 2007-04-107 | 4 | DIBBS |
Cross Reference | NSN 3020-00-679-6944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10863171 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 2520006796944 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 3020006796944 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6754834 | 6H244 | W. W. WILLIAMS MIDWEST, INC. DBA WILLIAMS DISTRIBUTION |
| 6754834 | 73342 | ALLISON TRANSMISSION, INC. |
| 897315R1 | 31007 | NAVISTAR INTL CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-679-6944
Related Products | NSN 3020-00-679-6944
Technical Data | NSN 3020-00-679-6944
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TEETH QUANTITY | 31 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 8 PROTRUDING HUB, RECESSED BODY |
| PITCH DIAMETER | 3.1000 INCHES NOMINAL |

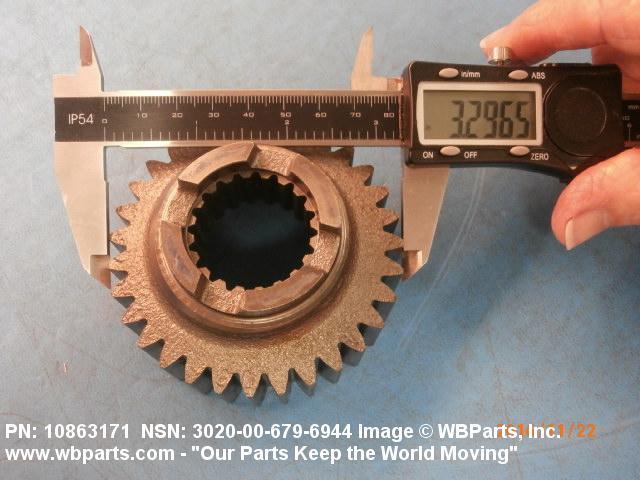

| NOMINAL OUTSIDE DIAMETER | 3.300 INCHES |

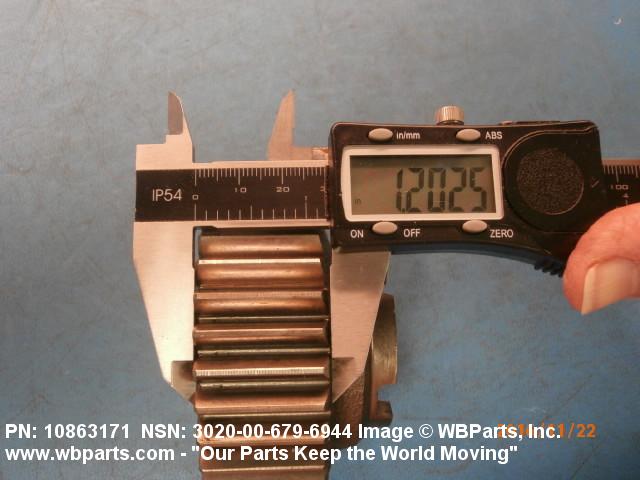

| FACE NOMINAL WIDTH | 1.225 INCHES |

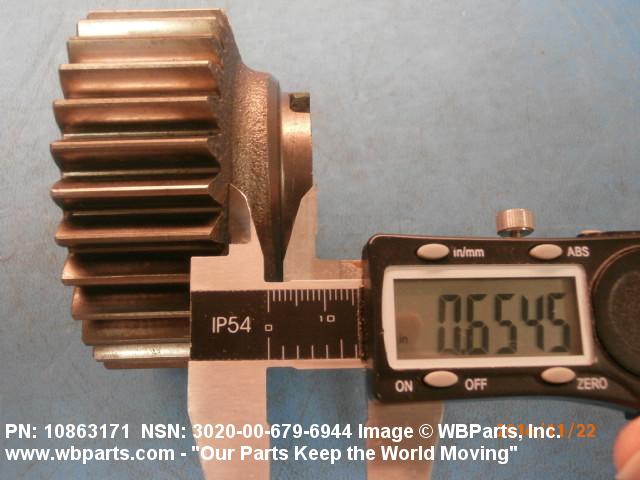

| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.650 INCHES FIRST END |
| BODY RECESS NOMINAL DEPTH | 0.813 INCHES SECOND END |
| BORE STYLE | 6 INVOLUTE SPLINE BOTH ENDS |

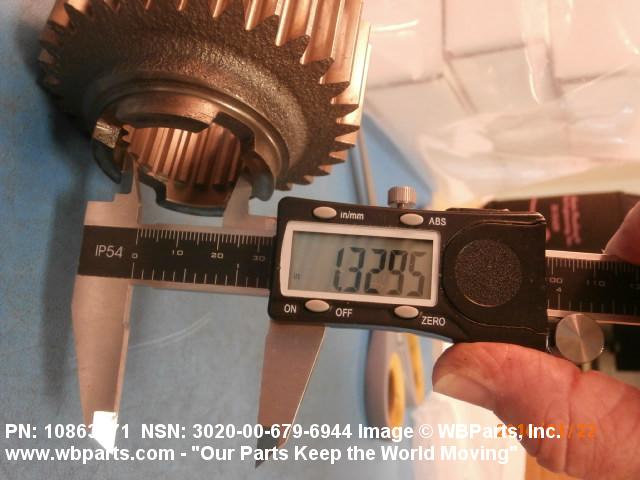

| BORE NOMINAL DIAMETER | 1.329 INCHES BOTH ENDS |
| SPLINE QUANTITY | 20 BOTH ENDS |
| SPLINE PITCH DIAMETER | 1.2500 INCHES NOMINAL BOTH ENDS |
| HUB STYLE DESIGNATOR | 4A 1 STEP FIRST END |

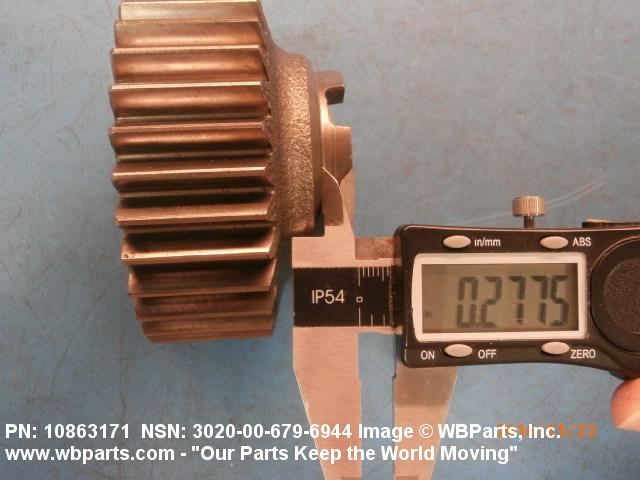

| END NOMINAL LENGTH | 0.275 INCHES FIRST END |

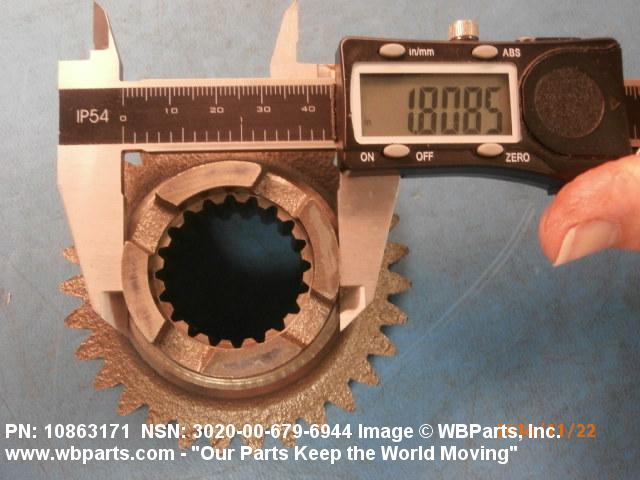

| END NOMINAL DIAMETER | 1.795 INCHES FIRST END |
| FIRST STEP NOMINAL LENGTH | 0.375 INCHES FIRST END |

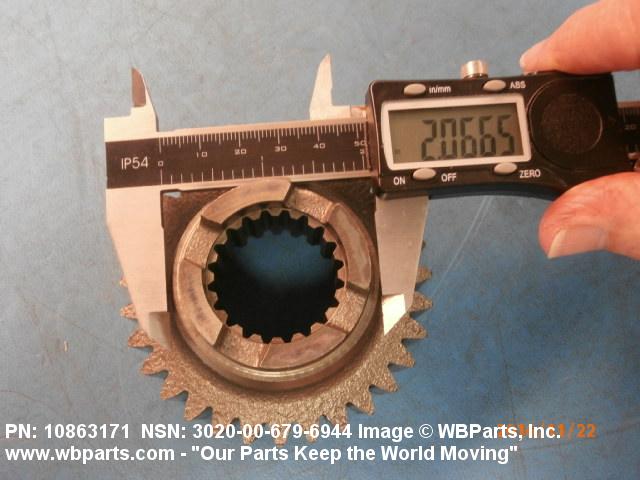

| FIRST STEP NOMINAL DIAMETER | 2.063 INCHES FIRST END |
| BODY STYLE | 3B WEBBED, OFFSET, SOLID |
| FEATURES PROVIDED | CASEHARDENED |
Restrictions/Controls & Freight Information | NSN 3020-00-679-6944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-679-6944
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
