Product Details | SPUR GEAR
3020-00-898-6801 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 8587378, 3020-00-898-6801, 00-898-6801, 3020008986801, 008986801
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-898-6801 | 05466 ( GEAR, SPUR ) |

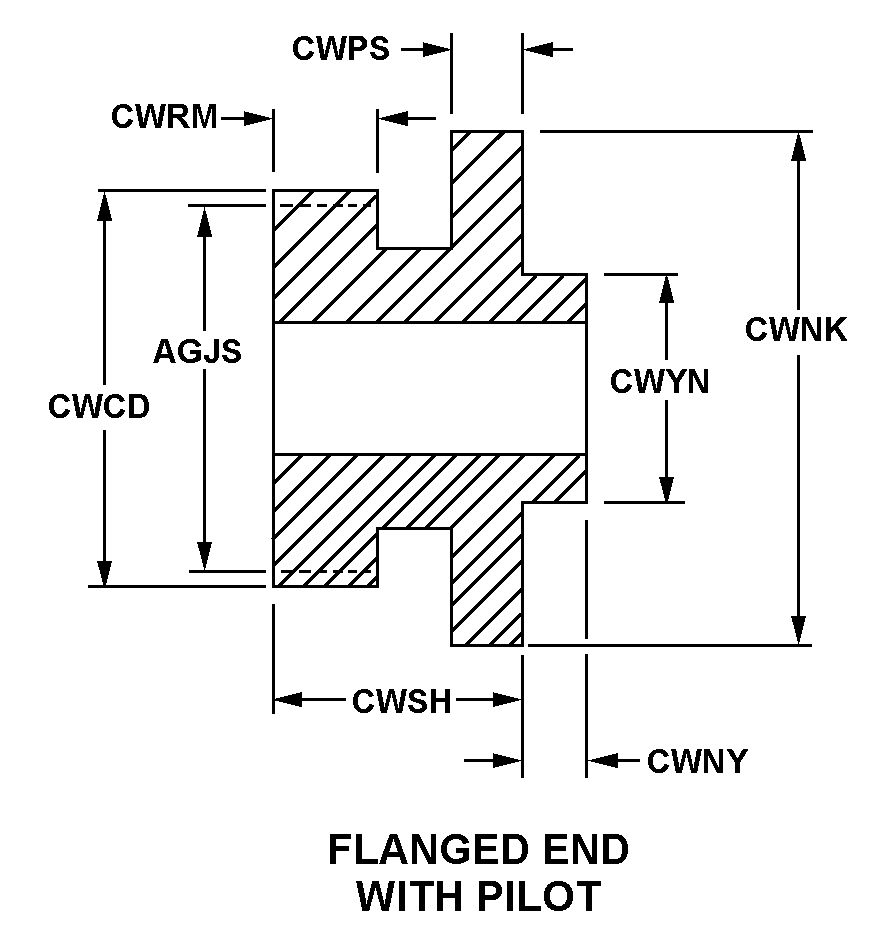

Drawings & Photos | NSN 3020-00-898-6801
Demand History | NSN 3020-00-898-6801
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-898-6801 | 2011-10-287 | 1 | DIBBS |
| 3020-00-898-6801 | 2011-01-26 | 3 | DIBBS |
| 3020-00-898-6801 | 2010-01-29 | 1 | DIBBS |
| 3020-00-898-6801 | 2009-08-230 | 3 | DIBBS |
| 3020-00-898-6801 | 2009-02-55 | 5 | DIBBS |
Cross Reference | NSN 3020-00-898-6801
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8587378 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-898-6801
Related Products | NSN 3020-00-898-6801
Technical Data | NSN 3020-00-898-6801
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CL 416,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 48 |
| STYLE DESIGNATOR | 12 FLANGED END WITH PILOT |
| PITCH DIAMETER | 1.0000 INCHES NOMINAL |
| FLANGE NOMINAL DIAMETER | 1.437 INCHES |
| NOMINAL OUTSIDE DIAMETER | 1.040 INCHES |
| PILOT NOMINAL LENGTH | 0.239 INCHES |
| FLANGE NOMINAL THICKNESS | 0.125 INCHES |
| FACE NOMINAL WIDTH | 0.130 INCHES |
| NOMINAL DISTANCE BETWEEN OUTER BODY FACE AND INNER FLANGE FACE | 0.230 INCHES |
| PILOT NOMINAL DIAMETER | 0.999 INCHES |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.700 INCHES FIRST END 0.830 INCHES SECOND END |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END |
| HUB NOMINAL DIAMETER | 0.999 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 3 COUNTERSUNK AXIALLY THROUGH FLANGE |
| MOUNTING HOLE NOMINAL DIAMETER | 0.098 INCHES AXIALLY THROUGH FLANGE |
| BOLT HOLE CIRCLE NOMINAL DIAMETER | 1.067 INCHES AXIALLY THROUGH FLANGE |
Restrictions/Controls & Freight Information | NSN 3020-00-898-6801
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-898-6801
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
