Product Details | BEVEL GEAR
3020-00-898-6878 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 204040701003, 204-040-701-003, 2040407013, 204-040-701-3, 3020-00-898-6878, 00-898-6878, 3020008986878, 008986878
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-898-6878 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-00-898-6878
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-898-6878
Technical Data | NSN 3020-00-898-6878
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E9310 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6260 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| TEETH TYPE | SPIRAL |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |

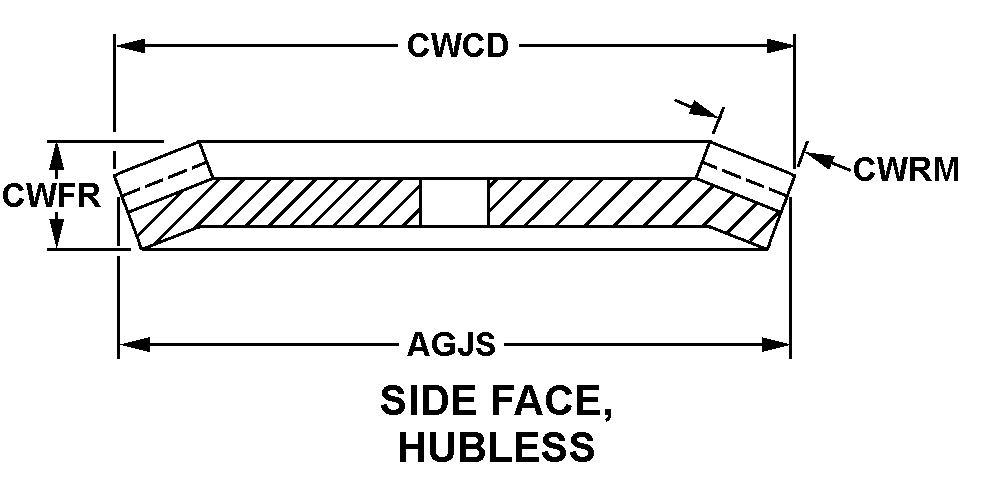

| STYLE DESIGNATOR | 32 SIDE FACE, HUBLESS |
| PITCH DIAMETER | 11.5010 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.205 INCHES |
| FACE NOMINAL WIDTH | 1.500 INCHES |
| BODY RECESS NOMINAL DEPTH | 0.4750 INCHES FIRST END 0.1600 INCHES SECOND END |
| COUNTERBORE NOMINAL DIAMETER | 8.1000 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| BOLT HOLE CIRCLE NOMINAL DIAMETER | 8.750 INCHES AXIALLY THROUGH BODY, FIRST END |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 204-040-701-3 |
