Product Details | GROOVE PULLEY
3020-00-838-9375 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 1821449, 3020-00-838-9375, 00-838-9375, 3020008389375, 008389375
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 14 DEC 1966 | 00-838-9375 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-838-9375
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-838-9375
Related Products | NSN 3020-00-838-9375
Technical Data | NSN 3020-00-838-9375
| Characteristic | Specifications |
|---|---|

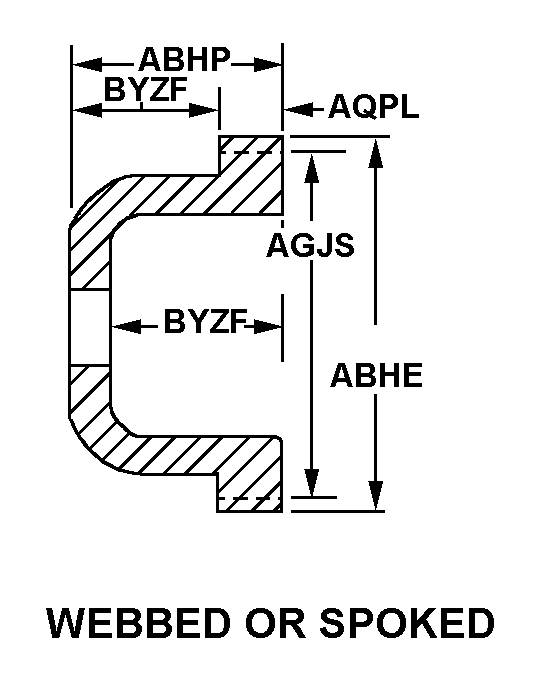

| STYLE DESIGNATOR | A18 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 6.500 INCHES NOMINAL |
| OVERALL LENGTH | 2.312 INCHES NOMINAL |
| PITCH DIAMETER | 6.375 INCHES NOMINAL |
| FACE WIDTH | 0.700 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.612 INCHES NOMINAL AA END AND 2.234 INCHES NOMINAL BB END |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL OVERALL |
| SURFACE TREATMENT | PAINTED |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.500 INCHES NOMINAL |
| GROOVE WIDTH | 0.375 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 36.0 |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 2.250 INCHES NOMINAL |
| BORE LENGTH | 0.078 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING LOCATION | AA END |
| SECURING HOLE QUANTITY | 5 |
| HOLE LOCATION | 60 DEGS APART ON 2.812 IN. CIRCLE |
| DRILLED HOLE DIAMETER | 0.344 INCHES NOMINAL |
