Product Details | GROOVE PULLEY
3020-00-693-0988 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 8379764, 3020-00-693-0988, 00-693-0988, 3020006930988, 006930988
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-693-0988 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-693-0988
Cross Reference | NSN 3020-00-693-0988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8379764 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-693-0988
Technical Data | NSN 3020-00-693-0988
| Characteristic | Specifications |
|---|---|

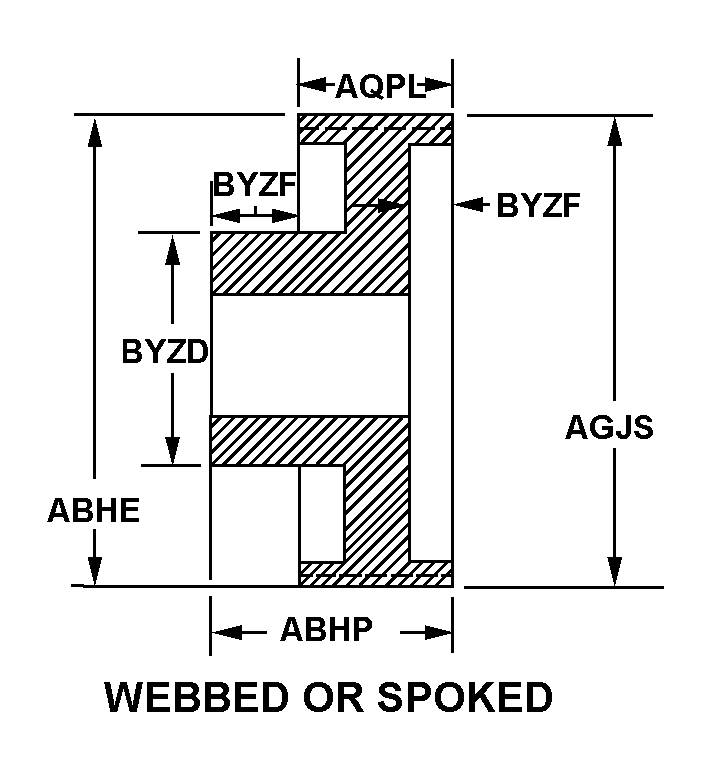

| STYLE DESIGNATOR | A14 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 11.500 INCHES NOMINAL |
| OVERALL LENGTH | 2.688 INCHES NOMINAL |
| FACE WIDTH | 1.500 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 2.500 INCHES NOMINAL AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 1.188 INCHES NOMINAL BOTH ENDS |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | IRON, QQ-I-652-CANCELED OVERALL |
| GROOVE SHAPE | SQ |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.750 INCHES NOMINAL |
| GROOVE WIDTH | 1.125 INCHES NOMINAL |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 1.516 INCHES NOMINAL |
| BORE LENGTH | 2.188 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING METHOD | DRILLED HOLE |
| SECURING LOCATION | AA END |
| SECURING HOLE QUANTITY | 1 |
| HOLE LOCATION | 0.750 IN. FROM END OF HUB |
| DRILLED HOLE DIAMETER | 0.562 INCHES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8379764 |
