Product Details | SPUR GEAR
3020-00-283-2232 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 117D2702, 3020-00-283-2232, 00-283-2232, 3020002832232, 002832232
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 25 AUG 1973 | 00-283-2232 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-283-2232
Demand History | NSN 3020-00-283-2232
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-283-2232 | 2020-06-176 | 2 | SA |
Cross Reference | NSN 3020-00-283-2232
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117D2702 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-283-2232
Related Products | NSN 3020-00-283-2232
Technical Data | NSN 3020-00-283-2232
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 35.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 42 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |

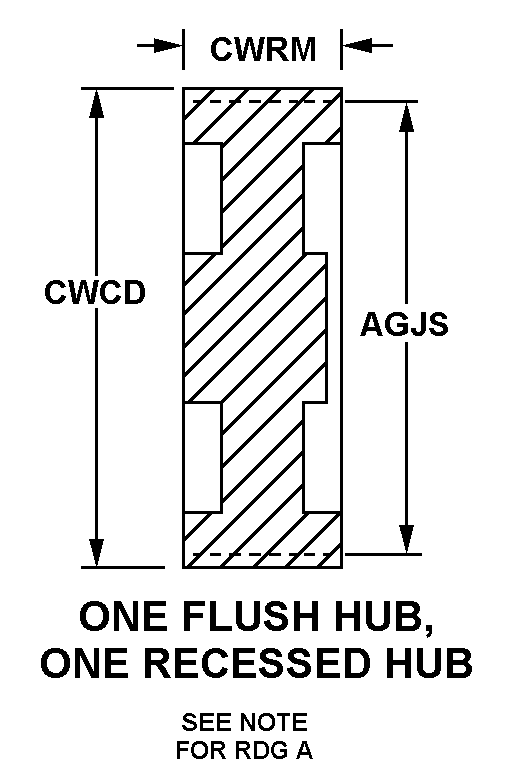

| STYLE DESIGNATOR | 10 ONE FLUSH HUB, ONE RECESSED HUB |
| PITCH DIAMETER | 3.1637 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 3.307 INCHES |
| FACE NOMINAL WIDTH | 0.250 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND RECESSED HUB END | 0.203 INCHES SECOND END |
| BORE STYLE | 6 INVOLUTE SPLINE BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.625 INCHES BOTH ENDS |
| SPLINE QUANTITY | 19 BOTH ENDS |
| SPLINE PITCH DIAMETER | 0.5625 INCHES NOMINAL BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 0.875 INCHES FIRST END 0.750 INCHES SECOND END |
| BODY STYLE | 4A WEBBED, WITH LIGHTENING HOLES |
| MANUFACTURERS CODE | 05606 |
| DESIGN CONTROL REFERENCE | 117D2702 |
