NSN 3020-00-283-2235 117D2107, 00-283-2235, 002832235
Product Details | BEVEL GEAR
3020-00-283-2235 A gear in the form of a frustum of a cone, with straight, skewed, or curved teeth, cut on the external face. See also GEAR, ANTIBACKLASH, BEVEL.
Part Alternates: 117D2107, 3020-00-283-2235, 00-283-2235, 3020002832235, 002832235
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 25 AUG 1973 | 00-283-2235 | 05463 ( GEAR, BEVEL ) |
Drawings & Photos | NSN 3020-00-283-2235
Demand History | NSN 3020-00-283-2235
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 117D2107 | 2021-06-172 | 2 | DIBBS |
| 117D2107 | 2021-06-165 | 2 | DIBBS |
| 117D2107 | 2021-06-161 | 2 | DIBBS |
| 117D2107 | 2021-06-152 | 2 | DIBBS |
| 3020-00-283-2235 | 2010-09-253 | 2 | DIBBS |
| 3020-00-283-2235 | 2010-04-99 | 3 | DIBBS |
| 3020-00-283-2235 | 2009-11-306 | 2 | DIBBS |
| 3020-00-283-2235 | 2008-11-321 | 2 | DIBBS |
Cross Reference | NSN 3020-00-283-2235
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117D2107 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-283-2235
Related Products | NSN 3020-00-283-2235
Technical Data | NSN 3020-00-283-2235
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E9310 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624,TYPE 9310,COLD FINISHED FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 60.0 ROCKWELL C NOMINAL TEETH |
| TEETH QUANTITY | 25 |
| TEETH TYPE | STRAIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| PITCH ANGLE | 23.4082 DEGREES |

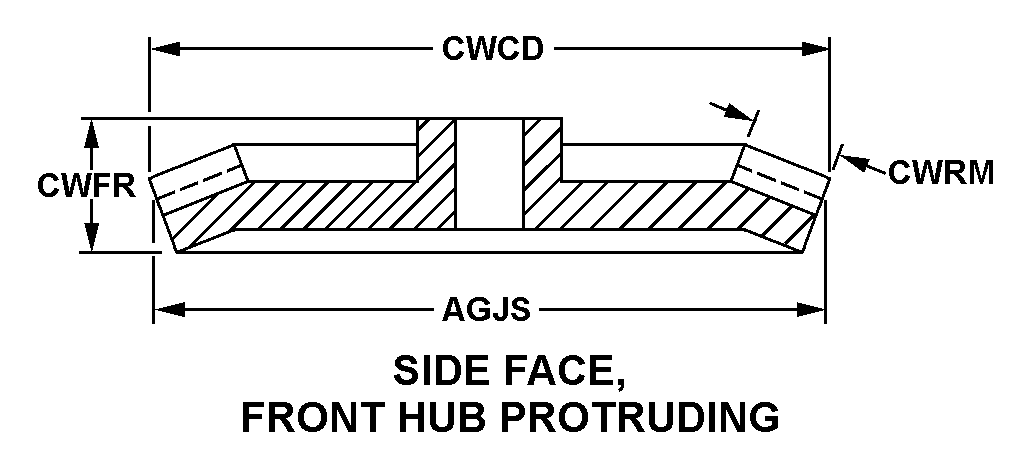

| STYLE DESIGNATOR | 35 SIDE FACE, FRONT HUB PROTRUDING |
| PITCH DIAMETER | 2.5000 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 0.910 INCHES |
| NOMINAL OUTSIDE DIAMETER | 2.716 INCHES |
| FACE NOMINAL WIDTH | 0.440 INCHES |
| BORE STYLE | 6 INVOLUTE SPLINE BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.687 INCHES BOTH ENDS |
| SPLINE QUANTITY | 23 BOTH ENDS |
| SPLINE PITCH DIAMETER | 0.7188 INCHES NOMINAL BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN SECOND END |
| HUB NOMINAL DIAMETER | 0.930 INCHES SECOND END |
| BODY STYLE | 3B WEBBED, OFFSET, SOLID |
| MANUFACTURERS CODE | 05606 |
| DESIGN CONTROL REFERENCE | 117D2107 |
Restrictions/Controls & Freight Information | NSN 3020-00-283-2235
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121870 | GEAR/SPEED INCREASING/REDUCING MACH |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-283-2235
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
