NSN 3020-00-141-8959 BG50D-D-5/8, BG50DD58, BK50H
Product Details | GROOVE PULLEY
3020-00-141-8959 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: BG50D-D-5/8, BG50DD58, BK50H, BK50H-H-5/8, BK50HH58, H10004, H1000-4, Q95151008, Q9515-1008, 3020-00-141-8959, 00-141-8959, 3020001418959, 001418959
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-141-8959 | 08109 ( PULLEY, GROOVE ) |
Drawings & Photos | NSN 3020-00-141-8959
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-141-8959
Related Products | NSN 3020-00-141-8959
Technical Data | NSN 3020-00-141-8959
| Characteristic | Specifications |
|---|---|

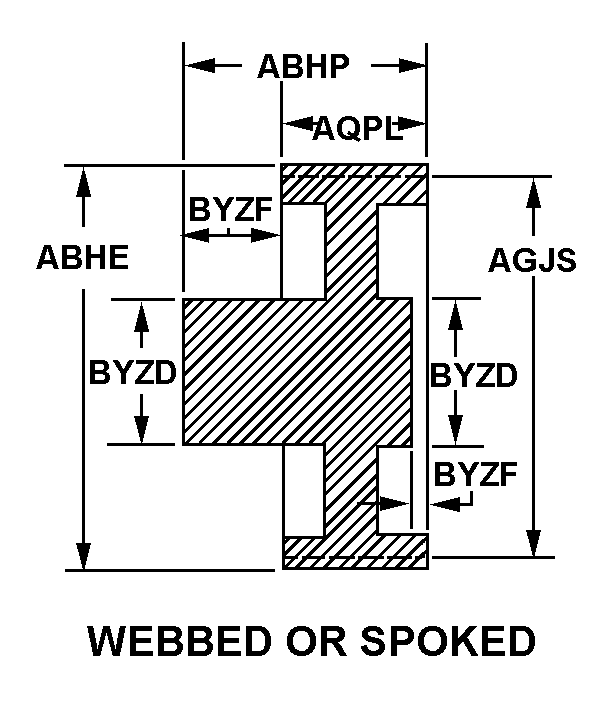

| STYLE DESIGNATOR | A11 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 4.760 INCHES NOMINAL |
| OVERALL LENGTH | 1.313 INCHES NOMINAL |
| PITCH DIAMETER | 4.000 INCHES NOMINAL |
| FACE WIDTH | 0.875 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 1.750 INCHES NOMINAL AA END AND 2.000 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.438 INCHES NOMINAL AA END AND 0.125 INCHES NOMINAL BOTH ENDS |
| DESIGN FORM | SPOKED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | STEEL OVERALL |
| GROOVE SHAPE | V |
| GROOVE QUANTITY | 1 |
| GROOVE DEPTH | 0.688 INCHES NOMINAL |
| GROOVE WIDTH | 0.625 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 36.0 |
| STANDARD V-BELT SECTION DESIGNATION FOR WHICH DESIGNED | A |
| BORE FEATURE | INCLUDED |
| BEARINGS | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.625 INCHES NOMINAL |
| BORE LENGTH | 1.188 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |
| KEYWAY WIDTH | 0.188 INCHES NOMINAL |
| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.406 INCHES NOMINAL |
| PROTRUDING HUB CHARACTERISTIC | STEPPED |
| FIRST STEP FACE LARGEST DIAMETER AND LOCATION | 2.000 INCHES NOMINAL AA END |
| FIRST STEP LENGTH AND LOCATION | 0.469 INCHES NOMINAL AA END |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SECURING METHOD | THREADED HOLE |
| SECURING LOCATION | AA END |
| SECURING HOLE QUANTITY | 1 |
| THREAD SIZE | 5/8 - 18 |
| HOLE LOCATION | LOCATED ON TOP OF KEYWAY,1/4 IN. FROM AA HUB END |
| FURNISHED ITEMS AND QUANTITY | 1 SETSCREW |
| SPECIAL FEATURES | N/A |
